Dimensions, Planning and Architectural Guidelines

Badminton court design is more than drawing a 13.40 m × 6.10 m rectangle. A successful badminton facility must coordinate the playing court with safety clearances, clear height, flooring, lighting, ventilation, structural systems, circulation, accessibility, equipment storage, changing facilities and, where applicable, spectator areas.

For architects, the important distinction is between the official playing dimensions and the total architectural space required to operate the facility safely and effectively.

A standard doubles badminton court is 13.40 m long and 6.10 m wide, while singles play uses the same length with an effective playing width of 5.18 m. Court lines are 40 mm wide, and the net is 1.55 m high at the posts and 1.524 m at the centre. These dimensions form the starting point for architectural planning.

However, the building envelope must extend well beyond these painted lines. Sports-facility guidance published by the Sports Authority of India provides additional planning dimensions for recreational, regional and national/international levels, while BWF competition requirements become substantially more demanding for major international events.

What Is Badminton Court Design?

Badminton court design is the architectural planning of a space intended for badminton play, including the regulation court, surrounding clearances, playing-surface system, net and posts, lighting, ceiling height, ventilation, background surfaces, circulation and supporting facilities.

In simple terms:

Badminton court design combines the standardized geometry of the game with the architectural requirements needed to create a safe, functional and visually controlled indoor sports environment.

A court that has correct dimensions but insufficient clear space, excessive air movement, glare, inadequate ceiling height or unsuitable flooring cannot be considered a well-resolved sports facility.

1. History of Badminton and Its Influence on Court Design

The history of modern badminton is closely associated with India and England.

The Badminton World Federation notes that earlier forms of battledore and shuttlecock existed in Europe and Asia, while the game known as poona, developed in India, was considerably closer to modern badminton. Rules for poona were written in 1873. The game subsequently developed in England, where Badminton House in Gloucestershire became associated with the name of the sport.

The International Badminton Federation was established in 1934 and was later renamed the Badminton World Federation (BWF).

The standardization of court geometry became important as competitive badminton expanded internationally. Today, the court dimensions and equipment requirements provide a common basis for designing facilities around the world.

Badminton became a full Olympic sport at the Barcelona 1992 Olympic Games.

Architectural lesson from the history

The development of badminton from an informal game into an international competitive sport demonstrates why standardization is fundamental to sports architecture.

The architect is not designing an arbitrary rectangular room. The dimensions, sightlines, playing surface, ceiling, lighting and environmental conditions must support a highly specific movement pattern.

2. Standard Badminton Court Dimensions

The basic doubles badminton court is:

Length: 13.40 m
Width: 6.10 m
Approximate length: 44 ft
Approximate doubles width: 20 ft
Singles playing width: 5.18 m
Court area for doubles: approximately 81.7 m²
Line width: 40 mm

The official court geometry is established through the Laws of Badminton. SAI’s field-of-play documentation reproduces the BWF court geometry and identifies 13.4 m × 6.1 m as the doubles court dimensions.

Badminton court dimensions at a glance

Element	Standard dimension
Court length	13.40 m
Doubles width	6.10 m
Singles width	5.18 m
Approx. doubles area	81.7 m²
Court line width	40 mm
Net height at centre	1.524 m
Net height at posts	1.55 m
Net depth	760 mm
Net minimum width	6.10 m
Short service line from net	1.98 m
Doubles long service line from rear boundary	0.76 m

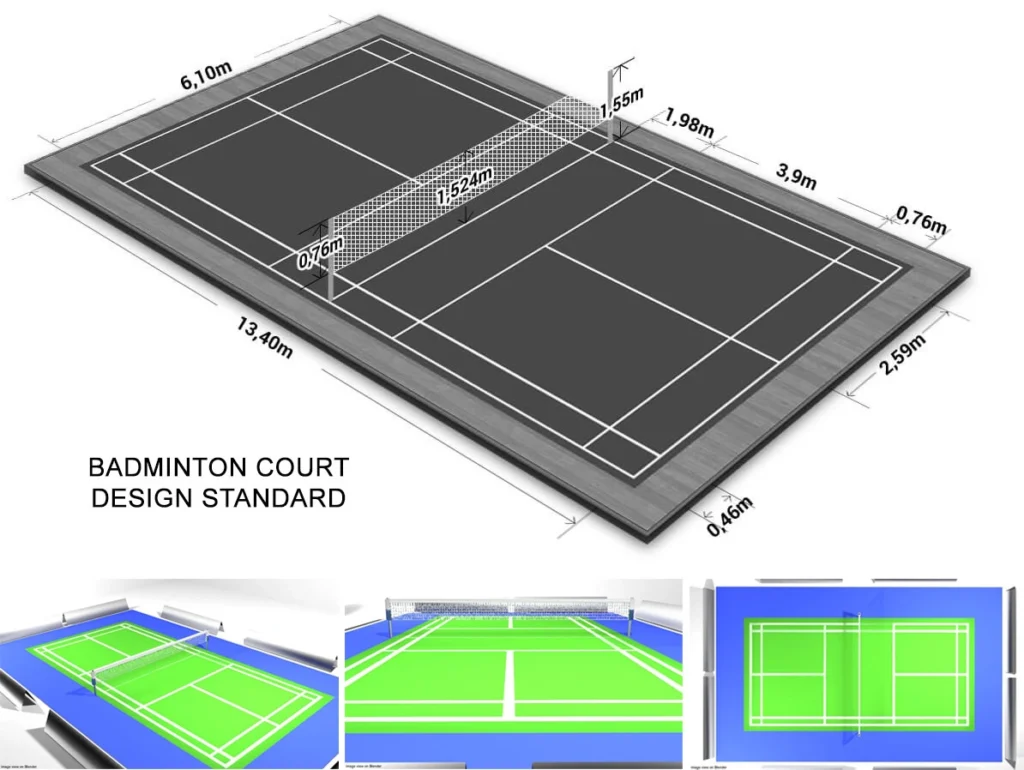

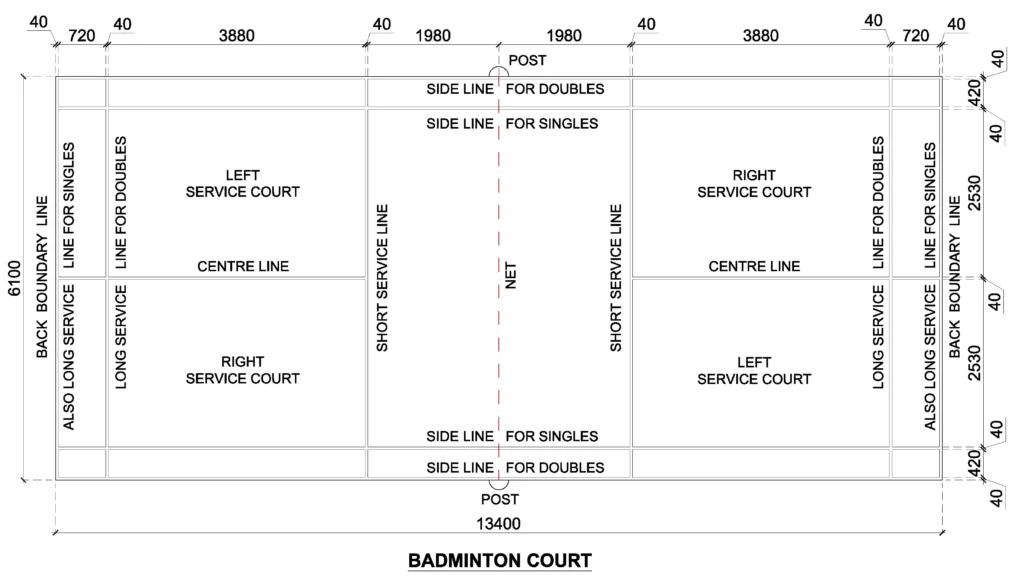

The court shown in the BWF diagram can be used for both singles and doubles; the difference is primarily established by the relevant boundary lines.

3. Singles vs Doubles Court

One of the most common misunderstandings in badminton planning is assuming that singles and doubles require completely different court rectangles.

The same full court is normally marked for both forms of play.

Singles

Singles uses the inner side lines, giving a playing width of approximately 5.18 m.

Doubles

Doubles uses the outer side lines, giving a playing width of 6.10 m.

The court length remains 13.40 m.

Feature	Singles	Doubles
Length	13.40 m	13.40 m
Playing width	5.18 m	6.10 m
Side lines	Inner	Outer
Court arrangement	Same court	Same court
Net position	Same	Same

For architectural planning, the 6.10 m doubles court width should normally be treated as the fundamental court module when designing a facility that accommodates both singles and doubles.

4. Badminton Court Markings

Court markings are not decorative elements. They define the playing geometry and therefore need accurate setting-out.

The BWF specification requires court lines to be 40 mm wide and easily distinguishable, preferably white or yellow. The lines form part of the areas they define.

Important markings include:

4.1 Doubles sidelines

The outer sidelines establish the full 6.10 m doubles playing width.

4.2 Singles sidelines

The inner sidelines establish the 5.18 m singles playing width.

4.3 Centre line

The centre line divides each service area into left and right service courts.

4.4 Short service line

The short service line is positioned approximately 1.98 m from the net.

4.5 Doubles long service line

The doubles long service line is located 0.76 m inside the rear boundary.

4.6 Back boundary line

The rear boundary defines the full length of the playing court.

5. Net and Post Design

The net is an important architectural and equipment element because its position establishes the central division of the playing space.

According to the BWF court-and-equipment specification:

Posts are 1.55 m high.
Posts are located on the doubles sidelines.
The net is at least 6.1 m wide.
Net depth is 760 mm.
Net height is 1.524 m at the centre.
Net height is 1.55 m at the doubles sidelines.
The net mesh is specified between 15 mm and 20 mm.
The net should not have gaps between its ends and the posts.

For architectural coordination, the post locations should be incorporated into the court-setting-out drawings rather than added after the flooring and markings have been completed.

6. Space Required Around a Badminton Court

The marked court is not the same thing as the architectural footprint of the court.

Players need space beyond the boundary lines for movement, recovery, safety and maintenance.

For international-standard facilities, BWF-derived guidance recommends approximately 2 m of clear space surrounding the outer court lines, and the same separation is recommended between courts placed side by side.

SAI’s published field-of-play guidance provides different overall planning dimensions depending on the level of facility. Its table gives, for example, an overall minimum area of approximately 18 m × 10.5 m for a single national/international-level court, compared with smaller recreational/club provisions.

Example spatial envelope

A useful architectural approach is to distinguish three layers:

Layer 1 — Playing court

13.40 m × 6.10 m

Layer 2 — Safety / run-off zone

Clear space around the court.

Layer 3 — Building zone

Circulation, structure, lighting, services, spectator areas, equipment storage and other functions.

This distinction prevents one of the most frequent planning mistakes: drawing several 13.4 m × 6.1 m rectangles and assuming the hall is large enough.

7. Clear Height of a Badminton Hall

Clear height is one of the most important requirements in badminton architecture because the shuttlecock travels through a substantial vertical volume.

A low ceiling, beam, lighting fitting, duct or other obstruction can interfere with play.

SAI documentation identifies different height levels for recreational/club, county/regional and national/international facilities. Its published table gives approximately:

7.6 m minimum height over the court for recreational/club level
9.1 m for county/regional and national/international planning categories in the SAI table.

For BWF international competition, the requirement becomes more stringent. BWF major-event documentation requires a 12 m clear height above the complete playing area, while other international-event guidance identifies 9 m as a minimum and 12 m as desirable.

Architectural interpretation

The designer should not merely check the floor-to-ceiling height.

The critical dimension is:

Finished floor level to the underside of the lowest obstruction above the playing area.

Therefore, beams, roof trusses, lighting, ducts, acoustic panels, sprinkler systems and other services must all be coordinated within the building section.

8. Badminton Hall Planning

A badminton hall may contain one court or multiple courts depending on its function.

Typical facility types include:

Residential/community court
School or college court
Recreation centre
Commercial badminton academy
Sports club
Institutional sports complex
Regional training centre
National training facility
International competition venue

The architectural requirements increase as the level of competition increases.

Facility hierarchy

Facility type	Main priority
Residential/community	Compactness and basic safety
School	Safety, durability and supervision
College/institution	Multipurpose use and circulation
Commercial academy	Court efficiency and player turnover
Sports club	Player comfort and ancillary facilities
Training centre	High-quality playing environment
Competition venue	International standards, officials, spectators and media

9. Four-Court Badminton Hall

A four-court configuration is particularly useful for schools, academies, clubs and institutional facilities.

SAI’s published planning material identifies a recreational/club single-court overall requirement of approximately 17.4 m × 9.1 m and larger dimensions for higher levels. It also provides a four-court sports-hall planning approach.

Archi-Monarch’s existing multipurpose sports-hall material also identifies a four-court hall as an important planning module.

Architectural considerations for four courts

Align structural bays with the court arrangement.
Avoid columns inside safety zones.
Coordinate roof trusses with clear height.
Provide appropriate separation between courts.
Use retractable or fixed division netting where appropriate.
Design lighting as a coordinated multi-court system.
Provide circulation outside the playing zones.
Locate equipment storage close to the hall but outside player circulation.
Provide controlled spectator access where required.

10. Multi-Court Planning

When multiple courts are arranged together, the court-to-court relationship becomes as important as the dimensions of an individual court.

The main planning considerations are:

10.1 Court orientation

Where possible, organize courts consistently rather than creating irregular orientations.

10.2 Structural grid

A structural grid should be developed around the court module so that columns do not project into playing or safety zones.

10.3 Division netting

Division netting can separate adjacent courts and help control shuttle movement.

10.4 Circulation

Players should be able to enter and leave the hall without crossing active playing zones.

10.5 Spectator areas

Spectators should be separated from players where the facility is intended for competition.

10.6 Lighting

Lighting should be coordinated for all courts rather than independently placed without considering player sightlines.

11. Badminton Court Flooring

Flooring is one of the most important elements of badminton architecture.

The surface must provide:

appropriate traction
controlled impact response
adequate resilience
dimensional stability
durability
low glare
consistent playing characteristics
easy maintenance

SAI documentation identifies synthetic polyurethane systems and approved wooden systems as options depending on facility type and use. For higher-level badminton facilities, it identifies wooden flooring systems or approved synthetic systems.

Common flooring approaches

Flooring system	Advantages	Considerations
Sprung timber	Excellent athletic response; premium sports environment	Higher cost and maintenance
Engineered sports timber	Controlled performance and appearance	Requires specialist installation
Synthetic sports flooring	Durable and relatively easy to maintain	System performance depends on specification
PVC sports flooring	Suitable for selected indoor applications	Must be selected for sports use
Concrete	Economical structural base	Generally unsuitable as the finished competitive badminton surface

The key architectural principle is that the flooring should be specified as a complete sports-floor system, not merely as a decorative finish.

12. Structural Design Considerations

Badminton halls are large-span spaces.

The structural design should provide a clear playing environment without columns, beams or other obstructions interfering with the required playing volume.

Important structural considerations

long-span roof structure
column positioning
roof truss depth
vibration control
floor flatness
floor loading
suspended services
maintenance access
equipment loads
spectator loads where applicable

A structural grid should ideally be established after understanding the court module, rather than attempting to fit the courts into an unsuitable structural grid.

Coordination principle

The sports geometry should inform the structural grid, while the structural grid should protect the sports geometry.

This is particularly important for multi-court halls.

13. Lighting Design

Badminton is visually demanding because players must track a small, fast-moving shuttle against the background.

Poor lighting can create:

glare
shadows
visual fatigue
uneven illumination
difficulty tracking the shuttle
reflections from the floor
reduced playing quality

BWF guidance for international facilities emphasizes even lighting and the elimination of direct glare. Older BWF-derived international guidance identifies approximately 1000 lux as a minimum recommended level for even court illumination, while specific BWF major-event requirements can be higher; current BWF major-event bid documentation specifies 1500 lux for TV courts.

Therefore, designers should not treat one lux figure as universally applicable to every badminton hall.

The required lighting level should be established according to the facility’s intended level of play, broadcasting requirements and applicable standards.

Lighting design principles

Avoid direct glare toward players.
Avoid placing bright luminaires in critical sightlines.
Maintain uniform illumination.
Avoid strong shadows.
Control daylight.
Coordinate luminaires with structural members.
Provide maintenance access.
Consider emergency lighting separately.
Use appropriate lighting controls for training and competition.

14. Daylight and Glare Control

Natural daylight can reduce energy consumption, but uncontrolled daylight can create severe visual problems.

The shuttle may become difficult to see when it passes against:

bright windows
skylights
sunlit walls
reflective surfaces
high-contrast backgrounds

For high-level badminton venues, BWF guidance recommends eliminating external daylight sources behind or alongside the playing area.

Architectural response

Possible strategies include:

high-level controlled daylight
blackout blinds
external shading
translucent rather than uncontrolled transparent openings
orientation that minimizes direct solar penetration
controlled clerestory glazing
blackout curtains for competition mode

Daylight should therefore be treated as a visual-performance issue, not only an environmental-design issue.

15. Background and Wall Colour

The shuttle must remain visually distinguishable.

BWF international guidance recommends darker backgrounds rather than white backgrounds behind the ends of the court because bright backgrounds can make the shuttle difficult to see.

This has an important implication for interior architecture.

Avoid

highly reflective white walls
glossy finishes
visually busy graphics
uncontrolled advertising backgrounds
strong patterns behind the court

Prefer

matte finishes
controlled darker backgrounds
low-reflectance surfaces
visually calm walls
consistent colour treatment

The interior palette should therefore be developed as part of the sports-performance environment.

16. HVAC and Air Movement

Badminton is unusually sensitive to air movement because the shuttlecock is lightweight and aerodynamic.

Even a relatively small uncontrolled air current can influence shuttle trajectory.

BWF guidance emphasizes minimizing or controlling draughts and air movement in competition facilities.

HVAC planning principles

Avoid:

supply diffusers blowing directly across courts
strong ceiling jets
uncontrolled exhaust paths
open external doors during play
cross ventilation directly through the playing zone

Consider:

displacement or carefully distributed air supply
low-velocity air distribution
controlled return-air locations
zoning
vestibules
airlocks
operational controls during matches

The existing Archi-Monarch article correctly identifies double-door/airlock entry points as an important strategy for competition facilities.

17. Acoustics in Badminton Halls

Large sports halls can produce excessive reverberation.

A hard floor, large roof and hard walls can cause:

repeated sound reflections
high background noise
difficulty hearing announcements
reduced speech intelligibility
uncomfortable spectator environments

Badminton facilities can therefore benefit from:

acoustic roof treatment
wall absorbers outside impact zones
controlled reverberation
acoustic zoning
sound-absorbing ceiling systems where compatible with the required clear height

Acoustic treatment must be positioned so that it does not interfere with the required playing volume or create maintenance problems.

18. Accessibility

A badminton facility should be accessible to all users, including spectators, coaches, staff and para-badminton athletes.

The accessibility strategy should address:

accessible entrance
step-free circulation
accessible toilets
changing facilities
wheelchair circulation
spectator wheelchair positions
accessible viewing areas
appropriate door widths
accessible emergency evacuation
tactile and visual signage where required

Para badminton also has specific court and competition provisions, so facilities intended for para-sport should not simply assume that a conventional court arrangement is sufficient.

The applicable accessibility requirements should be checked against the local building code and the relevant para-badminton regulations.

19. Supporting Spaces in a Badminton Facility

A badminton court is only one part of the building.

A complete facility may require:

Player facilities

changing rooms
lockers
showers
toilets
drinking-water points
warm-up areas

Management

reception
administration
coach room
officials’ room
meeting room

Sports support

equipment store
racket/stringing area
first-aid room
physiotherapy room
fitness/training area

Building support

electrical room
HVAC plant
housekeeping store
maintenance store
service access

Competition facilities

officials’ areas
media area
athlete waiting area
spectator circulation
seating
scoreboard/control position
broadcast facilities

The exact accommodation schedule should be based on the facility’s capacity and intended level of use.

20. Equipment Storage

Sports equipment storage is often underestimated during architectural planning.

Badminton facilities may need storage for:

nets
posts
court mats
division nets
shuttlecocks
training equipment
cleaning equipment
portable seating
barriers
event equipment

Storage should be located near the hall but should not obstruct player circulation.

Doors should be large enough for moving equipment efficiently.

For a multipurpose sports hall, the equipment-storage requirement should be calculated from the total hall operation rather than simply providing a small generic store.

21. Circulation Planning

Circulation should separate different user groups wherever practical.

A well-planned sports facility may have:

Public entrance → reception → spectator circulation

and

Athlete entrance → changing rooms → warm-up → playing hall

and

Service entrance → storage → equipment movement → hall

This reduces conflicts between:

players
spectators
coaches
officials
maintenance staff
service personnel

For competition facilities, athlete and service circulation becomes particularly important.

22. Orientation and Site Planning

Indoor badminton courts do not depend on outdoor solar orientation in the same way as outdoor sports courts, but building orientation still affects:

daylight
solar heat gain
façade design
ventilation
energy consumption
glare control
service access

In hot climates, particularly in India, minimizing unwanted solar heat gain can reduce the cooling load.

A useful approach is to place large controlled openings away from the most problematic solar exposures and use:

shading devices
insulated roof systems
controlled glazing
high-performance envelope systems
appropriate roof reflectance
thermal insulation

However, visual control should remain a priority.

23. Climate Response in Indian Badminton Facilities

For Indian conditions, climate-responsive design should address both thermal comfort and shuttle movement.

Natural ventilation can be beneficial in many buildings, but unrestricted cross ventilation across a badminton court can adversely affect play.

Therefore, the architectural strategy should distinguish between:

building ventilation requirement

and

playing-area air movement requirement.

A hall may need substantial fresh-air exchange while still maintaining low air velocity over the court.

Mechanical ventilation and air-conditioning should therefore be designed with the sport-specific requirement in mind.

24. Fire Safety and Emergency Planning

Badminton halls are assembly-type spaces when they accommodate significant numbers of spectators or users.

The fire and life-safety strategy should address:

occupant load
exits
travel distance
emergency doors
exit signage
emergency lighting
fire detection
fire suppression
smoke management where applicable
accessible evacuation
fire-rated construction
electrical safety

The applicable requirements depend on the building type, jurisdiction, occupancy and local regulations.

For an Indian project, the architect should verify the current applicable provisions of the National Building Code of India and the relevant local fire authority, rather than treating a generic badminton standard as a fire-safety regulation.

25. Spectator Planning

A recreational badminton hall may need little or no fixed seating.

A competition venue is different.

Spectator planning may require:

dedicated entrance
ticketing/control
seating
accessible viewing positions
toilets
concessions
circulation aisles
security control
emergency exits
media/broadcast areas

Fixed seating should not compromise the required playing-zone clearances.

Retractable seating can provide flexibility in multipurpose halls.

26. Competition-Level Badminton Facilities

A high-level competition facility requires a much larger architectural envelope than a recreational court.

BWF major-event documentation specifies:

12 m clear height above the complete playing area
approved wooden sprung or other approved suspended flooring
specialized lighting
1500 lux minimum for TV courts in the cited major-event requirements.

The field-of-play requirement for major BWF events can also be considerably larger than the simple footprint of one court.

Therefore:

A regulation court should never be confused with an international competition venue.

27. Recreational vs Competition Badminton Design

Parameter	Recreational	Institutional / Club	International Competition
Court	Standard court geometry	Standard court geometry	Standard BWF geometry
Clear height	Lower planning level possible	Higher preferred	Up to 12 m required for major BWF events
Run-off	Basic safety provision	Generous	Around 2 m or as event specification requires
Flooring	Sports synthetic systems	Premium synthetic/timber	Approved high-performance system
Lighting	Appropriate sports illumination	High-quality uniform lighting	Event/broadcast-specific lighting
Background	Visually controlled	Dark/matte preferred	Strict visual control
HVAC	Comfort cooling	Controlled air movement	Highly controlled air movement
Spectators	Optional	Moderate	Major consideration
Officials/media	Minimal	Limited	Extensive
Ancillary spaces	Basic	Moderate	Comprehensive

This table should be treated as a planning comparison, not as a substitute for the current regulations of the relevant governing organization.

28. Common Badminton Court Design Mistakes

28.1 Designing only the 13.4 m × 6.1 m rectangle

This creates an undersized facility because safety and circulation zones are ignored.

28.2 Providing insufficient clear height

A court may look correct in plan but fail because beams, lights or ducts occupy the required playing volume.

28.3 Placing lights directly above critical sightlines

This can create glare and make shuttle tracking difficult.

28.4 Using bright backgrounds

White or highly reflective backgrounds can make the shuttle difficult to see.

28.5 Installing strong air-conditioning directly over courts

High air velocity can alter shuttle flight.

28.6 Ignoring structural coordination

Columns or roof members may intrude into the safety zone.

28.7 Treating flooring as a normal architectural finish

Sports flooring needs performance characteristics, not merely appearance.

28.8 Providing insufficient storage

Sports equipment frequently ends up in circulation areas when storage is undersized.

28.9 Ignoring acoustics

A large hard hall can become excessively reverberant.

28.10 Mixing circulation with active courts

Players, spectators and service staff crossing playing zones create safety and operational problems.

29. Badminton Court Design Checklist for Architects

Before finalizing a badminton facility, check:

Court geometry

13.40 m court length
6.10 m doubles width
5.18 m singles playing width
40 mm court lines
Correct service markings
Correct net/post positions

Spatial planning

Safety clearance provided
Court-to-court separation checked
Circulation provided
No columns in playing zones
Adequate equipment storage

Section

Clear height checked
Beams coordinated
Lighting coordinated
HVAC coordinated
Sprinklers/services coordinated

Interior

Low-glare flooring
Appropriate wall colour
Controlled daylight
Acoustic treatment
Safe wall finishes

Services

Lighting
HVAC
Electrical
Fire protection
Emergency lighting
Plumbing
Accessibility

Support facilities

Reception
Changing rooms
Toilets
Showers
First aid
Equipment storage
Administration

30. Recommended Design Workflow

An architect can approach a badminton project in the following sequence:

Step 1 — Define facility level

Determine whether the facility is:

recreational
school
institutional
club
academy
regional
national
international

Step 2 — Establish court geometry

Start with the official court dimensions.

Step 3 — Add safety zones

Determine the required clearance around each court.

Step 4 — Develop the multi-court module

Arrange one, two, four, six or more courts as required.

Step 5 — Establish structural grid

Coordinate columns and roof spans with the court arrangement.

Step 6 — Develop the section

Check clear height from finished floor to the lowest obstruction.

Step 7 — Coordinate services

Coordinate:

lighting
HVAC
sprinklers
electrical systems
acoustics

Step 8 — Develop ancillary spaces

Add changing rooms, toilets, storage, first aid, reception and administration.

Step 9 — Resolve accessibility and fire safety

Check the applicable local regulations.

Step 10 — Verify the final design

Cross-check the completed drawings against the applicable BWF, SAI, local authority and project-specific requirements.

31. Badminton Court Design: Key Dimensions Summary

Parameter	Dimension / Requirement
Doubles court length	13.40 m
Doubles court width	6.10 m
Singles playing width	5.18 m
Court line width	40 mm
Net height at centre	1.524 m
Net height at posts	1.55 m
Net depth	760 mm
Short service line	1.98 m from net
Doubles long service line	0.76 m from rear boundary
International major-event clear height	12 m
BWF major-event TV-court lighting	1500 lux minimum in cited event requirements
International guidance clear space	Approximately 2 m around court in cited BWF-derived guidance

Dimensions and performance requirements should always be checked against the current governing-body document applicable to the proposed level of play.

32. Why Badminton Court Design Requires Integrated Architecture

The most important lesson for architecture students is that badminton court design is not simply a dimensional exercise.

The court influences:

structure → section → lighting → HVAC → acoustics → circulation → interior finishes → accessibility → fire safety → spectator planning.

A seemingly small change in one system can affect another.

For example, lowering the roof may reduce construction cost but compromise playing quality. Placing an HVAC diffuser in the wrong location may create unacceptable air movement. Introducing large windows may improve daylight but create shuttle-visibility problems.

Good sports architecture therefore depends on integrated coordination rather than isolated compliance.

33. Conclusion

Badminton court design begins with the standardized 13.40 m × 6.10 m doubles court, but the architectural design extends far beyond the court markings.

A successful badminton facility must provide adequate safety clearance, clear height, suitable sports flooring, controlled lighting, appropriate visual backgrounds, controlled air movement, structural coordination, circulation, accessibility and supporting spaces.

For recreational facilities, the design can be relatively compact. For schools, clubs and academies, multi-court planning and efficient ancillary spaces become increasingly important. For national and international competition, the requirements become significantly more demanding, particularly in relation to clear height, flooring, lighting, environmental control, officials, spectators and media infrastructure.

The architect’s role is therefore to transform a standardized playing geometry into a complete, safe and high-performance building environment.

For students and professionals, the most useful design approach is to begin with the official court geometry, add the required safety and circulation zones, develop the structural and building-services grid around the courts, and then coordinate the supporting functions around the playing environment.

Badminton architecture works best when the sport itself becomes the starting point for the building’s planning logic.
