Types, Uses, Design and Construction
Introduction
A foundation transfers the loads of a building or structure safely to the supporting soil or rock. When a structural column carries a concentrated load that needs to be distributed over a larger base area, a grillage foundation may provide a suitable solution, subject to the soil conditions and structural design requirements.
A grillage foundation uses layers of structural members to spread a concentrated load over a wider area. The traditional steel arrangement consists of two or more tiers of steel beams, commonly placed at right angles to one another and surrounded by concrete. Timber grillage arrangements are also described in traditional foundation engineering.
Grillage foundations are particularly relevant to the study of steel column bases, industrial structures and foundation load distribution. Their suitability must be evaluated through structural calculations and geotechnical investigation rather than by relying on a standard depth or a general soil-strength threshold.
What Is a Grillage Foundation?
A grillage foundation is a type of shallow foundation that uses layers of structural beams or similar load-distributing members to spread concentrated loads from a column or other support over a larger area of foundation soil.
In a conventional steel grillage foundation, a steel column transfers its load through a base plate to the upper tier of steel beams. The load is then distributed through the beam arrangement and supporting concrete to the lower tier and the ground beneath the foundation.
The main objective is to provide a sufficiently large load-transfer area without necessarily requiring a deep foundation.
Main characteristics
- It is generally used as a shallow foundation system.
- It is associated with concentrated loads from columns or similar structural supports.
- Steel beams are commonly arranged in two or more tiers.
- Adjacent beam tiers are often oriented perpendicular to each other.
- Concrete commonly surrounds the steel grillage in conventional steel arrangements.
- Foundation dimensions and member sizes depend on the structural loads, soil conditions and design requirements.
A grillage foundation does not eliminate settlement. Its performance depends on the adequacy of the soil, the stiffness and strength of its components, and the quality of construction.
How Does a Grillage Foundation Work?
The fundamental principle is to transfer a concentrated load through progressively larger load-distributing components until it reaches the foundation soil.
Load-transfer mechanism
- Structural column: Receives loads from the floors, roof, beams and other structural components.
- Column base plate: Transfers the column forces into the foundation assembly.
- Upper tier of beams: Distributes the applied load across several structural members.
- Lower tier of beams: Spreads the transferred forces over a broader supporting area.
- Concrete encasement and supporting concrete: Provide the designed bearing interface and help protect and stabilize the steel arrangement.
- Foundation soil: Receives the resulting contact pressure and transfers the load into the ground.
The precise distribution of forces depends on the beam layout, member stiffness, connections, concrete arrangement and soil response. It should not be assumed that the pressure beneath the foundation is perfectly uniform.
Why is a grillage foundation used?
A steel column may carry a substantial load through a relatively small cross-sectional area. The soil beneath the column cannot necessarily sustain the same stress as the steel member.
The foundation therefore needs to spread the load over a larger area so that the soil’s bearing resistance is not exceeded and settlement remains within acceptable limits.
The grillage arrangement provides an intermediate structural system between the column and the supporting ground.
Types of Grillage Foundation
Grillage foundations are commonly discussed in terms of their principal construction material. Steel and timber are the traditional categories most relevant to the subject.

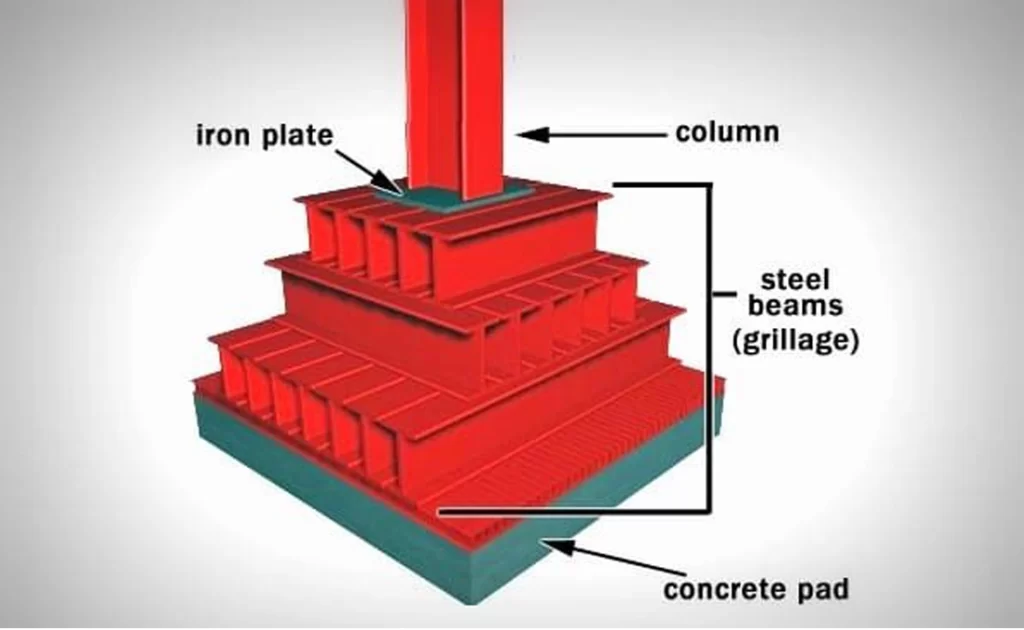

1. Steel Grillage Foundation
A steel grillage foundation consists of structural steel sections arranged in multiple tiers to distribute concentrated column loads.
Rolled steel I-sections or other suitable steel sections may be used, depending on the design. In a typical double-tier arrangement, the beams in one tier are oriented perpendicular to those in the adjacent tier.
The steel grillage is generally encased in concrete as part of the designed foundation assembly.
Typical applications
- Steel-framed industrial buildings
- Heavy column bases
- Selected warehouse and factory structures
- Other structures where a shallow, load-distributing foundation is appropriate
Advantages
- High structural strength relative to the size of the steel members
- Ability to distribute concentrated loads through multiple tiers
- Potentially reduced excavation depth compared with some alternative foundation solutions
- Adaptability to different column loads and foundation layouts
Limitations
- Requires careful design of beams, connections and bearing interfaces
- Steel needs appropriate corrosion protection and detailing
- Installation and concrete placement require quality control
- May not be economical when conventional reinforced-concrete footings are sufficient
2. Timber Grillage Foundation
A timber grillage foundation uses layers of timber members to distribute loads over a larger area. Adjacent layers may be arranged at right angles to improve load distribution.
Timber grillage is a traditional foundation technique that may be relevant in selected low-rise, temporary, historical or specially engineered applications.
Its use depends on the timber species, durability, moisture exposure, biological deterioration risks, structural loads and applicable regulations.
Advantages
- Relatively lightweight members
- Potentially straightforward assembly in appropriate applications
- Use of timber where its structural and environmental characteristics are suitable
Limitations
- Susceptibility to decay under unsuitable moisture conditions
- Potential deterioration from biological attack
- Dependence on timber quality and protective detailing
- Restricted suitability for many modern permanent heavy-load applications
Timber should not automatically be considered suitable for waterlogged or high-groundwater conditions. Prolonged wetting, oxygen exposure and changing moisture conditions can affect durability.

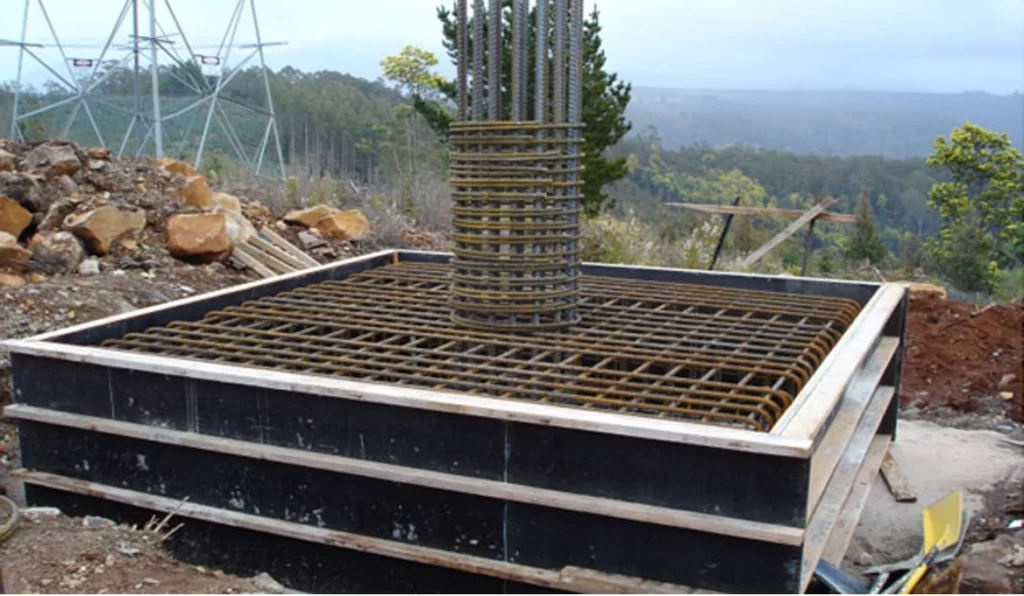

3. Reinforced-Concrete Load-Distributing Arrangements
Reinforced-concrete footings, beams and slabs can also distribute concentrated loads over a larger area. However, a conventional reinforced-concrete footing or raft is not automatically a grillage foundation.
Where reinforced-concrete beams form a deliberately arranged, layered load-distributing system, the terminology should describe the actual structural configuration. The design should distinguish this arrangement from a conventional isolated footing, combined footing or raft foundation.
Comparison of material-based arrangements
| Feature | Steel grillage | Timber grillage | Reinforced-concrete alternative |
|---|---|---|---|
| Main material | Structural steel sections | Timber members | Reinforced concrete |
| Typical arrangement | Multiple tiers of beams | Multiple layers of timber members | Footings, beams or slabs, depending on the system |
| Principal consideration | Member strength, connections and corrosion protection | Durability, moisture and member strength | Concrete strength, reinforcement, bending and shear |
| Construction requirements | Accurate positioning and concrete placement where encased | Suitable timber selection and durable detailing | Formwork, reinforcement, concreting and curing |
| Suitability | Selected concentrated heavy-load applications | Selected engineered or traditional applications | Wide range of foundation applications |
| Design approach | Structural and geotechnical design | Structural and geotechnical design | Structural and geotechnical design |
Components of a Steel Grillage Foundation
The components depend on the design, but a typical arrangement may include the following.
1. Structural column
The column carries the loads from the superstructure. Its axial force, bending moments and shear forces influence the design of the column base and foundation.
2. Base plate
The base plate connects the column to the supporting foundation assembly. Its dimensions, thickness, bearing area and connection details must be designed for the forces transferred by the column.
3. Anchor bolts
Anchor bolts may be used to secure the column base and resist the forces specified in the design. Their arrangement depends on the connection design, including any tension, shear or uplift demands.
4. Upper tier of steel beams
The upper tier receives forces from the column base and distributes them through the grillage arrangement. Its beams must be checked for the relevant bending, shear, bearing and other applicable limit states.
5. Lower tier of steel beams
The lower tier transfers the forces from the upper tier towards the supporting concrete and soil. Its orientation and spacing depend on the load distribution and structural design.
6. Spacing and connection elements
Spacers, separators or other designed connection details may be used to maintain the required arrangement between beam tiers.
These elements must not be treated as interchangeable with structural connections. Their purpose and capacity should be specified in the design drawings.
7. Concrete encasement or supporting concrete
Concrete may surround the steel members and provide the designed interface with the ground. It also helps stabilize the assembly and can provide protection to the embedded steel, depending on the cover, concrete quality and exposure conditions.
8. Foundation soil
The soil beneath the foundation is the final supporting medium. Its bearing resistance, compressibility, groundwater conditions and variability influence the foundation’s dimensions and suitability.
Design Considerations for a Grillage Foundation
The design of a grillage foundation requires coordination between structural engineering and geotechnical engineering. A typical arrangement or standard detail cannot replace project-specific calculations.
1. Structural loads
The engineer should establish the relevant design actions, including:
- Dead loads
- Imposed loads
- Wind loads
- Earthquake effects where applicable
- Bending moments and shear forces at the column base
- Uplift or other special actions where applicable
The governing load combinations should follow the applicable design standards.
2. Soil bearing resistance
The foundation’s supporting area must be sufficient to transfer the applied forces without exceeding the applicable soil resistance.
For an idealized concentric vertical load, the average contact pressure can be expressed as:
[
q_{\mathrm{avg}}=\frac{P}{A}
]
Where:
- (q_{\mathrm{avg}}) = average contact pressure
- (P) = vertical load transferred to the supporting ground
- (A) = effective supporting area
This relationship is a basic illustration, not a complete foundation-design method. It does not account for eccentric loading, moments, nonuniform pressure, settlement, groundwater or all relevant load combinations.
3. Total and differential settlement
Bearing resistance and settlement are separate design considerations.
A foundation may have adequate bearing resistance and still experience excessive settlement. Uneven settlement between adjacent foundations can cause cracking, distortion of structural frames and damage to building finishes.
The geotechnical assessment should establish whether both total and differential settlement are acceptable for the structure.
4. Steel beam design
The structural engineer must verify the strength and serviceability of the grillage members.
Relevant checks may include:
- Bending resistance
- Shear resistance
- Local bearing and local deformation
- Stability of individual members where relevant
- Connection forces
- Serviceability and deformation
- Load transfer between the tiers
The beam sections, spacing and number of tiers must be determined by calculation.
5. Column base and connections
The base plate, anchor bolts, welds, bolts and other connection components must be designed to transfer the forces safely.
The details should be coordinated with the column orientation, beam layout, concrete arrangement and construction sequence.
6. Concrete detailing and durability
Where the steel grillage is encased in concrete, the design should address concrete quality, cover, placement, compaction and exposure conditions.
The detailing must also consider water ingress, corrosion risk and the long-term durability of embedded components.
7. Groundwater and drainage
Groundwater conditions influence excavation stability, concrete placement and durability. Depending on the site, dewatering or other groundwater-management measures may be required.
The design should also consider surface drainage and protection against erosion or undermining.
8. Site constraints and construction access
Foundation excavation, adjacent structures, underground services and available working space can affect the feasibility of a grillage foundation.
For architectural coordination, the foundation layout should be checked against basement walls, service routes, drainage systems and other below-ground elements.
Construction Process of a Steel Grillage Foundation
The construction sequence must follow the approved structural drawings, geotechnical recommendations and project specifications. A typical sequence includes the following stages.
Step 1: Site investigation and setting out
Review the soil investigation report, foundation design and structural grid. Establish the required location, orientation and levels of the foundation.
Underground services and nearby foundations should be identified before excavation.
Step 2: Excavation
Excavate to the specified dimensions and founding level. Provide suitable excavation support, dewatering and worker-protection measures where required.
The founding surface should be inspected before proceeding. Unexpected soft spots, disturbed soil or groundwater conditions should be referred to the responsible engineer.
Step 3: Prepare the founding surface
Prepare and level the foundation base in accordance with the design. If a levelling layer or blinding concrete is specified, install it to the required dimensions and level.
Do not substitute an unverified layer of stone, soil or other material for the designed supporting arrangement.
Step 4: Install the lower tier
Position the lower-tier steel beams according to the approved layout. Check their orientation, spacing, elevation and alignment.
The beams should be adequately supported during installation so that they remain in their designed positions.
Step 5: Install separators and the upper tier
Install the specified spacing and connection elements. Position the upper-tier beams according to the drawings and verify the required relationship between the tiers.
Confirm that the column-base arrangement is compatible with the grillage layout.
Step 6: Inspect the steelwork
Before concrete placement, inspect the steel sections, connections, spacing, alignment and specified protective treatment.
Any discrepancies should be corrected and approved before the work is concealed.
Step 7: Install formwork and place concrete
Where concrete encasement or supporting concrete is required, install suitable formwork and place the specified concrete.
Concrete should be placed and compacted in a manner that avoids voids and displacement of the steel members. Particular care is needed around closely spaced sections and embedded components.
Step 8: Cure the concrete
Provide curing in accordance with the project specifications and applicable concrete requirements. The concrete must achieve the specified strength before subsequent operations that depend on it.
Step 9: Install or complete the column-base connection
Complete the column-base installation in the sequence specified by the engineer. Check the position of anchor bolts, base plate levels, alignment and connection details.
Step 10: Backfill and complete the foundation
Backfill only when the required inspections and strength conditions have been satisfied. Use the specified backfill material and compaction procedure.
Complete drainage, waterproofing or other protective measures where required.
Advantages of Grillage Foundation
A grillage foundation can provide several benefits when it is appropriate for the site and structural loading.
1. Distribution of concentrated loads
The layered beam arrangement spreads forces from a column over a larger supporting area.
2. Potentially reduced excavation depth
A grillage may provide the required load-distributing area within a relatively shallow excavation, depending on the loads and ground conditions.
3. Efficient use of structural members
Steel sections can form a compact load-transfer assembly where a conventional footing would otherwise require a different or more substantial arrangement.
4. Adaptability
The layout can be designed around the column load, available space and required supporting area.
5. Suitability for selected heavy column loads
Grillage foundations can be useful for concentrated loads where the near-surface soil can safely support a suitably sized shallow foundation.
6. Potential construction benefits
In suitable conditions, a grillage foundation may reduce the need for deeper excavation or alternative foundation systems. Whether it saves time or cost must be established through project-specific comparison.
Disadvantages and Limitations
1. Requires detailed structural design
The beam tiers, connections, bearing interfaces and supporting area must be designed for the actual loads and ground conditions.
2. May not be suitable for highly compressible soil
Increasing the foundation area does not automatically make a site suitable for shallow foundations. If settlement remains excessive, ground improvement or deep foundations may be required.
3. Steel corrosion risk
Steel components can deteriorate if their protective detailing is inadequate for the exposure conditions.
4. Construction tolerances
Incorrect beam spacing, misalignment, inadequate concrete compaction or misplaced anchor bolts can affect structural performance.
5. Potentially higher construction cost
Steel fabrication, lifting, installation, inspection and concrete placement can make the system uneconomical where simpler footings would perform adequately.
6. Groundwater and excavation challenges
Water ingress, unstable excavation sides and difficult founding conditions can complicate construction.
7. Limited suitability for some building layouts
A grillage arrangement may not be the most practical option where column loads are distributed over a large area, foundation footprints overlap extensively or a continuous foundation system is more appropriate.
Applications of Grillage Foundations
Grillage foundations may be considered for:
- Steel columns carrying concentrated structural loads
- Selected industrial buildings and factory structures
- Certain warehouse and commercial building column bases
- Structural supports where a shallow load-distributing arrangement is feasible
- Specially engineered applications requiring the distribution of concentrated loads over a broader foundation area
The suitability of a grillage foundation should not be inferred from building type alone. The structural system, column reactions, geotechnical report, settlement limits, groundwater and construction constraints must all be evaluated.
Grillage Foundation vs Other Foundation Types
The correct foundation depends on the loads, ground conditions, geometry and performance requirements.
| Foundation type | Basic arrangement | Typical selection consideration |
|---|---|---|
| Grillage foundation | Layered load-distributing beams or members | Concentrated loads that can be transferred through a shallow foundation |
| Isolated footing | Individual footing supporting a column | Suitable soil and adequate space for individual footings |
| Combined footing | One footing supporting two or more columns | Closely spaced columns, overlapping footings or boundary constraints |
| Raft foundation | Continuous slab supporting several columns or walls | Larger footprint, interacting column loads or settlement considerations |
| Pile foundation | Deep structural elements transferring loads into deeper soil or rock, or through shaft resistance | Shallow ground is inadequate or settlement requirements cannot otherwise be met |
A grillage foundation is not automatically stronger, cheaper or more stable than these alternatives. The best option is the one that satisfies structural, geotechnical, durability and construction requirements at an acceptable overall cost.
Common Mistakes in Grillage Foundation Design and Construction
- Using assumed dimensions: Beam sizes and foundation depths should come from the approved design, not a generic online diagram.
- Ignoring settlement: Checking bearing resistance alone does not establish acceptable foundation performance.
- Incorrect beam arrangement: The tiers must follow the designed orientation, spacing and load-transfer details.
- Inadequate connection detailing: Base plates, anchor bolts and beam connections must transfer the required forces.
- Poor concrete placement: Voids or displacement around steel members can compromise the intended load-transfer arrangement.
- Neglecting corrosion protection: Exposure and durability requirements must be considered during design and construction.
- Ignoring groundwater: Excavation and founding conditions should be assessed before construction begins.
- Confusing grillage with raft foundations: The terms describe different arrangements and should not be used interchangeably.
- Assuming all weak soils are suitable: A wider foundation does not necessarily resolve excessive compressibility or settlement.
- Failing to coordinate drawings: Foundation details must align with the structural grid, column-base design, site levels and underground services.
Inspection and Maintenance
A properly designed and constructed foundation is generally concealed after completion. Routine maintenance therefore focuses on monitoring the building and addressing conditions that could affect the foundation.
Where accessible steel components are present, inspections should consider corrosion, deformation and damage to protective systems.
For the building as a whole, warning signs may include new or progressive cracks, unexpected floor-level changes, persistent water accumulation or visible movement around the foundation. These signs do not establish the cause on their own; a qualified structural or geotechnical engineer should assess suspected foundation distress.
Drainage should be maintained so that water does not accumulate unnecessarily near the building. Any repair, strengthening or underpinning work should be based on a proper assessment rather than cosmetic treatment of symptoms.
Relevant Standards and Professional Guidance
For projects in India, the design team should consult the current editions and applicable provisions of the relevant Indian Standards.
Important references include:
- IS 1904:2021 — General requirements for design and construction of foundations in soils.
- IS 1892:2021 — Subsurface investigation for foundations.
- IS 1080:1985 — Code of practice for design and construction of shallow foundations in soils other than raft, ring and shell foundations.
The applicable standards, amendments, reaffirmations and project-specific requirements should be verified through the Bureau of Indian Standards. The standards listed here provide relevant general foundation guidance; they should not be interpreted as a complete, grillage-specific design specification.
Frequently Asked Questions
What is the main purpose of a grillage foundation?
Its main purpose is to distribute concentrated structural loads over a larger supporting area. In a conventional steel grillage, multiple tiers of beams transfer loads from a column base to the supporting concrete and soil.
What are the main types of grillage foundation?
Steel and timber grillage foundations are the principal traditional material-based categories. Other reinforced-concrete arrangements should be classified according to their actual structural configuration rather than automatically being called grillage foundations.
Where is a grillage foundation used?
It may be used beneath selected heavily loaded columns, particularly in steel-framed industrial or commercial structures where shallow foundation support is feasible. The final selection depends on soil conditions and structural calculations.
Why are steel beams arranged in tiers?
The tiers provide a load-distributing arrangement that transfers concentrated forces from the column base towards a wider supporting area. The orientation and spacing of the beams are determined by structural design.
Is a grillage foundation suitable for weak soil?
It may be suitable where the soil can support the required shallow foundation without excessive bearing pressure or settlement. Very soft or highly compressible ground may require ground improvement or deep foundations instead.
What is the difference between a grillage foundation and an isolated footing?
An isolated footing generally uses a concrete base, often reinforced, to distribute a column load into the soil. A grillage foundation uses layered beams or similar structural members as its principal load-distributing arrangement. Both require structural and geotechnical design.
Does a grillage foundation require concrete?
Conventional steel grillage foundations commonly use concrete around the steel members and as part of the supporting foundation arrangement. The exact concrete configuration depends on the design.
Is a grillage foundation economical?
It can be economical in suitable circumstances, particularly where its load-distributing arrangement avoids a more complex or deeper foundation solution. It is not universally cheaper than an isolated footing, raft or pile foundation.
How deep should a grillage foundation be?
There is no single depth that is correct for every project. The founding level and overall depth depend on the soil profile, loads, frost or moisture-related ground conditions where relevant, groundwater and applicable design requirements.
Who should design a grillage foundation?
A qualified structural engineer should design the structural members and connections in coordination with a geotechnical professional responsible for assessing the ground conditions. The design must comply with applicable standards and project requirements.
Conclusion
A grillage foundation is a load-distributing foundation arrangement that can be useful for selected concentrated column loads. Its conventional steel form uses multiple tiers of beams to transfer loads from the column base through the foundation assembly and into the supporting soil.
Its effectiveness depends on the correct selection of the foundation system, adequate soil bearing resistance, acceptable settlement, properly designed structural members, durable detailing and controlled construction.
For architecture students, understanding the load path is essential. For practicing professionals, coordination between column-base details, structural calculations, geotechnical recommendations and construction drawings is fundamental to achieving a safe and durable foundation.
Note: This article is intended for educational reference. Foundation dimensions, beam sizes, connections and construction details must be established by qualified professionals for the specific project.
