Volleyball Court Design ⋆ Archi-Monarch

Dimensions, Layout and Architectural Planning

Introduction

Volleyball court design requires considerably more than drawing an 18 × 9 metre rectangle. The court is the central element of a sports facility, but the architectural design must also accommodate the free zone, overhead clearance, net system, player movement, officials, spectators, lighting, ventilation, acoustics, accessibility, equipment storage and safe circulation.

For architects and architecture students, understanding the difference between the playing court, playing area, free zone and the larger sports-hall environment is particularly important. A court can have the correct painted dimensions and still be poorly designed if players cannot move safely outside the boundary, the ceiling is too low, lighting creates glare, structural elements obstruct play, or ancillary facilities are badly connected.

The current international reference for indoor volleyball is the FIVB Official Volleyball Rules 2025–2028. Under these rules, the playing court is 18 m long and 9 m wide. A minimum 3 m free zone surrounds it for general play, while FIVB World and Official Competitions require substantially larger free zones and 12.5 m of unobstructed height above the playing surface.

This guide explains volleyball court design from an architectural and planning perspective, with particular attention to dimensions, zoning, structure, materials, services, safety and facility planning.

What Is Volleyball Court Design?

Volleyball court design is the process of planning the playing court and its surrounding architectural environment so that the facility supports safe, functional and appropriate volleyball activity.

It includes:

Court dimensions
Court markings
Attack and service zones
Free zones
Net and post locations
Clear height
Sports flooring
Lighting
Ventilation
Acoustics
Player circulation
Spectator circulation
Officials’ areas
Warm-up spaces
Equipment storage
Changing rooms
First-aid facilities
Accessibility
Fire and life safety
Structural coordination

The exact requirements depend on the intended level of play. A community court does not necessarily require the same facility envelope as an international competition venue.

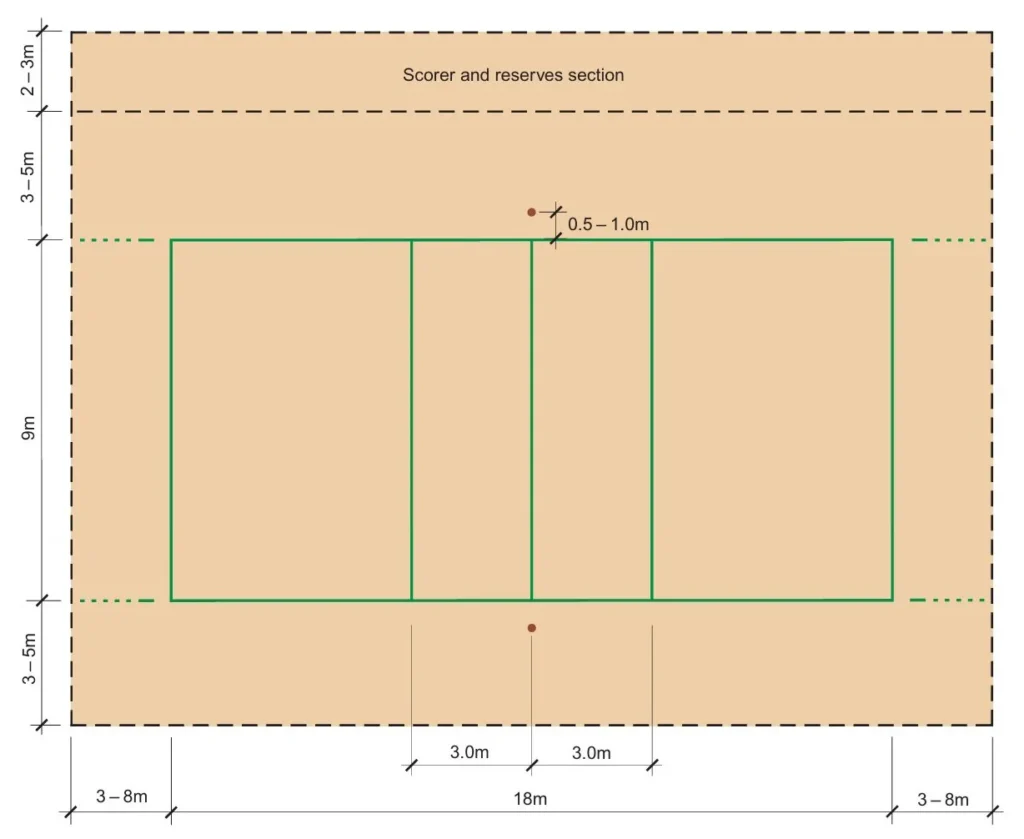

Standard Volleyball Court Dimensions

The standard indoor volleyball playing court measures:

18 m × 9 m

The 18 m length is divided into two equal 9 × 9 m courts by the centre line.

The current FIVB rules specify a minimum free zone of 3 m around the court for general play. Therefore, if only the court and minimum free zone are considered, the resulting rectangular playing-area footprint is:

24 m × 15 m

This should not be confused with the total size of a complete volleyball facility.

For FIVB World and Official Competitions, the free zone is increased to:

5 m beyond each sideline
6.5 m beyond each end line

This produces a court-plus-free-zone footprint of approximately:

31 m × 19 m

Additional space is then needed for benches, officials, circulation, spectators, technical equipment and other competition functions.

Volleyball Court Dimension Table

Element	General Minimum	FIVB World & Official Competitions
Playing court	18 × 9 m	18 × 9 m
Each half	9 × 9 m	9 × 9 m
Free zone at sides	3 m minimum	5 m
Free zone at ends	3 m minimum	6.5 m
Minimum clear height	7 m	12.5 m
Court line width	5 cm	5 cm
Attack line	3 m from centre-line axis	3 m
Net height – men	2.43 m	2.43 m
Net height – women	2.24 m	2.24 m
Net width	1 m	1 m
Net length	9.50–10 m	9.50–10 m
Post height	2.55 m	2.55 m
Post distance outside sidelines	0.50–1.00 m	1.00 m

The dimensions above should be read together with the current FIVB rules rather than treating the 18 × 9 m court as the complete facility.

Court, Playing Area and Free Zone: What Is the Difference?

This distinction is important in architectural drawings.

1. Playing Court

The playing court is the marked:

18 × 9 m rectangle

It contains the two team courts divided by the centre line.

2. Free Zone

The free zone surrounds the playing court.

Players may move into this space while attempting to keep the ball in play. Therefore, it should not be treated as leftover circulation space.

3. Free Playing Space

The free playing space is the unobstructed volume above the playing area.

For general play, FIVB specifies a minimum height of 7 m.

For FIVB World and Official Competitions, the required free playing height is 12.5 m.

This means that structural beams, lighting fixtures, ducts, suspended equipment and other obstructions must be coordinated outside the required clear volume.

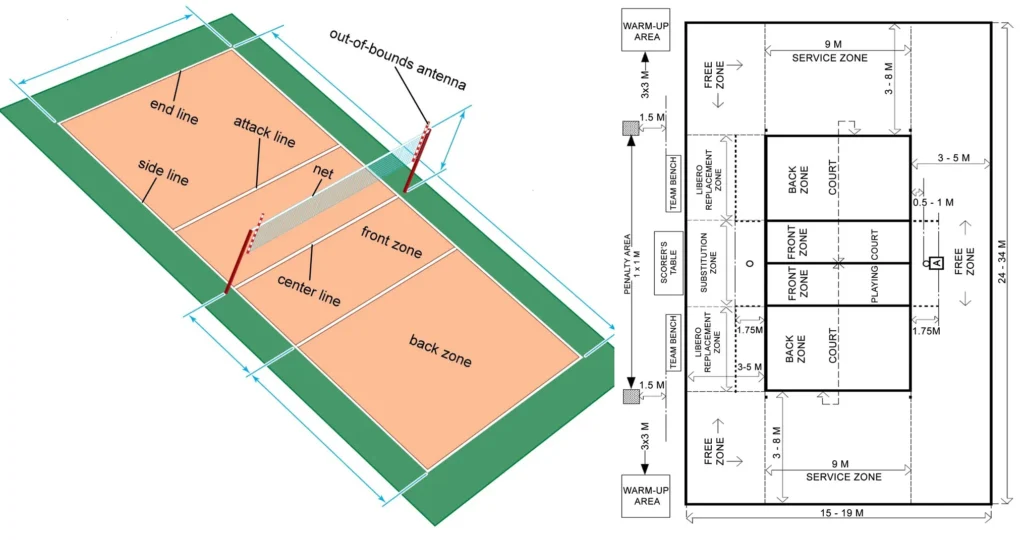

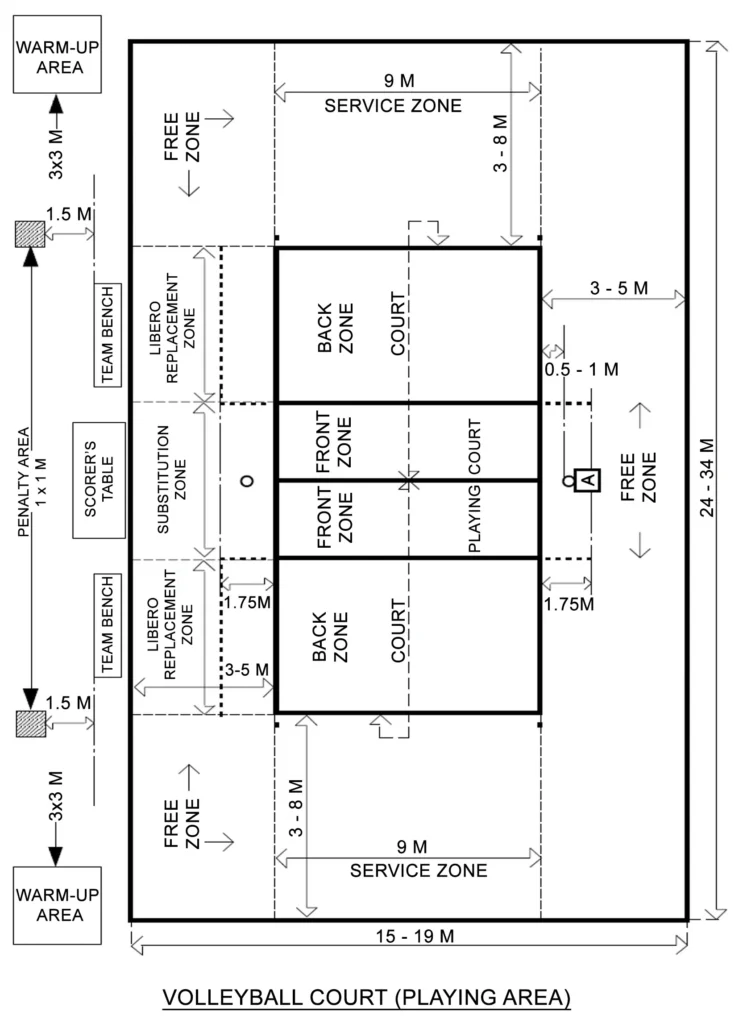

Volleyball Court Layout

A basic volleyball court consists of several clearly defined zones.

Centre Line

The centre line runs beneath the net and divides the court into two 9 × 9 m halves.

Attack Line

The attack line is located 3 m from the axis of the centre line on each side.

It separates the front zone from the back zone.

Front Zone

The front zone lies between the centre-line axis and the rear edge of the attack line.

Back Zone

The back zone extends from the attack line toward the end line.

Service Zone

The service zone is 9 m wide behind each end line.

It extends backward to the end of the free zone.

Substitution Zone

The substitution zone is associated with the extension of the attack lines toward the scorer’s table.

Libero Replacement Zone

The libero replacement zone is located in the free zone on the bench side and is defined by the relevant attack-line and end-line extensions.

Warm-Up Areas

For FIVB World and Official Competitions, warm-up areas are approximately 3 × 3 m and are positioned in the appropriate bench-side areas without obstructing spectator views.

Volleyball Court Markings

All court lines are:

5 cm wide

The lines should contrast clearly with the playing surface.

The boundary lines are drawn inside the dimensions of the playing court. This detail is important when preparing a CAD drawing because the 18 × 9 m dimension should not be interpreted as the distance between arbitrary centre lines of thick markings.

For FIVB World and Official Competitions, the attack line is extended using broken markings along the appropriate side areas.

A professional architectural drawing should therefore show:

End lines
Side lines
Centre line
Attack lines
Service-zone indicators
Net line
Free zone
Relevant competition zones
Dimensions
North arrow where appropriate
Scale
Flooring specification
Equipment locations

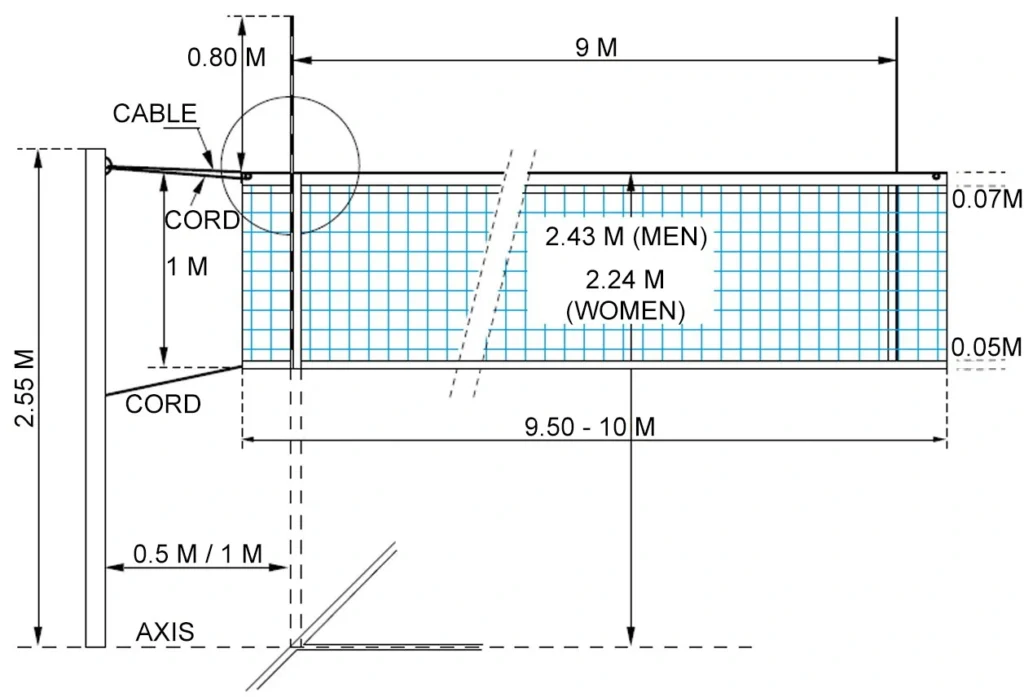

Volleyball Net Height

The net is positioned vertically over the centre line.

The official net heights are:

Men: 2.43 m
Women: 2.24 m

The height is measured from the centre of the playing court.

The net height over the two sidelines must remain consistent within the tolerance specified by FIVB.

The net is approximately 1 m wide and 9.50–10 m long.

Volleyball Net Posts

Net posts are an important architectural coordination item.

The current FIVB rules specify:

Post height: 2.55 m
General position: 0.50–1.00 m outside the sidelines
FIVB World and Official Competitions: 1 m outside each sideline

The posts should be rounded and smooth and must not introduce dangerous or obstructing elements.

For competition installations, the posts must be padded.

Architectural Coordination of Net Posts

The post sockets should be coordinated with the structural floor design before construction.

Architects should coordinate:

Socket location
Structural slab
Local slab thickening where required
Waterproofing
Floor finish
Removable covers
Other sports markings
Electrical or mechanical floor services

A poorly coordinated socket can become a major problem in a multipurpose hall.

How Much Space Is Required for a Volleyball Court?

One of the most common mistakes in preliminary planning is using only the 18 × 9 m court area.

Court Only

18 × 9 m:

162 m²

Court + 3 m Minimum Free Zone

24 × 15 m:

360 m²

This is a useful conceptual minimum for general planning, but it does not represent the complete building footprint.

FIVB World/Official Competition Court + Free Zone

18 m + 6.5 m + 6.5 m = 31 m

9 m + 5 m + 5 m = 19 m

Therefore:

31 × 19 m = 589 m²

This still does not represent the complete venue because additional areas may be required for:

Team benches
Officials
Warm-up
Spectators
Circulation
Media
Technical equipment
Ball retrieval
Security
Medical facilities
Storage
Access and egress

Clear Height for Volleyball Hall Design

Vertical planning is as important as horizontal planning.

The current FIVB rules specify:

7 m minimum free playing height for general play
12.5 m for FIVB World and Official Competitions

The clear height must be measured from the playing surface to the lowest obstruction.

Architects should therefore consider:

Roof trusses
Beams
Lighting fixtures
HVAC ducts
Sprinklers
Acoustic panels
Suspended equipment
Cable trays
Retractable sports equipment

A structural roof may be 10 m or 12 m above the floor, but if a large duct or suspended luminaire drops into the required clearance zone, the effective clear height is reduced.

Design Principle

Do not design the roof first and attempt to fit the volleyball court underneath it.

Instead:

Court → Free Zone → Clear Volume → Equipment → Structure → Services

should be coordinated as one three-dimensional design problem.

Volleyball Court Flooring

Flooring affects safety, player comfort, ball response and facility durability.

For FIVB World and Official Competitions, the current rules permit approved wooden or synthetic playing surfaces.

The surface must be:

Flat
Horizontal
Uniform
Safe for players
Free from dangerous roughness
Free from excessive slipperiness

For indoor courts, FIVB also specifies requirements concerning court and free-zone colours.

Common Flooring Approaches

Flooring	Typical Application	Key Considerations
Sports timber	High-quality indoor sports facilities	Shock absorption, finish, maintenance
Synthetic sports flooring	Indoor competition/training	Performance, resilience, maintenance
Polyurethane systems	Multipurpose sports halls	Seamless finish and durability
Outdoor acrylic systems	Recreational outdoor courts	Weather and substrate performance
Sand	Beach volleyball	Drainage, depth and maintenance

The selected system should be specified according to the intended sport, competition level, manufacturer requirements and applicable standards.

Floor Construction and Structural Coordination

A volleyball court may appear to be a simple finished floor, but the complete build-up can involve several layers.

A typical indoor sports floor may include:

Structural slab
Damp-proofing or moisture-control layer where required
Subfloor/system support
Shock-absorbing layer where specified
Sports flooring
Court markings
Protective finish where applicable

The actual floor build-up should be designed by the relevant structural and sports-flooring specialists.

Important Structural Detail

Volleyball posts often require sockets or fixing systems integrated into the floor.

These should be coordinated before slab casting.

In a multipurpose hall, the structural designer should also check that:

Post sockets do not conflict with reinforcement.
Floor boxes do not create trip hazards.
Removable covers are flush.
Other sports equipment does not interfere with the sockets.
Floor loading is appropriate for movable seating and equipment.

Indoor Volleyball Hall Planning

A volleyball court should be planned as part of a complete sports facility rather than as an isolated rectangle.

A basic indoor facility may include:

Entrance lobby
Reception/control point
Main sports hall
Volleyball court
Team changing rooms
Toilets
Accessible toilets
Equipment storage
First-aid/medical room
Officials’ facilities
Staff/admin area
Spectator seating where required
Service access
Fire exits
Circulation spaces
Plant/service spaces

The final accommodation schedule depends on the scale and function of the project.

Zoning a Volleyball Sports Facility

A useful architectural zoning strategy is to divide the building into three broad systems.

Zone 1: Public Zone

This may include:

Entrance
Lobby
Ticketing/reception
Spectator circulation
Public toilets
Seating
Refreshment facilities

Zone 2: Athlete Zone

This may include:

Changing rooms
Lockers
Showers
Team circulation
Warm-up
Playing area
First aid
Physiotherapy
Equipment storage

Zone 3: Service and Technical Zone

This may include:

Electrical rooms
HVAC plant
Storage
Maintenance access
Cleaning stores
Waste/service areas
Loading access

Separating these flows reduces conflict between players, spectators and service personnel.

Player Circulation

Player circulation should be direct.

A typical sequence can be:

Entrance → Changing Room → Athlete Corridor → Warm-Up → Playing Area

Spectators should ideally have a separate sequence:

Entrance → Lobby → Seating → Concourse → Exit

Service circulation can follow:

Service Entry → Storage/Back-of-House → Sports Hall

This approach makes the building easier to operate during competitions.

Spectator Planning

For larger volleyball venues, spectator planning becomes an important architectural component.

Consider:

Sightlines
Seating capacity
Accessible seating
Entry and exit routes
Concourse width
Toilets
Emergency evacuation
Security
Separation between public and athlete areas
Media positions where applicable

Spectator seating should not intrude into the required playing and free zones.

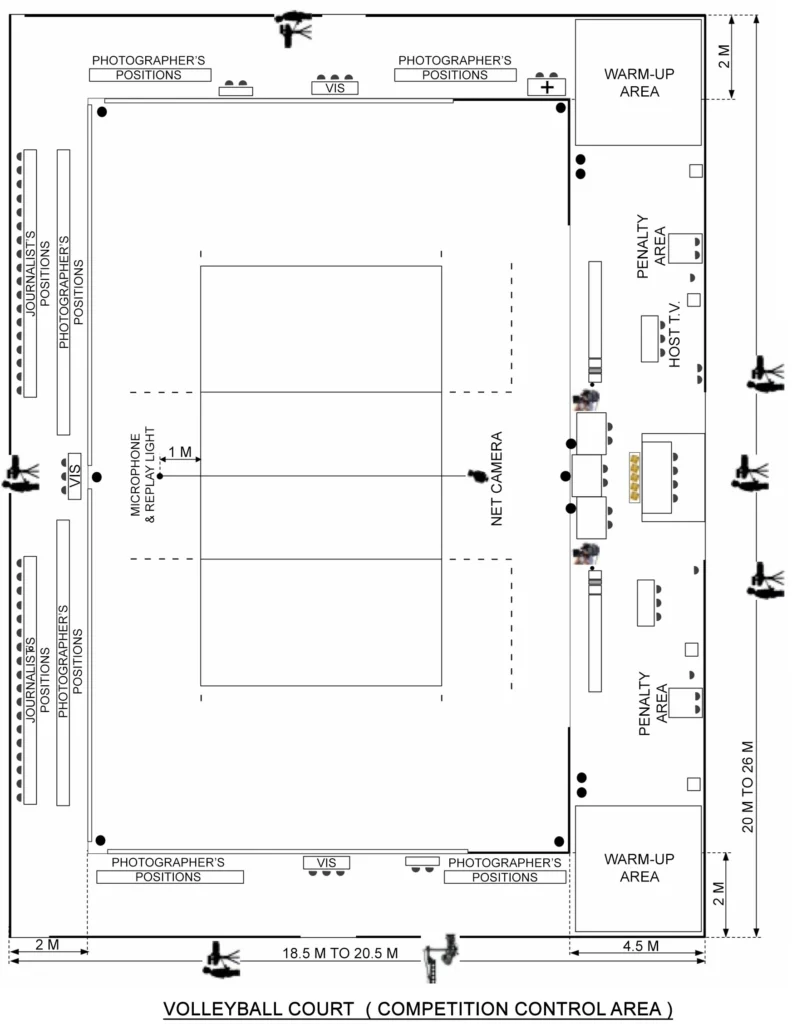

For international competition, FIVB venue layouts also include dedicated areas for officials, teams, technical staff, media, photographers, ball retrievers and other operational functions.

Accessibility

Accessibility should be incorporated from the beginning of the design rather than added after the sports hall is completed.

The applicable requirements depend on the country and jurisdiction.

In India, the National Building Code of India 2016 includes provisions for accessibility, fire and life safety, building services and general building requirements. Local development regulations and applicable accessibility legislation must also be checked for the particular project.

Accessible planning should consider:

Accessible approach routes
Entrance doors
Ramps/lifts where required
Accessible toilets
Accessible changing facilities
Spectator wheelchair spaces
Accessible routes to seating
Accessible routes to relevant sports areas
Clear signage
Emergency evacuation

Lighting Design for Volleyball Courts

Lighting must provide uniform visibility of the ball and players without producing distracting glare.

This is particularly important because volleyball involves rapid vertical movement of the ball.

The current FIVB 2025–2028 rules specify:

At least 300 lux generally

and:

At least 2,000 lux measured 1 m above the playing surface for FIVB, World and Official Competitions.

This is a major update from older versions of the Archi-Monarch article.

Lighting design should also consider:

Uniformity
Glare control
Colour rendering
Ball visibility
Camera requirements
Spectator comfort
Emergency lighting
Maintenance access

Avoid Direct Glare

Luminaires should not be positioned where players repeatedly look directly into the light source while tracking a high ball.

Architectural coordination should therefore involve:

Lighting designer + architect + structural engineer + HVAC consultant + sports consultant

rather than treating sports lighting as a final electrical layout.

Natural Daylight

Natural daylight can improve the architectural quality of a sports hall, but uncontrolled daylight may create glare and uneven illumination.

For volleyball facilities, large windows should therefore be evaluated for:

Solar orientation
Glare
Heat gain
Ball visibility
Shading
Blackout/control systems
Maintenance

A controlled daylight strategy is generally more useful than simply maximizing glazing.

For competition venues, the required lighting and event conditions should take precedence over an uncontrolled daylight strategy.

Ventilation and Indoor Climate

Volleyball halls can experience substantial internal heat gains because of:

Players
Spectators
Lighting
Equipment
Building envelope
Outdoor climate

The mechanical strategy should provide adequate fresh air and thermal comfort while avoiding conditions that interfere with play.

The design should consider:

Occupancy
Climate
Hall volume
Heat gains
Fresh-air requirements
Air distribution
Temperature control
Humidity
Energy consumption
Equipment maintenance

Air movement across the playing area should be carefully considered because excessive drafts can affect ball flight and player comfort.

The HVAC system should therefore be coordinated with the required clear volume.

Acoustics in Volleyball Hall Design

Sports halls commonly contain hard surfaces because they need to resist impact and heavy use.

These surfaces can produce:

Long reverberation
High background noise
Reflected speech
Poor announcement intelligibility
Player distraction

Acoustic treatment can therefore be incorporated at:

Roof/ceiling level
Upper wall surfaces
Selected wall panels
Spectator areas
Other appropriate non-impact zones

The acoustic strategy should balance sound absorption, durability and impact resistance.

The acoustic design of a sports hall should be treated separately from theatre or auditorium acoustics because the functional requirements are different.

Internal Wall Design

Sports-hall walls should be designed with impact and maintenance in mind.

Useful design considerations include:

Flush surfaces
Impact resistance
Limited protrusions
Appropriate colour contrast
Easy maintenance
Protected services
Durable lower wall finishes
Safe doors and frames

Columns should preferably be outside the critical playing envelope or protected with suitable padding where unavoidable.

Roof and Structural Design

Large sports halls commonly require long-span structures to reduce internal columns.

Possible structural systems include:

Steel portal frames
Steel trusses
Space frames
Long-span reinforced concrete systems
Composite structural systems

The appropriate solution depends on:

Span
Site conditions
Budget
Seismic requirements
Wind loads
Roof loading
Local construction practices
Fire strategy
Maintenance requirements

The most important volleyball-specific principle is that structural elements must not reduce the required clear playing volume.

Roof Design Considerations

The roof should accommodate:

Structural framing
Insulation
Waterproofing
Lighting
HVAC
Fire protection
Acoustic treatment
Maintenance access
Sports equipment
Roof drainage

The underside should preferably present a visually controlled background so that players can track the ball without excessive visual distraction.

Outdoor Volleyball Court Design

Outdoor volleyball requires a different architectural approach.

For general outdoor recreation, the designer should consider:

Solar exposure
Wind
Drainage
Surface temperature
Rainfall
Flooding
Fencing
Lighting
Shade
Seating
Landscape
Security

The current FIVB indoor rules should not simply be copied onto an outdoor court.

For example, FIVB specifies that outdoor courts may have a slope of up to 5 mm per metre for drainage under its rules, while the detailed requirements for beach volleyball are governed separately.

Beach Volleyball vs Indoor Volleyball

Indoor and beach volleyball should not be treated as the same court type.

Element	Indoor Volleyball	Beach Volleyball
Court	18 × 9 m	16 × 8 m
Surface	Sports flooring	Sand
Environment	Controlled indoor	Outdoor
Main climate concern	Thermal comfort/ventilation	Sun, wind, rain
Drainage	Building/site drainage	Sand and subgrade drainage
Clear height	Relevant indoors	Open-air condition
Net	2.43 m men / 2.24 m women	Different discipline but comparable senior net heights
Main planning issue	Building envelope	Site and environmental exposure

For an architecture article specifically about volleyball court design, indoor and beach facilities should be presented as separate design typologies rather than mixed together.

Site Planning for Outdoor Volleyball

For an outdoor court, site selection should consider:

Sun

Study morning and afternoon glare.

Wind

Strong crosswinds can affect play and player comfort.

Drainage

The court should not become a low point where rainwater collects.

Access

Provide safe pedestrian access and maintenance access.

Landscape

Trees can provide shade but should not create:

Falling branches
Root damage
Excessive debris
Uncontrolled shading
Obstructions around the court

Security

Where appropriate, provide perimeter fencing, controlled gates and suitable lighting.

Multipurpose Sports Hall Integration

Volleyball courts are frequently incorporated into multipurpose halls alongside:

Basketball
Badminton
Handball
Futsal
Table tennis
Fitness activities
Community events

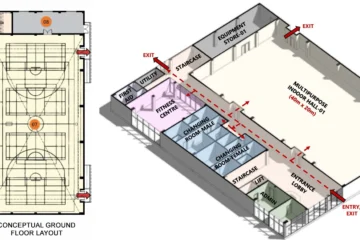

Archi-Monarch already has a dedicated article on Multipurpose Sports Hall Design Standards, making this an important internal-link opportunity.

The main architectural challenge is coordination of:

Different court dimensions
Different clear-height requirements
Multiple line markings
Retractable equipment
Movable partitions
Seating
Storage
Lighting
Flooring

A volleyball court should not be placed into a multipurpose hall merely because the geometric dimensions appear to fit.

Multi-Sport Court Markings

When multiple sports share one floor, line markings can become visually confusing.

A good design should use:

Distinct colours
Consistent line widths
Controlled hierarchy
Clearly documented drawing standards
Appropriate contrast

The final line-marking schedule should be coordinated before flooring installation.

This is particularly important when permanent markings are being incorporated into a sports-flooring system.

Equipment Storage

Sports equipment should not be stored in circulation routes or beside the playing court.

Provide dedicated storage for:

Volleyball posts
Nets
Antennae
Balls
Ball carts
Protective padding
Portable seating
Retractable equipment
Cleaning equipment
Temporary partitions

Storage should be large enough for the actual equipment inventory rather than being treated as an afterthought.

First-Aid and Medical Facilities

A sports facility should provide an appropriate first-aid/medical provision based on its scale and use.

Its location should allow rapid access from:

Playing area
Athlete circulation
Ambulance/service access where required

For larger facilities, a dedicated medical or physiotherapy space may be appropriate.

Safety Considerations

Safety should be considered at both court and building scales.

Court-level safety

Adequate free zone
Padded net posts where required
Safe flooring
No sharp edges
Protected structural elements
Flush floor equipment
Controlled equipment storage

Building-level safety

Fire exits
Emergency lighting
Fire alarm
Accessible egress
Signage
Crowd management
Safe stairs and ramps
Emergency access
First-aid provision

Local fire and life-safety regulations must be checked for the specific project.

Volleyball Court Design Workflow for Architecture Students

A practical design process can follow these steps.

Step 1: Define the Level of Play

Determine whether the facility is:

Recreational
School
College
Club
Regional
National
International

Step 2: Establish the Court

Draw:

18 × 9 m

Step 3: Add the Free Zone

Start with the applicable free-zone requirement.

Step 4: Add Clear Height

Establish the required unobstructed volume above the court.

Step 5: Place the Net

Coordinate:

Centre line
Net
Posts
Sockets

Step 6: Add Player Areas

Plan:

Benches
Warm-up
Substitution
Libero-related zones
Officials

Step 7: Add Spectator Areas

Develop seating and circulation according to project capacity.

Step 8: Add Support Spaces

Include:

Changing rooms
Toilets
Accessible facilities
Storage
First aid
Administration

Step 9: Coordinate Services

Overlay:

Lighting
HVAC
Electrical
Fire protection
Acoustics

Step 10: Coordinate Structure

Check:

Column locations
Roof spans
Trusses
Beam depths
Equipment supports
Post sockets

Step 11: Check Safety and Accessibility

Review applicable:

Building regulations
Fire regulations
Accessibility standards
Sports governing-body requirements

Step 12: Prepare the Final Drawing

The architectural drawing should contain:

Dimensioned plan
Court markings
Free zone
Equipment
Sections
Clear height
Flooring build-up
Structural coordination
Lighting
Relevant ancillary spaces

Common Volleyball Court Design Mistakes

1. Treating 18 × 9 m as the total required area

The court is only the playing surface.

2. Ignoring the free zone

The free zone is essential for safe player movement.

3. Using outdated FIVB values

Always verify the current edition of the FIVB rules.

4. Designing the roof without checking the playing volume

A beam or light fitting can reduce the effective clear height.

5. Placing columns too close to the court

Structural elements can create serious safety risks.

6. Poor lighting positioning

A technically bright hall can still have poor sports visibility if glare is uncontrolled.

7. Poor ventilation coordination

HVAC ducts and air movement should be considered early.

8. Ignoring acoustics

Hard sports-hall surfaces can create excessive reverberation.

9. Forgetting storage

Equipment often ends up in circulation spaces when storage is undersized.

10. Treating accessibility as an afterthought

Accessible routes should be integrated into the main circulation strategy.

11. Mixing indoor and beach volleyball requirements

They are different disciplines and should be designed separately.

12. Using old SAI dimensions as universal current requirements

SAI guidance can be useful for Indian sports-facility reference, but project teams should verify current requirements and the specific competition level before treating them as mandatory.

Example: Indian Sports-Facility Planning

The Sports Authority of India has published volleyball-facility guidance that distinguishes recreational, club/regional, national and international levels. Its published table gives the same 18 × 9 m court but progressively larger surrounding spaces and clear heights according to competition level.

This is useful architecturally because it demonstrates an important principle:

The playing court remains relatively constant, while the supporting architectural envelope expands as the level of competition increases.

For an Indian project, the design team should therefore consider FIVB requirements together with applicable NBC provisions, state/local development regulations, fire requirements, accessibility requirements and the client’s intended level of competition.

Architectural Principles for Better Volleyball Court Design

A well-designed volleyball facility should achieve five objectives.

Function

Every space should support the movement and operation of the sport.

Safety

Players, spectators and staff should move without unnecessary hazards.

Visibility

Lighting, colours, clear height and architectural surfaces should support ball tracking.

Flexibility

Multipurpose facilities should allow equipment and seating to be adapted without compromising the volleyball playing environment.

Maintainability

Floors, lighting, HVAC, equipment and building finishes should be accessible for inspection and replacement.

Volleyball Court Design: Quick Reference

Design Item	Key Requirement
Court size	18 × 9 m
Court area	162 m²
Each half	9 × 9 m
General free zone	Minimum 3 m
Court + minimum free zone	24 × 15 m
FIVB competition side free zone	5 m
FIVB competition end free zone	6.5 m
FIVB court + free zone	31 × 19 m
General clear height	Minimum 7 m
FIVB competition clear height	Minimum 12.5 m
Attack line	3 m from centre-line axis
Line width	5 cm
Men’s net height	2.43 m
Women’s net height	2.24 m
Net width	1 m
Net length	9.50–10 m
Post height	2.55 m
General lighting	Minimum 300 lux
FIVB World/Official competition lighting	Minimum 2,000 lux at 1 m above playing surface

Why Volleyball Court Design Matters in Architecture

Volleyball demonstrates an important architectural principle: sports design is three-dimensional.

A successful sports facility cannot be designed only through a plan drawing.

The architect must understand:

Horizontal dimensions
Vertical clearance
Player movement
Equipment
Structure
Lighting
Acoustics
Mechanical systems
Spectator movement
Accessibility
Safety
Maintenance

The most useful volleyball court drawing is therefore not simply a dimensioned rectangle. It is a coordinated architectural system showing how the sport operates within the building.

FAQs

What is the standard size of a volleyball court?

The standard indoor volleyball playing court is 18 m long × 9 m wide. It is divided by the centre line into two equal 9 × 9 m halves.

How much space is required around a volleyball court?

The current FIVB rules specify a minimum 3 m free zone around the court for general play. FIVB World and Official Competitions require 5 m along the sides and 6.5 m behind the end lines.

What is the minimum ceiling height for a volleyball court?

The FIVB minimum free playing height is 7 m for general play. For FIVB World and Official Competitions, the required unobstructed height is 12.5 m.

What is the volleyball net height?

The official senior net height is 2.43 m for men and 2.24 m for women.

What is the standard volleyball court area?

The 18 × 9 m playing court has an area of 162 m². This does not include the surrounding free zone or other facility spaces.

What flooring is best for an indoor volleyball court?

Indoor competition courts generally use suitable wooden or synthetic sports-flooring systems. For FIVB World and Official Competitions, the surface must comply with the applicable FIVB requirements and approval conditions.

What lighting is required for volleyball?

The current FIVB rules specify at least 300 lux generally and at least 2,000 lux measured 1 m above the playing surface for FIVB World and Official Competitions.

Can a volleyball court be part of a multipurpose sports hall?

Yes. Volleyball courts are commonly incorporated into multipurpose sports halls. However, the hall must accommodate the volleyball free zone, clear height, equipment, lighting, flooring, circulation and the requirements of other sports sharing the facility.

What should architects consider when designing a volleyball court?

Architects should consider court dimensions, free zones, clear height, flooring, net posts, lighting, ventilation, acoustics, structural coordination, player circulation, spectators, accessibility, safety, storage and support facilities.

Is an outdoor volleyball court the same as an indoor volleyball court?

No. Indoor volleyball and beach volleyball have different court sizes, surfaces and environmental requirements. Outdoor recreational volleyball also requires additional consideration of sun, wind, drainage, weather and landscape.

Conclusion

Volleyball court design begins with the 18 × 9 m playing court, but good architectural design extends far beyond the painted boundaries.

The free zone, clear height, net system, flooring, lighting, ventilation, acoustics, structure, accessibility, player circulation, spectator planning and support spaces must work together as one coordinated facility.

For general indoor volleyball, the minimum 3 m free zone and 7 m clear playing height provide an important starting point. For FIVB World and Official Competitions, the requirements increase substantially, including 5 m side free zones, 6.5 m end free zones, 12.5 m clear height and at least 2,000 lux on the playing area.

For architects, the key lesson is simple:

Design the volleyball court as a complete spatial system, not merely as an 18 × 9 m rectangle.

Always verify the current governing-body rules, applicable building regulations, accessibility provisions and local authority requirements before using dimensions for construction or an official competition facility.
