Introduction

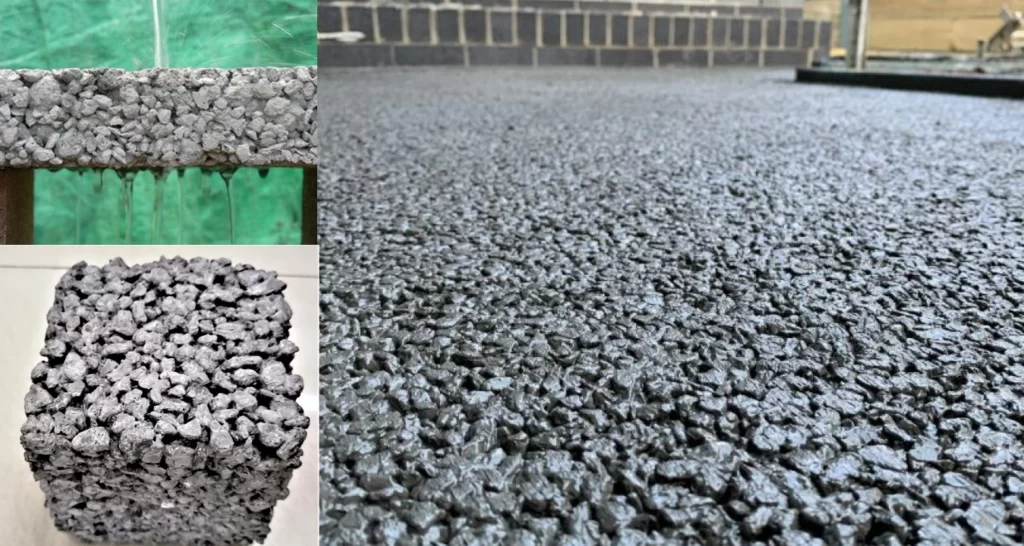

Permeable concrete, also known as porous concrete or pervious concrete, is a special type of concrete that is designed to allow water to pass through it.
This is achieved by reducing or eliminating the sand and fine aggregates in the mix, resulting in a highly porous material.
The pores in the concrete allow water to drain through, which helps to prevent flooding, manage stormwater runoff, and recharge groundwater.
Importance of permeable concrete in modern construction
Permeable concrete has become increasingly important in modern construction due to its many benefits. One of the main benefits of permeable concrete is its ability to manage stormwater runoff.
Traditional concrete surfaces, such as driveways and parking lots, can create large amounts of runoff that can contribute to flooding and erosion.
Permeable concrete helps to mitigate these issues by allowing water to pass through it and be absorbed into the ground below.
Permeable concrete also helps to recharge groundwater, which is important for maintaining healthy ecosystems and providing a sustainable source of water.
In addition, permeable concrete can reduce the need for costly infrastructure projects, such as stormwater management systems, which can be expensive to build and maintain.
Finally, permeable concrete can also improve the aesthetics of a site by reducing the amount of impervious surfaces and creating a more natural and green environment.
Overall, permeable concrete is an important tool for creating more sustainable and resilient communities.
1) Types of Permeable Concrete
Different types of permeable concrete and their features, benefits, and limitations:
Porous Concrete:
- Features: Porous concrete has a relatively high porosity, with interconnected voids ranging from 15% to 30%. It is made with a low cement content and a high percentage of coarse aggregates, resulting in a rough, open texture.
- Benefits: Porous concrete provides good drainage and infiltration, making it suitable for use in areas with low to moderate traffic loads. It also allows for the growth of vegetation, which can improve the aesthetics and ecological value of a site.
- Limitations: Porous concrete may not be suitable for high traffic areas, as it can become clogged with debris and sediment over time. It is also more susceptible to freeze-thaw damage than traditional concrete.
Pervious Concrete:
- Features: Pervious concrete has a high porosity, with interconnected voids ranging from 15% to 35%. It is made with a low cement content and a high percentage of coarse aggregates, as well as a specially designed admixture that helps to reduce the amount of paste in the mix.
- Benefits: Pervious concrete provides excellent drainage and infiltration, making it suitable for use in areas with high traffic loads. It also helps to reduce heat island effects and provides good skid resistance.
- Limitations: Pervious concrete can be more expensive to install than traditional concrete, due to the specialized equipment and materials required. It may also require more frequent maintenance, as it can become clogged with debris and sediment.
No-Fines Concrete:
- Features: No-fines concrete has a low porosity, with voids ranging from 5% to 15%. It is made with a low cement content and a high percentage of coarse aggregates, but no fine aggregates.
- Benefits: No-fines concrete provides good drainage and infiltration, making it suitable for use in areas with low to moderate traffic loads. It is also more durable and resistant to freeze-thaw damage than porous or pervious concrete.
- Limitations: No-fines concrete may not be suitable for areas with high traffic loads, as it can become damaged or worn over time. It also does not provide the same level of water storage and infiltration as porous or pervious concrete.
Overall, the type of permeable concrete used will depend on the specific needs and requirements of the project, including traffic loads, drainage needs, and cost considerations.
2) Benefits of Permeable Concrete
Environmental, Economic, and Social Benefits of Permeable Concrete:
Environmental Benefits:
- Stormwater Management: Permeable concrete helps to manage stormwater by allowing it to infiltrate into the ground, which reduces the volume and velocity of runoff. This helps to prevent erosion, flooding, and water pollution.
- Reduction in Runoff: Permeable concrete helps to reduce the amount of runoff from paved surfaces, which can contribute to flooding, erosion, and water pollution. By allowing water to infiltrate into the ground, permeable concrete also helps to replenish groundwater supplies.
- Recharge of Groundwater: Permeable concrete helps to recharge groundwater by allowing water to infiltrate into the soil, where it can be stored for later use. This is important for maintaining healthy ecosystems and providing a sustainable source of water.
Economic Benefits:
- Reduced Infrastructure Costs: Permeable concrete can reduce the need for costly infrastructure projects, such as stormwater management systems, which can be expensive to build and maintain. This can result in significant cost savings for municipalities and property owners.
- Minimized Maintenance Costs: Permeable concrete requires less maintenance than traditional concrete, as it does not need to be cleaned as often and is less susceptible to damage from freeze-thaw cycles. This can result in lower maintenance costs over the life of the pavement.
Social Benefits:
- Safer and More Sustainable Communities: Permeable concrete helps to create safer and more sustainable communities by reducing the risk of flooding and erosion, improving water quality, and promoting the growth of vegetation.
- It also helps to reduce heat island effects and improve the aesthetics of a site, which can make it more attractive to residents and visitors.
Overall, the use of permeable concrete can provide a wide range of benefits for communities, including environmental, economic, and social benefits.
By managing stormwater runoff, reducing the need for infrastructure, and creating safer and more sustainable communities, permeable concrete is an important tool for building a more resilient and sustainable future.
3) Applications of Permeable Concrete
Residential Applications:
- Driveways: Permeable concrete can be used for residential driveways, allowing rainwater to infiltrate into the ground instead of creating runoff.
- Patios: Permeable concrete can also be used for patios, creating a more sustainable and environmentally friendly outdoor living space.
- Walkways: Permeable concrete can be used for walkways, reducing the risk of slip and fall accidents and improving water infiltration.
Commercial Applications:
- Parking Lots: Permeable concrete can be used for parking lots, reducing the risk of flooding and improving water quality.
- Sidewalks: Permeable concrete can be used for sidewalks, improving pedestrian safety and reducing runoff.
- Roadways: Permeable concrete can be used for roadways, improving water infiltration and reducing the risk of flooding.
Industrial Applications:
- Airport Runways: Permeable concrete can be used for airport runways, improving water infiltration and reducing the risk of hydroplaning.
- Ports: Permeable concrete can be used for ports, improving water quality and reducing the risk of erosion.
- Loading Docks: Permeable concrete can be used for loading docks, improving safety and reducing the risk of runoff.
Overall, permeable concrete can be used in a wide range of applications, from residential driveways to industrial ports.
By improving water infiltration, reducing the risk of flooding, and promoting a more sustainable and environmentally friendly built environment, permeable concrete is an important tool for creating a more resilient and sustainable future.
4) Design Considerations
Design and Installation Considerations for Permeable Concrete:
Factors to Consider in Design:
- Climate: The climate in which the permeable concrete will be installed must be taken into consideration, as it can affect the performance and durability of the pavement. For example, freeze-thaw cycles can be a concern in colder climates, while intense rainfall may be a concern in tropical climates.
- Soil Type: The soil type can also affect the performance of permeable concrete, as it influences the infiltration rate and the ability of the pavement to support traffic loads. Soil with a high clay content may have a lower infiltration rate, while soil with a high sand content may have a higher infiltration rate.
- Traffic Load: The design of permeable concrete must also take into consideration the expected traffic load. This includes both the frequency and weight of vehicles, as this can affect the durability and stability of the pavement.
Mix Design and Installation Techniques:
- Mix Design: The mix design of permeable concrete is important, as it affects the permeability, strength, and durability of the pavement. The use of larger aggregate and lower cement content can improve permeability, while the use of fibers and other additives can improve strength and durability.
- Installation Techniques: Proper installation techniques are important for the performance and longevity of permeable concrete. This includes proper preparation of the subgrade, placement of the base layer, and compaction of the pavement.
Maintenance Requirements:
- Regular Inspection: Permeable concrete should be inspected regularly to ensure that it is functioning properly and to identify any issues that may require maintenance.
- Cleaning: Permeable concrete may require periodic cleaning to remove debris and maintain the permeability of the pavement.
- Repairs: Any damage to permeable concrete should be repaired promptly to prevent further damage and maintain the integrity of the pavement.
Overall, proper design and installation techniques are critical for the performance and longevity of permeable concrete.
By taking into consideration factors such as climate, soil type, and traffic load, and using appropriate mix designs and installation techniques, permeable concrete can be a durable and effective solution for managing stormwater runoff.
4) Comparison with Traditional Concrete
Comparison of Permeable Concrete with Traditional Concrete:
Cost: Permeable concrete is generally more expensive than traditional concrete due to the additional materials and installation techniques required. However, the cost can vary depending on the specific application and location.
Durability: Permeable concrete can be as durable as traditional concrete, but its durability depends on factors such as the mix design, installation, and maintenance. Traditional concrete is generally more durable due to its higher compressive strength and density.
Performance: Permeable concrete performs differently than traditional concrete in terms of its ability to manage stormwater runoff. While traditional concrete generates runoff, permeable concrete allows water to infiltrate into the ground, reducing the risk of flooding and improving water quality.
Environmental Impact of Traditional Concrete and Role of Permeable Concrete in Sustainable Construction:
Environmental Impact: The production of traditional concrete is a significant source of carbon emissions, and the extraction and transportation of raw materials can also have negative environmental impacts. In addition, traditional concrete generates runoff, which can contribute to water pollution and erosion.
Sustainable Construction: Permeable concrete can play a significant role in sustainable construction by reducing stormwater runoff, improving water quality, and promoting groundwater recharge. In addition, permeable concrete can also help reduce the urban heat island effect and improve air quality.
Overall, while permeable concrete may be more expensive and require additional maintenance compared to traditional concrete, its environmental benefits and role in sustainable construction make it an important tool for promoting a more resilient and sustainable built environment.
5) Case Studies
Examples of Successful Permeable Concrete Projects:
Miller’s Creek Office Park, Virginia: This project used pervious concrete for parking lots, sidewalks, and entrances. The permeable concrete allowed for stormwater infiltration, reducing runoff and improving water quality. The project was successful in meeting local stormwater management requirements and received recognition for sustainable design.
Seattle Public Utilities Building, Washington: The parking lot and sidewalks of this building were constructed using pervious concrete. The project reduced stormwater runoff and helped improve groundwater recharge in the area. It was also recognized for its sustainable design and received multiple awards.
Sustainable Site at Georgia Tech, Georgia: This project used pervious concrete for sidewalks and plazas. The permeable concrete reduced stormwater runoff and helped improve water quality. In addition, the project achieved LEED Platinum certification and received recognition for its sustainable design.
Atlanta Beltline, Georgia: The Beltline trail in Atlanta was constructed using pervious concrete, which allowed for stormwater infiltration and helped reduce the risk of flooding in the area. The project also promoted sustainability and created a safe and accessible recreational space for the community.
Benefits and Outcomes of Successful Permeable Concrete Projects:
Environmental Benefits: The use of permeable concrete in successful projects can help reduce stormwater runoff, improve water quality, and promote groundwater recharge. This can help mitigate the impacts of urbanization on the natural environment and promote sustainability.
Economic Benefits: Successful permeable concrete projects can also provide economic benefits, such as reduced infrastructure costs and minimized maintenance costs. In addition, these projects may help meet regulatory requirements and avoid potential fines for non-compliance.
Social Benefits: Permeable concrete projects can create safer and more sustainable communities by reducing the risk of flooding and promoting sustainable design. In addition, these projects can also create recreational spaces for the community and promote active transportation.
6) Future of Permeable Concrete
Current Trends and Future Developments in the Use of Permeable Concrete:
Integration with Green Infrastructure: There is a growing trend towards integrating permeable concrete with green infrastructure, such as bioswales and rain gardens, to improve stormwater management and promote sustainability.
Increased Use in Urban Areas: Permeable concrete is increasingly being used in urban areas to reduce the risk of flooding and improve water quality.
Expansion to New Applications: There is potential for the use of permeable concrete in new applications, such as bridge decks and retaining walls, as research and development continue in the field.
Emerging Technologies and Innovations in the Field:
Alternative Materials: Researchers are exploring the use of alternative materials, such as recycled aggregates and geosynthetics, to improve the performance and durability of permeable concrete.
Advanced Mix Designs: Advanced mix designs, such as self-compacting permeable concrete, are being developed to improve the installation and performance of permeable concrete.
Integration with Smart Technologies: There is potential for permeable concrete to be integrated with smart technologies, such as sensors and monitoring systems, to improve maintenance and performance.
Potential for Wider Adoption and Mainstream Use of Permeable Concrete:
Regulatory Support: Permeable concrete is increasingly being supported by regulatory frameworks, such as stormwater management regulations and green building codes, which may encourage wider adoption.
Education and Awareness: Education and awareness campaigns can help increase knowledge and understanding of the benefits of permeable concrete, which may encourage wider adoption.
Cost-Competitiveness: As the cost of permeable concrete decreases and becomes more cost-competitive with traditional concrete, wider adoption may become more feasible.
7) Advantages & Disadvantages of Permeable Concrete
Advantages of Permeable Concrete:
Stormwater Management: Permeable concrete allows rainwater to infiltrate into the ground, reducing stormwater runoff and improving water quality.
Groundwater Recharge: Permeable concrete can promote groundwater recharge by allowing water to percolate through the pavement and recharge underlying aquifers.
Reduced Urban Heat Island Effect: Permeable concrete can reduce the urban heat island effect by allowing water to evaporate from the surface, cooling the surrounding environment.
Improved Skid Resistance: Permeable concrete can provide improved skid resistance compared to traditional concrete, reducing the risk of accidents.
Sustainable Design: Permeable concrete promotes sustainable design by reducing the environmental impact of urbanization.
Disadvantages of Permeable Concrete:
Clogging and Maintenance: Permeable concrete may require more maintenance compared to traditional concrete, as the porous structure can become clogged with sediment and debris over time.
Limited Load-Bearing Capacity: Permeable concrete may have limited load-bearing capacity, which may limit its use in high traffic areas.
Limited Durability: Permeable concrete may have limited durability compared to traditional concrete, which may require more frequent maintenance and replacement.
Higher Cost: Permeable concrete may have a higher initial cost compared to traditional concrete, although this cost may be offset by reduced infrastructure costs and maintenance over time.
Limited Availability: Permeable concrete may not be widely available in all areas, which may limit its use in some projects.
It is important to note that the advantages and disadvantages of permeable concrete may vary depending on the specific application and project requirements.
A thorough analysis of the benefits and drawbacks should be conducted before deciding whether to use permeable concrete for a given project.
8) Conclusion
In conclusion, permeable concrete is a sustainable solution that offers a range of benefits for modern construction projects. It allows for improved stormwater management, groundwater recharge, reduced urban heat island effect, and improved skid resistance, while promoting sustainable design.
However, there are also some potential drawbacks to consider, including clogging and maintenance requirements, limited load-bearing capacity and durability, higher cost, and limited availability.
Despite these challenges, the use of permeable concrete is a growing trend in construction and infrastructure projects, with continued research and development leading to new applications and emerging technologies.
With the right design considerations and proper maintenance, permeable concrete can be a valuable solution for promoting sustainability and improving the resilience of our built environment.
