Roofs play a significant role in architecture, both functionally and aesthetically. They provide shelter, protect the building from weather elements, and contribute to the overall architectural style and character.

A roof is the uppermost covering or structure of a building that provides protection and shelter from various weather elements such as rain, sunlight, wind, snow, and other environmental factors. It serves as a crucial component of a building’s structure, acting as a barrier between the interior space and the outside world.

Roofs are typically designed to be durable, weather-resistant, and capable of withstanding the specific climate conditions of a particular region. They are constructed using a variety of materials, including asphalt shingles, metal, tiles, thatch, concrete, or composite materials.

The primary functions of a roof include:

Protection: The roof acts as a shield, protecting the building and its occupants from rain, snow, hail, wind, and direct sunlight. It prevents water from entering the structure, minimizing the risk of water damage, leaks, and structural deterioration.
Insulation: A well-insulated roof helps regulate the temperature inside the building by preventing heat transfer between the interior and exterior. This can contribute to energy efficiency, reducing the need for excessive heating or cooling and lowering utility costs.
Structural Support: Roofs provide structural stability to the building, distributing the weight of the roof itself, as well as any additional loads such as snow accumulation or equipment installed on the roof.
Aesthetics: The design, style, and materials of a roof contribute significantly to the overall appearance and curb appeal of a building. Different roof types can enhance the architectural style and visual appeal of a structure.
Longevity: A well-maintained roof can have a prolonged lifespan, ensuring the longevity of the building. Regular inspections and maintenance help identify and address any issues early on, preventing potential damage and extending the roof’s life.

In conclusion, a roof is a vital component of any building, providing protection, insulation, structural support, and aesthetic value. Choosing the right type of roof and maintaining it properly are essential for the overall durability, safety, and functionality of a structure.

1) Terminology of roofs

To understand the roofs first, we have to be familiar with the basic roof structure terminology. Here are the lists and definitions of roofs structure terminology:

Ridge: The highest point where two sloping roof sections meet.
Eaves: The lower edges of a roof that overhang beyond the walls, providing additional protection from the elements.
Valley: The internal angle or intersection formed when two roof slopes meet.
Flashing: Thin metal strips or sheets used to prevent water from seeping into vulnerable areas, such as roof joints, chimneys, or skylights.
Soffit: The exposed underside of the eaves, often ventilated to allow airflow into the roof area.
Fascia: A horizontal board or panel installed along the edge of the roof to cover the ends of the rafters and provide a finished appearance.
Underlayment: A layer of material (such as felt or synthetic membrane) installed on the roof deck before the final roofing material to provide an additional barrier against water and moisture.
Dormer: A vertical window that protrudes from a sloping roof, often with its own small roof structure.
Gutter: A trough along the edge of the roof that collects rainwater and channels it away from the building through downspouts.
Saddle: A small raised area on a roof, typically used to divert water around an obstacle like a chimney or vent pipe.
Roof Deck: The structural base or foundation of the roof, typically made of plywood, oriented strand board (OSB), or similar materials.
Pitch: The slope or steepness of a roof, expressed as a ratio of vertical rise to horizontal run.
Rafter: The supporting beams or framing elements that make up the roof’s structure, typically angled to form the roof slope.
Hip: The external angle formed by the intersection of two roof slopes that meet at a ridge.
Truss: A pre-fabricated structural framework made of wood or metal, designed to support the roof and distribute its weight to the walls or supporting structure.

These terms are commonly used when discussing roof design, construction, and maintenance. Familiarity with these terms can help in understanding roofing concepts, communicating with professionals, and describing specific features or issues related to roofs.

2) Types of roofs

If you are going to construct a house then you have to know the different types of roofs so that you pick good roofs for your dream house that give a good appearance and more space.

Actually, the roofs have different types. Here are the main types of roofs:

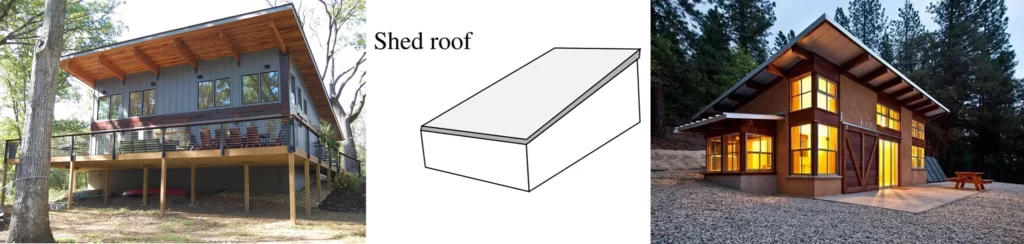

i) Shed Roof

A shed roof, also known as a mono-pitch roof or lean-to roof, is a simple roof design that features a single sloping plane that slants downward from one side of the building to another.

The slope is typically steeper than other roof types, creating a shed-like appearance. Shed roofs are often used for smaller structures, additions, or as an architectural feature in contemporary designs.

Advantages of Shed Roofs:

Ease of Construction: Shed roofs are relatively straightforward to construct compared to more complex roof designs. The single-sloping plane requires less framing and fewer materials, resulting in a cost-effective and time-efficient construction process.
Efficient Water Drainage: The steep slope of a shed roof allows for efficient water drainage. Rainwater quickly runs off the roof, reducing the risk of water pooling or leaks. This makes shed roofs suitable for regions with heavy rainfall or areas where water accumulation can be a concern.
Versatile Design Options: Shed roofs offer flexibility in design and can be adapted to various architectural styles. They can be combined with other roof types or integrated into larger structures, allowing for interesting and unique building compositions.
Integration with Solar Panels: The simple and unobstructed design of a shed roof makes it ideal for installing solar panels. The steep slope and orientation of the roof provide an optimal angle for harnessing solar energy, maximizing the efficiency of solar power systems.

Disadvantages of Shed Roofs:

Limited Ceiling Height: The slope of a shed roof reduces the ceiling height on one side of the building. This may impact the interior space, particularly in areas closer to the lower side of the roof. Careful consideration is needed for functional layouts and taller items within the structure.
Limited Attic or Storage Space: Shed roofs typically do not provide much attic or storage space compared to roofs with multiple slopes. The steep slope restricts the usable space under the roof, making it less suitable for structures requiring significant storage capacity.

Applications in Construction:

Shed roofs have various applications in construction projects, including:

Sheds and Small Structures: Shed roofs are commonly used in standalone sheds, storage buildings, garden structures, and small utility buildings. The simple design and cost-effective construction make them a practical choice for these purposes.
Additions and Extensions: Shed roofs are frequently utilized for additions or extensions to existing structures. They can be attached to the main building, providing additional space for rooms, porches, or covered outdoor areas.
Contemporary Architecture: Shed roofs are popular in contemporary or modern architectural designs. Their clean lines and minimalist aesthetic contribute to the sleek and streamlined appearance of contemporary homes or commercial buildings.
Greenhouses and Garden Structures: The slanted slope of a shed roof makes it suitable for greenhouses and garden structures, allowing for efficient water drainage and optimal sunlight exposure for plants.

In summary, shed roofs offer ease of construction, efficient water drainage, design versatility, and integration with solar panels. However, they may result in limited ceiling height and storage space.

Shed roofs find applications in various construction projects, ranging from small structures and additions to contemporary architectural designs and garden-related constructions.

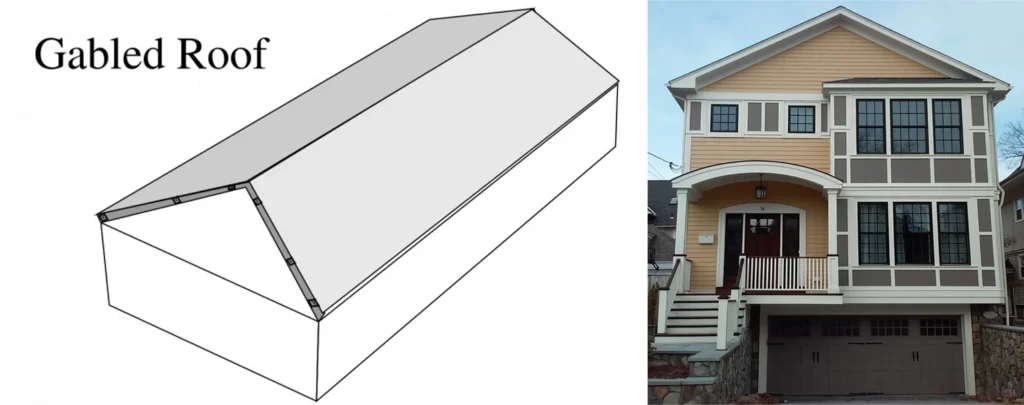

ii) Gabled Roof

A gabled roof is a type of roof design that consists of two sloping roof sections that meet at a central ridge, forming a triangular shape at the ends of the building.

It is one of the most common and recognizable roof styles in residential construction. The two sloping sides of the roof are typically of the same length and pitch, creating a symmetrical appearance.

Advantages of Gabled Roofs:

Aesthetic Appeal: Gabled roofs have a classic and timeless look that can enhance the overall architectural style and curb appeal of a building. They are popular in a variety of architectural designs, including Colonial, Victorian, and Craftsman.
Excellent Water Runoff: The steep slope of gabled roofs allows rainwater and snow to easily run off, minimizing the risk of water pooling and leaks. This makes gabled roofs particularly suitable for regions with heavy rainfall or areas prone to snow accumulation.
Increased Attic Space: The triangular shape of gabled roofs creates ample attic space, which can be utilized for storage, additional living areas, or HVAC equipment installation. The higher pitch of the roof provides more headroom and allows for better ventilation in the attic.
Option for Gable Windows: Gabled roofs often feature gable ends, which provide an opportunity to incorporate gable windows. These windows not only enhance natural light and ventilation but also add architectural interest and visual appeal to the building.

Disadvantages of Gabled Roofs:

Vulnerability to High Winds: Gabled roofs can be more susceptible to wind damage compared to other roof styles, especially if they are not properly braced or reinforced. The triangular shape creates larger surfaces for wind to exert force, which can result in uplift or structural damage during severe storms or hurricanes.
Limited Space for Eaves: The sloping nature of gabled roofs limits the width of the eaves, which can reduce the amount of shade and protection they offer to the building’s exterior walls. This may result in increased exposure to sunlight, rain, and other elements.
Maintenance Challenges: Gabled roofs have more complex designs compared to simpler roof styles, which can make maintenance and repairs more challenging. The presence of multiple roof planes and valleys may require more frequent inspections and attention to prevent water infiltration or deterioration.

Applications in Construction:

Gabled roofs are widely used in residential construction for houses, cottages, and smaller structures. They are versatile and can accommodate various roofing materials, such as asphalt shingles, metal panels, clay or concrete tiles, and wood shakes.

Gabled roofs can be customized to suit different architectural styles and can be adapted for both traditional and contemporary designs.

In conclusion, gabled roofs offer aesthetic appeal, efficient water runoff, increased attic space, and the option for gable windows. However, they may be more vulnerable to high winds and require proper maintenance.

Gabled roofs find extensive applications in residential construction and are a popular choice for homeowners seeking a classic and versatile roof design.

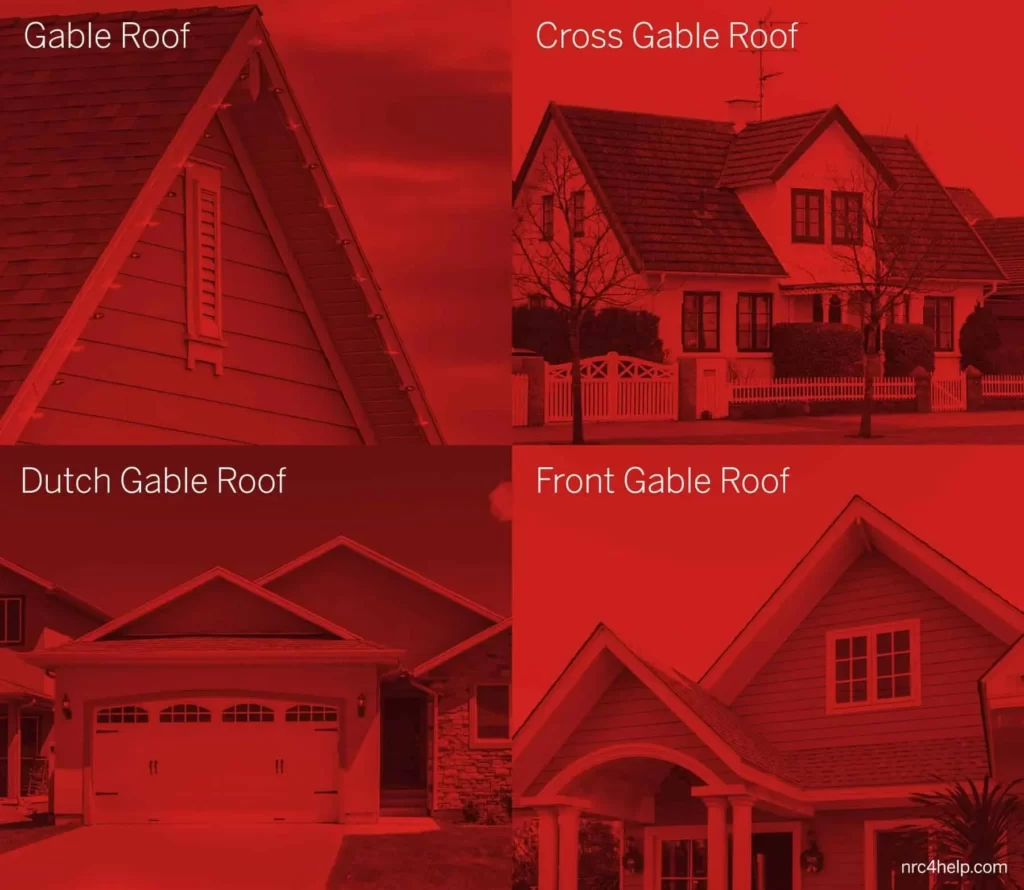

Types of Gable Roofs

There are four main types of gable roofs – side gables, crossed gables, front gables, and Dutch gables.

Side Gables: Side gables, also known as a single gable or a gable-on-hip roof, have two sloping roof sections that meet at a central ridge and form a triangular shape on the sides of the building. This type of gable roof is commonly found in residential construction, especially in traditional or ranch-style homes.
Crossed Gables: Crossed gables involve multiple gable sections that intersect or cross each other at different angles, creating a more complex roof design. This type of gable roof is often seen in larger homes or buildings with multiple wings or sections. Crossed gables add visual interest and can enhance the architectural style of the structure.
Front Gables: Front gables, also referred to as a gable-front or a gablet roof, are characterized by a smaller gable section placed in front of a larger main gable. The front gable is typically positioned perpendicular to the main ridge, creating a distinctive and decorative element. This style is commonly used in Victorian, Tudor, or Gothic architectural designs.
Dutch Gables: Dutch gables, also known as a Dutch hip or a Flemish gable, combine elements of a gable roof and a hip roof. They feature a gable section on the top with curved or sloping sides, while the bottom part of the roof has a hipped or sloping design. Dutch gables are often associated with Dutch or Colonial architectural styles and can add charm and character to a building.

Each type of gable roof has its own unique characteristics and visual appeal. The choice of the gable roof type depends on factors such as architectural style, desired aesthetics, regional influences, and the overall design goals of the structure.

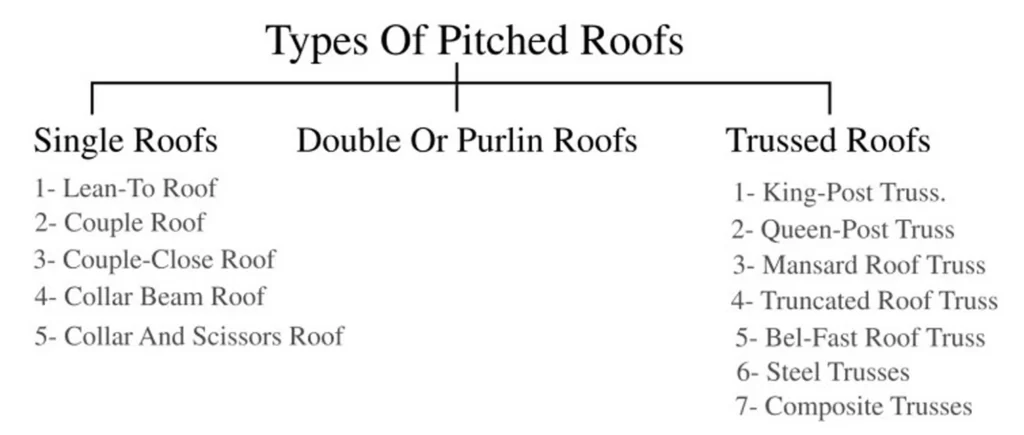

iii) Pitched Roof

Pitched roofs are divided into mainly three parts and they are as follows:

Single Roofs
Double or Purlin Roofs
Trussed Roofs

Single Roofs

Single roofs are those roofs that have common rafters provided to each slope without any intermediate supports.

The single roofs are divided into 5 categories and they are as follows:

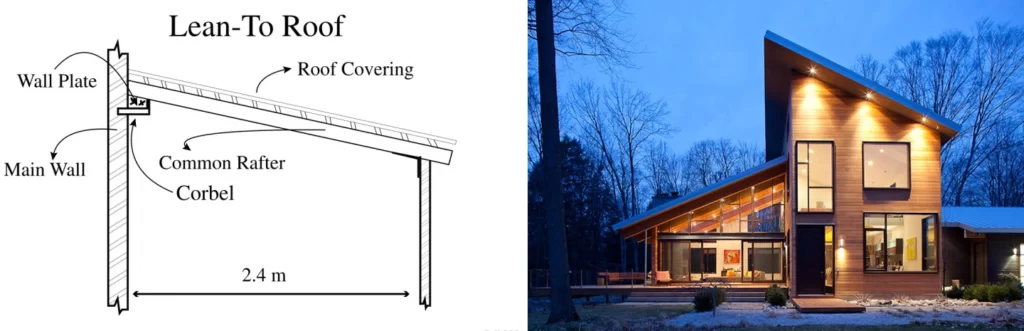

Lean-To Roof:

A lean-to roof, also known as a shed roof or a mono-pitch roof, is a single-sloping roof that typically slopes down from one side of the building to another.

It is often attached or “leaned” against an existing wall or structure, creating a simple and economical roofing solution. Lean-to roofs are commonly used for additions, carports, or smaller structures.

Couple Roof:

A couple roof, also referred to as a gable roof or a pitched roof, consists of two roof sections that meet at a central ridge, forming a triangular shape.

This is the classic gable roof design mentioned earlier, characterized by its simplicity and symmetrical appearance. It is commonly seen in residential construction.

Couple-Close Roof:

The couple-close roof is a variation of the couple roof. It features additional vertical framing members, called closers or jack rafters, which are placed between the main rafters to support the intermediate roof covering.

This design allows for more efficient use of materials and better load distribution.

Collar Beam Roof:

A collar beam roof, also known as a collar tie roof, includes horizontal beams or ties (collar beams) that connect the opposite pairs of rafters near the mid-span of the roof.

These collar beams help to strengthen and stabilize the roof structure, particularly in areas with wide spans or heavy roof loads.

Collar and Scissors Roof:

The collar and scissors roof, also called a scissors truss roof, is a variation of the collar beam roof. It incorporates additional angled supports, known as scissors trusses, which cross each other and create an X shape in the roof’s upper portion.

This design allows for increased headroom and the possibility of creating a vaulted ceiling or open living space below the roof.

These roof designs or components offer different advantages and suit specific architectural styles, structural requirements, or design preferences.

It’s important to consult with a professional architect or structural engineer to determine the most suitable type of single roof for your specific project.

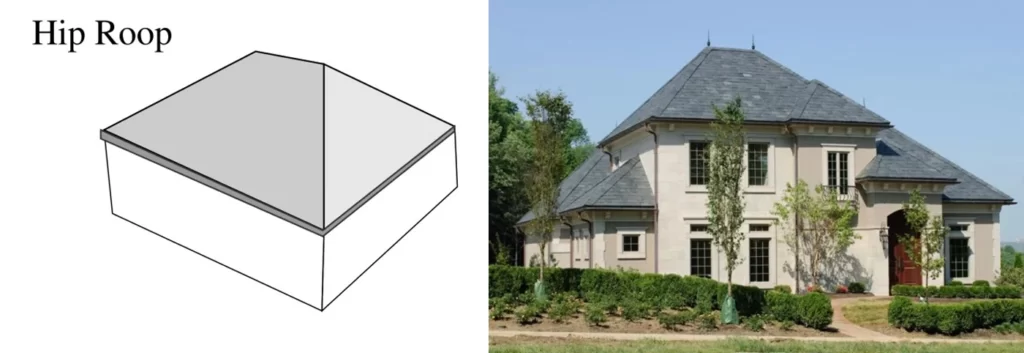

iv) Hip Roof

A hip roof is a style of roof design that slopes downward from all sides of the building, forming a gentle slope without any vertical gable ends.

Each side of the roof has a triangular section that meets at the top to create a ridge. The slopes of a hip roof are usually equal in length, resulting in a symmetrical appearance.

Advantages of Hip Roofs:

Stability and Durability: Hip roofs are known for their excellent stability and resistance to strong winds. The inward slope on all sides provides a balanced distribution of weight and reduces the risk of uplift or damage during storms or hurricanes.
Effective Water Drainage: The sloping nature of a hip roof allows rainwater to easily drain off from all sides, preventing water pooling and reducing the likelihood of leaks or water damage. This makes hip roofs suitable for areas with heavy rainfall or snow accumulation.
Extra Attic Space: Hip roofs often have additional attic space compared to other roof styles. The inward slope creates triangular-shaped spaces at the ends of the building, which can be used for storage, living areas, or even attic ventilation systems.
Versatile Design Options: Hip roofs can be adapted to various architectural styles, from traditional to modern. They can be combined with other roof elements, such as dormers or gable features, to add visual interest and architectural complexity.

Disadvantages of Hip Roofs:

Increased Construction Complexity: Constructing a hip roof requires more complex framing and truss systems compared to simpler roof styles like gable roofs. This can result in increased construction costs and labor.
Reduced Eave Overhang: The sloping nature of a hip roof limits the width of the eaves, which can reduce the amount of shade and protection they offer to the building’s exterior walls. This may result in increased exposure to sunlight, rain, and other weather elements.

Applications in Construction:

Hip roofs are commonly used in residential and commercial construction. They are suitable for various architectural styles, including traditional, ranch, Craftsman, and Mediterranean. Hip roofs are particularly popular in areas prone to high winds or regions with significant rainfall.

Hip roofs can accommodate a wide range of roofing materials, such as asphalt shingles, metal panels, clay or concrete tiles, and synthetic roofing products. They are versatile and can be customized with different pitches, roof slopes, and additional design elements to meet specific project requirements.

In conclusion, hip roofs offer stability, effective water drainage, additional attic space, and versatile design options. However, they can be more complex and costly to construct compared to simpler roof styles.

Hip roofs find extensive applications in residential and commercial construction, providing both functional and aesthetic benefits to the overall building design.

Types of Hip Roofs

Hip roofs are another popular roof design characterized by slopes on all sides that meet at a ridge. The slopes of a hip roof are usually equal in length, creating a gentle slope. Here are three types of hip roofs:

Simple Hip Roof: The simple hip roof, also known as a “hipped roof” or “pyramid roof,” is the most basic form of a hip roof. It has four equal sides that slope downward to meet at a ridge, forming a pyramid-like shape. The simple hip roof offers a clean and symmetrical appearance and provides stability and resistance against high winds. It is commonly used in residential and small-scale construction.
Cross Hipped Roof: The cross hipped roof combines two or more hip roof sections that intersect perpendicularly. This creates additional hips and valleys, resulting in a more complex roof structure. Cross hipped roofs are often used in buildings with multiple wings or extensions, providing architectural interest and visual variety to the roofline. They can be found in a range of architectural styles.

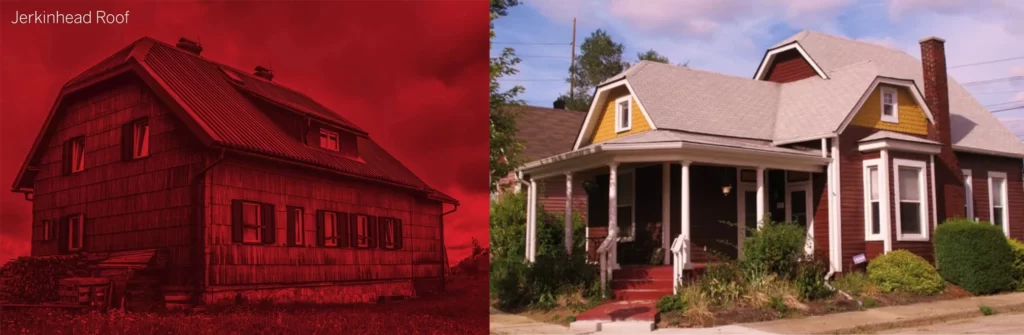

Half Hipped Roof: The half hipped roof, also known as a “clipped gable” or “jerkinhead roof,” is a combination of a gable roof and a hip roof. It has a gable end on one side and a hip roof on the other side. The gable end is partially hipped, with the peak of the gable truncated or “clipped.” The half hipped roof offers a unique and visually appealing design, blending elements of both gable and hip roofs. It is commonly used in traditional and eclectic architectural styles.

Each type of hip roof has its own distinct characteristics and can contribute to the overall aesthetic and functionality of a building. The choice of hip roof type depends on factors such as architectural style, desired roofline appearance, local climate conditions, and the specific design requirements of the structure.

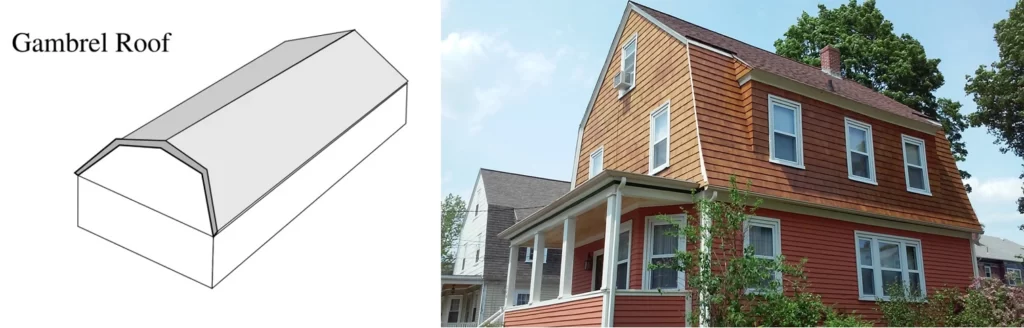

v) Gambrel Roof

A gambrel roof is a unique roof design that features two distinct slopes on each side of the roof. The lower slope has a steeper pitch, while the upper slope has a shallower pitch.

The transition between the two slopes is typically marked by a break or curve, creating a distinct and recognizable silhouette. Gambrel roofs are often associated with barns and Dutch Colonial architectural styles.

Advantages of Gambrel Roofs:

Increased Headroom and Usable Space: The steep lower slope of a gambrel roof provides ample headroom and creates additional usable space in the upper levels of the building. This makes it ideal for maximizing interior space, especially in attic areas or multi-story structures.
Enhanced Aesthetic Appeal: Gambrel roofs offer a unique and eye-catching appearance, adding character and architectural interest to a building. They are often associated with a rustic or country-style charm, making them a popular choice for barn conversions, farmhouses, or homes with a traditional or historic design.
Efficient Water Drainage: The steep lower slope of a gambrel roof allows rainwater and snow to quickly slide off, minimizing the risk of water pooling or leaks. This design makes it suitable for regions with heavy precipitation or areas prone to snow accumulation.
Easy Construction: Gambrel roofs are relatively easier to construct compared to complex roof designs. The simplified framing and truss systems make them more cost-effective and less time-consuming to build, especially when compared to hip roofs or more intricate roof styles.

Disadvantages of Gambrel Roofs:

Limited Resistance to High Winds: The shape of a gambrel roof, with its steeper lower slope, can make it more susceptible to wind uplift compared to roofs with a more gradual slope. Additional bracing and reinforcement may be required in areas prone to high winds to enhance the roof’s structural integrity.
Challenging Maintenance: The unique design of a gambrel roof can present challenges when it comes to maintenance and repairs. Accessing and working on the steeper slopes may require special equipment or precautions, which can add complexity and cost to maintenance tasks.

Applications in Construction:

Gambrel roofs are commonly used in residential and agricultural construction. They are frequently seen in barns, farmhouses, garages, and sheds. However, they can also be incorporated into residential homes, particularly those with a traditional or colonial architectural style.

Gambrel roofs can accommodate a variety of roofing materials, such as asphalt shingles, wood shakes, or metal panels, allowing for flexibility in design and customization. They are particularly suitable for structures where maximizing interior space, creating an appealing aesthetic, or maintaining a rustic ambiance are desired.

In summary, gambrel roofs offer increased headroom, aesthetic appeal, efficient water drainage, and relatively easy construction. However, they may have limitations in high wind resistance and can pose challenges in terms of maintenance.

Gambrel roofs find applications in various construction projects, contributing to the overall functionality and visual appeal of the building.

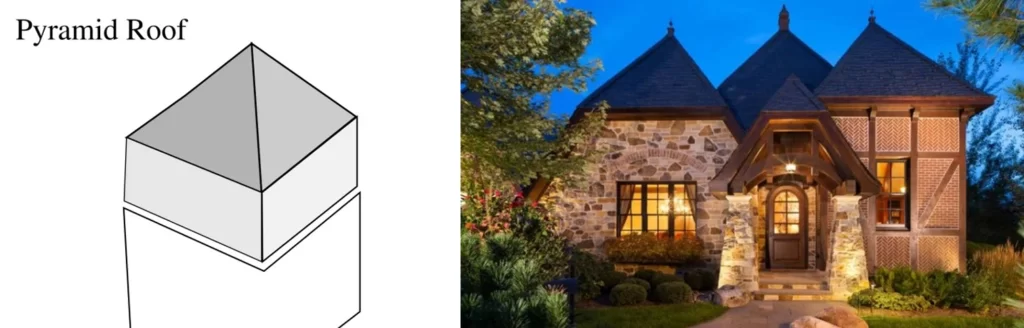

vi) Pyramid Roof

A pyramid roof, also known as a hipped roof, is a style of roof design that slopes downward from all sides to form a pyramid-like shape.

The roof planes meet at a central point or ridge, creating a four-sided pyramid structure. Pyramid roofs are characterized by their symmetrical appearance and sleek, geometric design.

Advantages of Pyramid Roofs:

Structural Stability: Pyramid roofs offer excellent stability and structural integrity due to their balanced design. The slopes on all sides distribute the weight evenly, making them more resistant to wind uplift and other external forces. This makes them suitable for areas prone to high winds or regions with challenging weather conditions.
Efficient Drainage: The sloping nature of pyramid roofs allows for efficient water drainage. Rainwater easily flows down from all sides, reducing the risk of water pooling or leaks. This promotes the longevity of the roof and helps prevent water damage to the underlying structure.
Aesthetic Appeal: Pyramid roofs have a clean and contemporary appearance that can enhance the overall aesthetics of a building. The geometric shape adds a sense of modernity and architectural interest, making them a popular choice for contemporary homes, commercial buildings, and structures with a minimalist design.
Space Optimization: Pyramid roofs provide the opportunity to maximize interior space. The absence of gable ends and the steep slope of the roof allow for more usable space beneath the roof. This can be advantageous for attics, storage areas, or upper-level living spaces.

Disadvantages of Pyramid Roofs:

Construction Complexity: Constructing a pyramid roof can be more complex compared to simpler roof styles. The framing, truss systems, and connections require careful planning and precise execution. This complexity may result in higher construction costs and increased labor requirements.
Limited Window Placement: The steep slopes and triangular shape of a pyramid roof can limit the placement and size of windows on the sides. This may impact natural light penetration and ventilation options within the building, requiring strategic design considerations.

Applications in Construction:

Pyramid roofs find applications in various types of construction projects, including residential, commercial, and institutional buildings. Some common applications include:

Residential Homes: Pyramid roofs can be used in single-family homes, particularly those with contemporary or modern architectural styles. They provide a unique and striking roof design that sets the home apart.
Pavilions and Gazebos: Pyramid roofs are popular choices for pavilions, gazebos, and other outdoor structures. They offer shelter, shade, and an attractive focal point for outdoor spaces.
Commercial Buildings: Pyramid roofs can be found on commercial buildings, such as offices, retail stores, or public structures. They provide an aesthetically pleasing and visually distinctive look to the building.
Cultural and Religious Structures: Pyramid roofs are often utilized in cultural and religious buildings, such as temples, pagodas, or mosques. They represent a symbolic architectural element and can contribute to the cultural significance of the structure.

In summary, pyramid roofs offer structural stability, efficient water drainage, aesthetic appeal, and space optimization. However, they can be more complex to construct and may limit window placement.

Pyramid roofs are versatile and find applications in various construction projects, contributing to both functionality and visual impact.

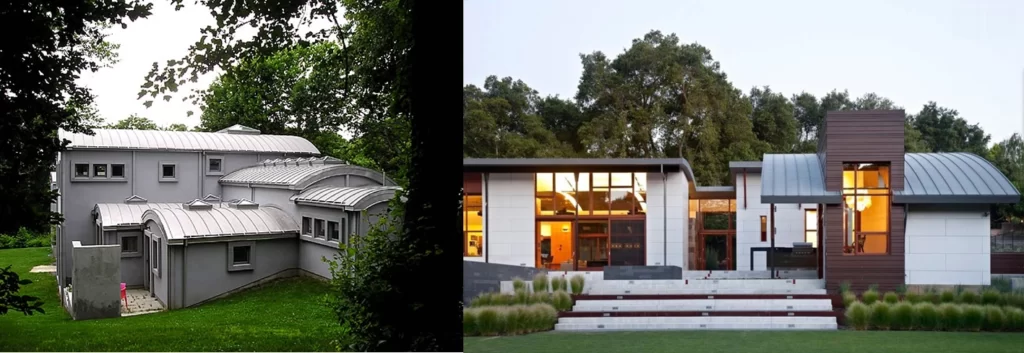

vii) Curved Roofs

Curved roofs, as the name suggests, are roof designs that feature a curved or arched shape rather than the traditional flat or sloped roof planes.

These roofs can have a gentle curve or a more pronounced arch, depending on the desired aesthetic and structural requirements. Curved roofs add a unique and eye-catching element to a building’s design.

Advantages of Curved Roofs:

Architectural Aesthetics: Curved roofs create a visually striking and distinctive appearance. They add elegance, sophistication, and a sense of modernity to a building’s design. Curved roofs are often used to create a focal point, making the structure stand out from its surroundings.
Structural Strength: The curved shape of these roofs provides inherent structural strength. The curvature helps distribute the weight evenly, reducing stress points and enhancing the roof’s load-bearing capacity. Curved roofs can withstand heavy snow loads, high winds, and other external forces more effectively than some other roof types.
Unique Interior Spaces: The use of a curved roof allows for unique and dynamic interior spaces. The curved ceiling creates an open and spacious feeling, promoting natural light distribution and providing a visually interesting environment. Curved roofs are often utilized in spaces such as auditoriums, galleries, atriums, or other large public areas.
Rainwater Drainage: Curved roofs facilitate efficient rainwater drainage. The curvature encourages water to flow smoothly and quickly, minimizing the risk of water pooling or leaks. This helps to maintain the integrity of the roof and prevents water-related issues.

Disadvantages of Curved Roofs:

Complex Design and Construction: Curved roofs require specialized design and construction techniques. Creating the proper curvature and ensuring structural integrity can be challenging. It often involves the use of custom-made materials, which can increase costs and construction complexity.
Higher Costs: The complexity and uniqueness of curved roofs typically result in higher construction costs compared to standard flat or sloped roofs. The materials, labor, and expertise required for the design and installation contribute to the increased expenses.
Limited Roofing Material Options: Curved roofs may have limited options for roofing materials. The curved surface may not be suitable for certain traditional roofing materials like asphalt shingles. Specialized roofing materials such as metal panels, custom-fabricated membranes, or architectural membranes are commonly used for curved roofs, which may be more expensive and require specialized installation techniques.

Applications in Construction:

Curved roofs find applications in various construction projects, including:

Contemporary Architecture: Curved roofs are popular in contemporary architectural designs. They add a sense of uniqueness, innovation, and modernity to buildings, ranging from residential homes to commercial structures.
Cultural and Landmark Buildings: Curved roofs are often used in cultural or landmark buildings to create an iconic and memorable architectural statement. They can be seen in museums, concert halls, exhibition centers, and other public structures.
Sports Facilities: Curved roofs are commonly employed in sports facilities such as stadiums and arenas. The curved design helps create optimal acoustics, improves sightlines, and enhances the overall spectator experience.
Commercial and Retail Spaces: Curved roofs are utilized in commercial and retail spaces to create visually appealing entrances or unique interior spaces. They can be used in shopping malls, hotels, office buildings, and other commercial structures.

In summary, curved roofs offer architectural aesthetics, structural strength, unique interior spaces, and efficient rainwater drainage. However, they involve complex design and construction processes, higher costs, and limited material options.

Curved roofs are commonly found in contemporary architecture, cultural buildings, sports facilities, and commercial spaces, where their distinctiveness and visual impact are desired.

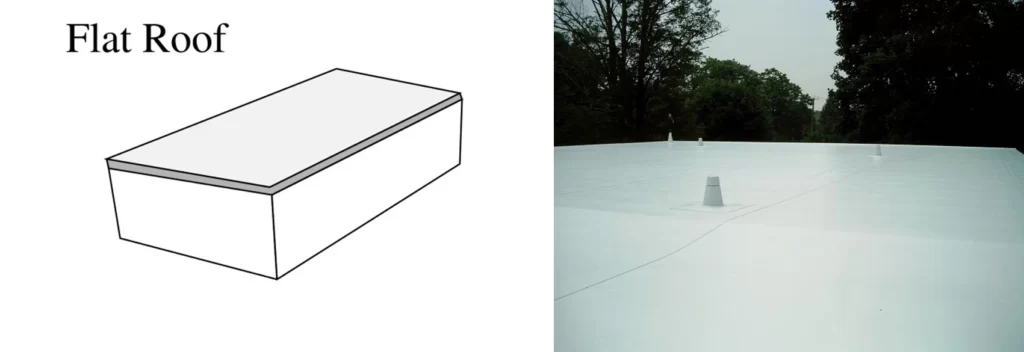

viii) Flat or Terraced Roofs

Flat roofs, also known as terraced roofs, are characterized by their minimal slope or pitch. Unlike sloped roofs, which have a noticeable incline, flat roofs have a nearly level surface.

While they may not be entirely flat, they have a very slight slope to facilitate water drainage. Flat roofs are commonly used in both residential and commercial construction.

Advantages of Flat or Terraced Roofs:

Accessibility and Ease of Maintenance: Flat roofs are easily accessible, making maintenance and repairs simpler compared to roofs with steep slopes. Contractors can easily access the roof for inspections, cleaning, or maintenance tasks. This can help reduce maintenance costs and make it more convenient to install equipment like HVAC units or solar panels.
Efficient Use of Space: Flat roofs provide additional usable space compared to sloped roofs. The absence of steep slopes allows for the installation of rooftop gardens, recreational areas, or outdoor living spaces. In urban environments where land is limited, flat roofs offer an opportunity to maximize usable space.
Energy Efficiency: Flat roofs provide a platform for incorporating energy-saving features. They are ideal for installing solar panels, which can generate electricity and reduce energy costs. Additionally, the absence of a steep roof pitch minimizes heat loss during colder months, enhancing the energy efficiency of the building.
Design Flexibility: Flat roofs offer design flexibility and allow for more creative architectural expressions. They can be combined with other roof types or integrated into modern and contemporary designs. The clean, sleek lines of flat roofs contribute to a minimalist aesthetic and can complement a variety of building styles.

Disadvantages of Flat or Terraced Roofs:

Drainage Issues: While flat roofs have a slight slope for water drainage, they are more prone to water pooling compared to sloped roofs. Proper installation of a reliable and efficient drainage system is essential to prevent water accumulation and potential leaks. Regular inspection and maintenance are required to ensure the roof remains watertight.
Durability and Lifespan: Flat roofs may have a shorter lifespan compared to sloped roofs. The constant exposure to weather elements, UV radiation, and pooling water can contribute to the deterioration of roofing materials. Proper installation, quality materials, and regular maintenance are necessary to maximize the lifespan of a flat roof.
Insulation and Ventilation Challenges: Insulating a flat roof and ensuring proper ventilation can be more challenging compared to sloped roofs. Adequate insulation is crucial to prevent heat loss or gain, while proper ventilation helps control moisture and regulate indoor temperatures. Special attention must be given to insulation and ventilation systems during the construction or renovation of a flat roof.

Applications in Construction:

Flat or terraced roofs have various applications in construction, including:

Residential Buildings: Flat roofs are commonly used in residential buildings, particularly in modern and contemporary designs. They are often seen in urban environments or areas where land availability is limited. Flat roofs offer opportunities for rooftop gardens, outdoor living spaces, or the installation of solar panels.
Commercial Buildings: Flat roofs are prevalent in commercial structures such as office buildings, shopping centers, and warehouses. The additional usable space provided by flat roofs can be utilized for rooftop restaurants, lounges, or recreational areas for employees or customers.
Industrial Buildings: Flat roofs are suitable for industrial buildings and factories where HVAC units or large equipment need to be installed on the roof. The accessibility and ease of maintenance make them practical choices for such applications.
Public Structures: Flat roofs can be found in public structures like schools, hospitals, or community centers. They offer design flexibility and the potential for rooftop amenities, such as gardens or outdoor play areas.

In summary, flat or terraced roofs provide accessibility for maintenance, efficient use of space, energy efficiency, and design flexibility. However, they also come with challenges such as drainage issues, durability concerns, and insulation/ventilation complexities.

Despite these drawbacks, flat or terraced roofs are widely used in residential, commercial, industrial, and public construction projects due to their accessibility, space utilization, energy-saving potential, and design versatility. Proper installation, maintenance, and attention to drainage and insulation are necessary to ensure the longevity and performance of flat roofs.

ix) Jerkinhead Roof

A jerkinhead roof, also known as a clipped gable or half-hip roof, is a style of roof that combines elements of a gable roof and a hip roof.

It features a gable at the peak, similar to a traditional gable roof, but with the ends of the gable being partially truncated or clipped, creating a hipped appearance. This results in a roof that has a combination of sloping sides and truncated gable ends.

Advantages of Jerkinhead Roof:

Enhanced Stability: The hipped portions of a jerkinhead roof provide additional stability compared to a standard gable roof. The clipped ends help to reduce the vulnerability to wind uplift, making it a more secure choice in areas prone to high winds.
Unique Architectural Appeal: Jerkinhead roofs offer a distinctive and visually appealing design that combines the features of both gable and hip roofs. They can add character and charm to a building, particularly in historical or traditional architectural styles.
Increased Attic Space: The sloping sides of the jerkinhead roof provide additional attic space compared to a full gable roof. This can be advantageous for storage or future expansion purposes.
Improved Water Shedding: The hipped sections of a jerkinhead roof help to enhance water shedding capabilities. The truncated gable ends provide additional surface area for water runoff, reducing the risk of water pooling and potential leaks.

Disadvantages of Jerkinhead Roof:

Construction Complexity: Jerkinhead roofs can be more complex to design and construct compared to standard gable or hip roofs. The clipped ends require precise carpentry work, and the intersection between the gable and hip sections may require additional attention to ensure proper water tightness.
Limited Design Flexibility: While jerkinhead roofs offer a unique architectural style, they may not be suitable for all building designs. The clipped gable ends can limit the available space for windows, dormers, or other architectural features, potentially affecting the overall design options.
Cost Considerations: The construction complexity of a jerkinhead roof may result in higher labor and material costs compared to simpler roof designs. The additional detailing required for the clipped ends and the intersections between roof sections can contribute to increased construction expenses.

Applications in Construction:

Jerkinhead roofs find applications in various types of construction, including:

Residential Buildings: Jerkinhead roofs can be used in residential construction to add architectural interest and uniqueness to the design. They are commonly seen in traditional or historical-style homes, adding character to the overall aesthetic.
Commercial Buildings: Jerkinhead roofs can also be utilized in commercial construction projects, particularly in buildings where a distinctive architectural style is desired. They can be suitable for structures such as offices, retail establishments, or public buildings.
Institutional and Educational Buildings: Jerkinhead roofs can be found in institutional or educational buildings, including schools, colleges, or government facilities. The unique design can contribute to the overall identity of the institution or create a visual focal point.
Restoration and Preservation: In restoration or preservation projects of historical structures, jerkinhead roofs may be used to maintain the authenticity and architectural integrity of the building. They can help recreate or retain the original roof design while incorporating modern construction techniques and materials.

In summary, a jerkinhead roof combines elements of a gable roof and a hip roof, offering enhanced stability, unique architectural appeal, increased attic space, and improved water shedding capabilities.

However, the construction complexity, limited design flexibility, and potential cost considerations should be taken into account when considering a jerkinhead roof for a construction project.

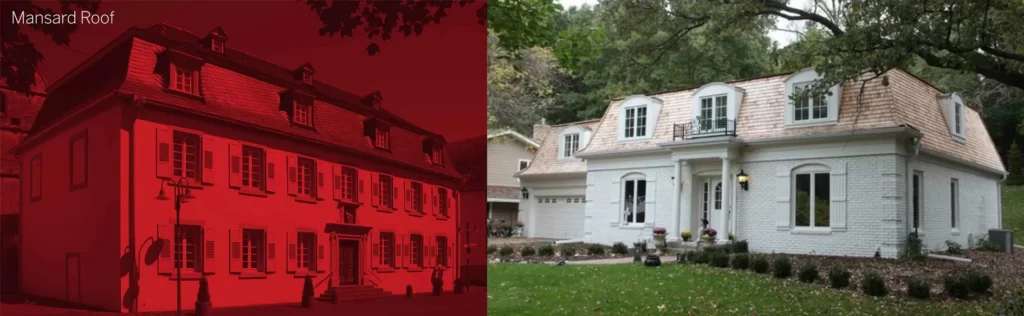

x) Mansard Roof

A mansard roof is a style of roof characterized by its double slope on all sides. It consists of two distinct roof sections: a lower steep slope and an upper shallow slope.

The lower slope is usually much steeper than the upper slope, creating a distinctive profile with a nearly vertical lower section and a more gently sloping upper section. Mansard roofs often incorporate dormer windows, which protrude from the roof surface.

Advantages of Mansard Roof:

Increased Usable Space: The unique design of a mansard roof allows for the creation of additional living or storage space in the attic. The steep lower slope provides ample headroom and usable floor space, making it suitable for converting the attic into living areas, such as bedrooms, offices, or recreational rooms.
Architectural Versatility: Mansard roofs offer architectural versatility and can complement a variety of architectural styles, from historical and traditional to modern designs. They provide a distinctive and aesthetically pleasing appearance that can enhance the curb appeal and value of a building.
Enhanced Energy Efficiency: The double slope design of a mansard roof allows for the incorporation of proper insulation and ventilation systems. This can contribute to improved energy efficiency by minimizing heat loss during the winter and heat gain during the summer, resulting in reduced heating and cooling costs.
Flexibility for Windows and Dormers: Mansard roofs provide ample opportunities for the installation of dormer windows or skylights. These features not only enhance the architectural aesthetics but also provide natural light and ventilation to the interior spaces.

Disadvantages of Mansard Roof:

Construction Complexity: Mansard roofs are more complex to design and construct compared to simpler roof styles. The varying slopes and dormer windows require precise detailing and skilled craftsmanship, which may increase construction costs.
Maintenance Challenges: The multiple slopes and intricate design of a mansard roof can present challenges for maintenance and repairs. Cleaning the roof surfaces and performing routine inspections may require additional effort due to the steep lower slope and dormer windows.
Drainage Issues: Mansard roofs have a lower slope section, which can pose challenges for efficient water drainage. Proper installation of flashing, gutters, and a reliable drainage system is crucial to prevent water pooling, leaks, and potential water damage to the structure.

Applications in Construction:

Mansard roofs have various applications in construction, including:

Residential Buildings: Mansard roofs are commonly used in residential construction, particularly in historical or Victorian-style homes. They add elegance and character to the architecture, and the additional attic space makes them suitable for expanding living areas.
Commercial Buildings: Mansard roofs can be found in commercial structures, such as hotels, apartment buildings, or office complexes. The architectural appeal of mansard roofs can make these buildings stand out and attract attention.
Institutional and Cultural Buildings: Mansard roofs are often used in institutional buildings, such as government offices, museums, or libraries. The grandeur and elegance associated with mansard roofs can convey a sense of importance and prestige.
Restoration and Preservation: Mansard roofs are frequently incorporated in restoration or preservation projects of historical buildings. They help maintain the authenticity and architectural integrity of the structure while providing modern benefits, such as energy efficiency and additional living space.

In summary, a mansard roof features a double slope design with a steep lower section and a shallow upper section. It offers increased usable space, architectural versatility, enhanced energy efficiency, and flexibility for windows and dormers.

However, the construction complexity, maintenance challenges, and potential drainage issues should be carefully considered when choosing a mansard roof for a construction project.

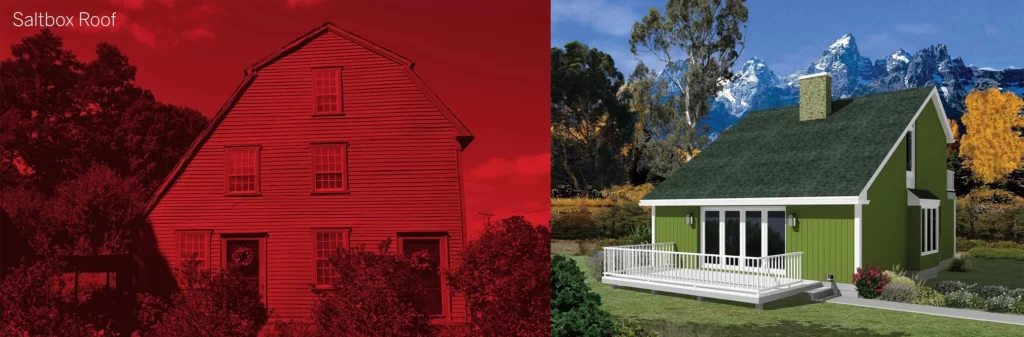

xi) Saltbox Roof

A saltbox roof is a distinctive roof style characterized by asymmetrical slopes. It is named after its resemblance to a wooden box used for storing salt.

The roof has two slopes of different lengths, with one side being significantly longer and sloping down to the rear of the structure, while the other side is shorter and slopes down to the front. This design creates a unique and visually appealing roof profile.

Advantages of Saltbox Roof:

Architectural Appeal: The saltbox roof design adds visual interest and uniqueness to a building. It provides a sense of character and charm, making it suitable for both traditional and contemporary architectural styles. The asymmetrical slopes create an eye-catching silhouette and can enhance the overall aesthetic appeal of the structure.
Space Efficiency: The longer slope of the saltbox roof allows for increased headroom and usable space in the upper floor or attic area. This additional space can be utilized for storage, extra living areas, or creative design elements.
Water Drainage: The steep slope on the longer side of the saltbox roof facilitates efficient water runoff and prevents water pooling or accumulation. This helps in reducing the risk of leaks and water damage to the structure.
Energy Efficiency: The steep slope of the longer side of the saltbox roof provides an opportunity for incorporating large windows or skylights. These features allow for abundant natural light, reducing the need for artificial lighting and potentially lowering energy consumption.

Disadvantages of Saltbox Roof:

Construction Complexity: The asymmetrical design of a saltbox roof can make it more complex to construct compared to more conventional roof styles. The varying slopes and angles require precise calculations and skilled craftsmanship, which may result in higher construction costs.
Maintenance Challenges: Due to the varying slopes and intricate design, maintenance and repairs of a saltbox roof can be more challenging. Cleaning the roof surfaces, accessing hard-to-reach areas, and performing routine inspections may require additional effort and specialized equipment.
Limited Attic Space on Shorter Side: While the longer slope of the saltbox roof provides ample attic space, the shorter side may have limited usable space due to its shallower slope. This can affect the potential for storage or living areas on that side of the structure.

Applications in Construction:

Saltbox roofs find applications in various types of construction, including:

Residential Buildings: Saltbox roofs are commonly used in residential construction, particularly in traditional or colonial-style homes. They add architectural interest and can enhance the overall character and charm of the house.
Cabins and Cottages: Saltbox roofs are popular choices for cabins, cottages, or vacation homes. The unique roof design complements rustic or country-style architecture and can create a cozy and inviting atmosphere.
Barns and Outbuildings: The saltbox roof style is also found in agricultural structures such as barns and outbuildings. It provides functional benefits, such as efficient water drainage and increased interior space for storage or livestock housing.
Modern and Contemporary Designs: Saltbox roofs can be incorporated into modern or contemporary architectural designs to add a touch of uniqueness and break away from conventional roof styles. Their asymmetrical profile can create a striking contrast with clean lines and minimalist aesthetics.

In summary, a saltbox roof features asymmetrical slopes, with one side significantly longer than the other. It offers architectural appeal, space efficiency, efficient water drainage, and potential energy efficiency.

However, the construction complexity, maintenance challenges, and limited attic space on the shorter side should be considered when choosing a saltbox roof for a construction project.

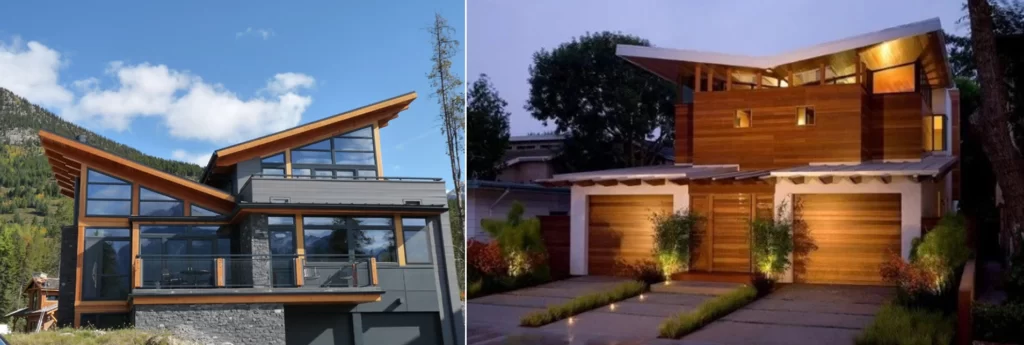

xii) Butterfly Roof

A butterfly roof is a distinctive roof design characterized by its inverted V shape. The roof slopes downward from two opposing sides, meeting at a central valley, creating a butterfly-like appearance.

The raised edges of the roof allow for large, open expanses of windows or glazing along the length of the structure. This design provides unique architectural aesthetics and functional benefits.

Advantages of Butterfly Roof:

Architectural Aesthetics: The butterfly roof design is visually striking and modern, making it a popular choice for contemporary and eco-friendly architectural designs. Its distinctive shape adds a sense of elegance and uniqueness to a building, becoming a focal point and creating an impressive visual impact.
Natural Light and Ventilation: The raised edges of the butterfly roof create a central valley, allowing for the installation of large windows, skylights, or clerestory windows. This design feature maximizes the entry of natural light into the interior spaces, creating a bright and airy atmosphere. Additionally, the shape of the roof can facilitate natural ventilation, promoting airflow and reducing the need for artificial cooling.
Rainwater Harvesting: The central valley of the butterfly roof serves as a natural collection point for rainwater. This design feature can be harnessed for rainwater harvesting systems, allowing the captured water to be reused for various purposes, such as irrigation or graywater systems, promoting sustainability.
Solar Energy Generation: The large, unobstructed roof surface of the butterfly roof provides an ideal platform for the installation of solar panels. The angle and orientation of the roof can maximize solar energy generation, reducing reliance on traditional energy sources and lowering electricity costs.

Disadvantages of Butterfly Roof:

Higher Construction Costs: The unique design of the butterfly roof requires specialized engineering and construction techniques, which can increase construction costs compared to more conventional roof styles. The complex geometry and the need for additional structural support can add to the overall project expenses.
Maintenance Challenges: The inverted V shape and large roof expanse of the butterfly roof can present challenges for maintenance and cleaning. Accessing the higher parts of the roof for repairs or routine maintenance may require additional equipment or professional assistance.
Limited Attic Space: The sloping nature of the butterfly roof limits the usable space within the attic area. This can reduce storage capacity or the potential for additional living areas compared to roofs with more vertical or traditional slopes.

Applications in Construction:

Butterfly roofs have various applications in construction, including:

Residential Buildings: Butterfly roofs are commonly used in residential construction, particularly in modern and contemporary homes. They offer a sleek and avant-garde aesthetic, appealing to homeowners seeking unique architectural designs.
Eco-Friendly and Sustainable Buildings: The butterfly roof’s design features, such as rainwater harvesting and solar energy generation capabilities, make it suitable for eco-friendly and sustainable construction. It can be integrated into green building practices, promoting energy efficiency and environmental consciousness.
Public and Commercial Buildings: Butterfly roofs can be found in public structures, such as museums, art galleries, or community centers. The striking design adds a touch of architectural distinction, drawing attention and creating an engaging visual experience for visitors.
Educational and Institutional Buildings: Butterfly roofs are also utilized in educational and institutional buildings, such as schools, universities, or research facilities. The design’s emphasis on natural light and ventilation aligns with the principles of conducive learning environments and sustainable design.

In summary, a butterfly roof features an inverted V shape with sloping edges meeting at a central valley. It offers architectural aesthetics, abundant natural light and ventilation, rainwater harvesting potential, and solar energy generation capabilities.

However, the higher construction costs, maintenance challenges, and limited attic space should be carefully considered when choosing a butterfly roof for a construction project.

xiii) Bonnet Roof

A bonnet roof, also known as a kicked-eaves roof, is a unique roof style that features two slopes on all sides. The lower slope has a steeper pitch, while the upper slope has a shallower pitch, creating an overhang or “bonnet” effect.

This design resembles a hat or bonnet placed on top of a building. The bonnet roof is commonly used in architectural styles such as French Provincial and Colonial Revival.

Advantages of Bonnet Roof:

Aesthetic Appeal: The bonnet roof design adds a distinctive and elegant look to a building. It offers a traditional and classic appearance, often associated with architectural styles that emphasize charm and character. The overhangs created by the lower slopes provide architectural detailing and can enhance the overall visual appeal of the structure.
Weather Protection: The steep lower slopes of the bonnet roof provide excellent protection against adverse weather conditions, such as heavy rain, snow, or high winds. The overhangs help to shield the exterior walls and windows from direct exposure to rainwater, reducing the risk of water infiltration and potential damage.
Shaded Outdoor Spaces: The overhangs created by the bonnet roof can provide shaded areas around the perimeter of the building. This can be advantageous for creating outdoor living spaces, such as patios, porches, or balconies, where occupants can enjoy sheltered areas from the sun or rain.
Attic Ventilation: The bonnet roof design allows for the installation of ridge vents or other ventilation systems along the upper slopes. This facilitates proper attic ventilation, promoting air circulation and preventing moisture buildup, which can help in maintaining a healthy and energy-efficient home environment.

Disadvantages of Bonnet Roof:

Construction Complexity: The design of a bonnet roof can be more complex and challenging to construct compared to simpler roof styles. The multiple slopes and overhangs require precise calculations and skilled craftsmanship, which may increase construction costs and time.
Limited Usable Space: The inward sloping upper slopes of the bonnet roof result in reduced usable space in the upper floor or attic area. The shallow pitch limits the headroom and may restrict storage or living areas compared to roofs with more vertical slopes.
Maintenance Difficulty: The bonnet roof’s multiple slopes and overhangs can make maintenance and repairs more challenging. Cleaning the roof surfaces, accessing hard-to-reach areas, and addressing any issues or leaks may require additional effort and specialized equipment.

Applications in Construction:

Bonnet roofs find applications in various types of construction, including:

Residential Buildings: Bonnet roofs are commonly used in residential construction, particularly in architectural styles that reflect a classic or traditional aesthetic. They are well-suited for homes seeking a timeless and elegant appearance.
Historical or Period Restoration: Bonnet roofs are often employed in the restoration or replication of historical or period buildings. They help recreate the architectural authenticity and character of specific time periods.
Public Buildings and Structures: Bonnet roofs can be found in public buildings, such as government buildings, churches, or museums, where architectural style plays a significant role in the design. The roof design contributes to the overall visual impact and historical context of these structures.
Commercial and Hospitality Buildings: Bonnet roofs can be utilized in commercial and hospitality structures, such as hotels, inns, or restaurants, to create a charming and welcoming atmosphere. The roof design adds an element of elegance and can enhance the curb appeal of the establishments.

In summary, a bonnet roof features two slopes on all sides, with the lower slope having a steeper pitch and creating overhangs. It offers aesthetic appeal, weather protection, shaded outdoor spaces, and attic ventilation benefits.

However, the construction complexity, limited usable space and maintenance difficulty should be considered when opting for a bonnet roof.

Nonetheless, its unique design and functional advantages make it a suitable choice for residential, historical, public, and commercial buildings seeking a classic and elegant architectural style.

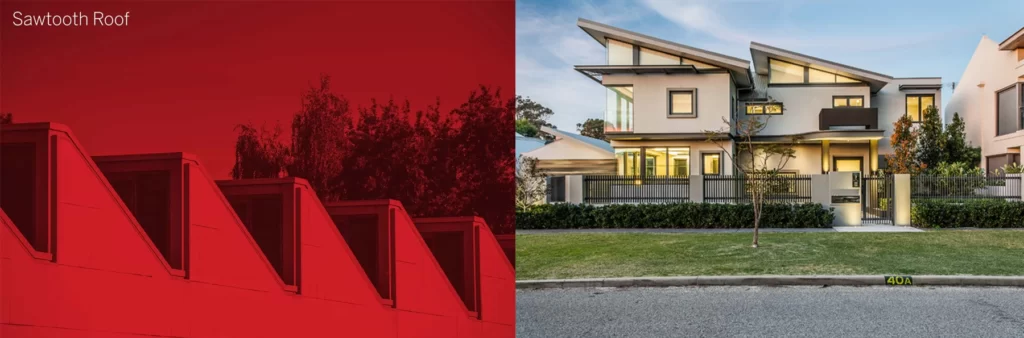

xiv) Sawtooth Roof

A sawtooth roof is a roof design characterized by a series of ridges with vertical windows or skylights placed on one side of the roof, resembling the teeth of a saw.

This design creates a distinctive and visually striking appearance. Sawtooth roofs are commonly used in industrial and commercial buildings, particularly in factories, warehouses, and manufacturing facilities.

Advantages of Sawtooth Roof:

Natural Lighting: One of the primary advantages of sawtooth roofs is the abundant natural lighting they provide. The vertical windows or skylights along the ridges allow ample sunlight to enter the building, reducing the need for artificial lighting during the day. This can help create a more comfortable and productive working environment, as well as save on energy costs.
Ventilation: The design of a sawtooth roof promotes natural ventilation. The vertical windows or skylights can be opened to allow hot air to rise and escape, while cooler air enters through lower openings or windows on the opposite side. This passive ventilation system can help regulate indoor temperatures and improve air quality within the building.
Aesthetics: Sawtooth roofs offer a unique and visually appealing architectural design. The alternating ridges and vertical windows create an interesting pattern that can enhance the overall aesthetic appeal of the building. The distinctive look of sawtooth roofs can contribute to the identity and branding of industrial or commercial structures.

Disadvantages of Sawtooth Roof:

Construction Complexity: The construction of sawtooth roofs can be more complex and expensive compared to traditional roof designs. The installation of vertical windows or skylights and the precise alignment of the ridges require careful planning and skilled craftsmanship. This complexity can result in higher construction costs and longer construction time.
Maintenance Challenges: The vertical windows or skylights in a sawtooth roof may require regular cleaning and maintenance to ensure optimal performance and prevent issues such as leaks or condensation. Accessing and maintaining these windows at a height can be challenging and may require specialized equipment or professional services.
Limited Usable Space: The sloping design of a sawtooth roof reduces the usable space on the side with the windows or skylights. This may limit the placement of equipment, storage, or usable floor area. Careful planning is required to maximize the available space within the building.

Applications in Construction:

Sawtooth roofs are predominantly used in industrial and commercial construction. Some common applications include:

Factories and Manufacturing Facilities: Sawtooth roofs are well-suited for factories and manufacturing facilities where natural lighting and ventilation are essential. The abundant daylight can enhance working conditions, particularly in areas that require precise tasks or detailed work.
Warehouses and Distribution Centers: Sawtooth roofs are advantageous in warehouses and distribution centers, where the vertical windows or skylights can reduce the need for artificial lighting during the day. This can lead to energy savings and a more environmentally friendly operation.
Art Studios and Exhibition Spaces: The unique lighting qualities of sawtooth roofs make them suitable for art studios and exhibition spaces. The ample natural light entering through the windows or skylights can provide ideal lighting conditions for showcasing artwork and creating a visually appealing atmosphere.

In summary, sawtooth roofs feature a series of ridges with vertical windows or skylights, providing abundant natural light and promoting ventilation.

They are commonly used in industrial and commercial buildings where natural lighting and airflow are crucial. While they offer several advantages, such as energy efficiency and aesthetics, the construction complexity and maintenance challenges should be carefully considered before implementing a sawtooth roof design.

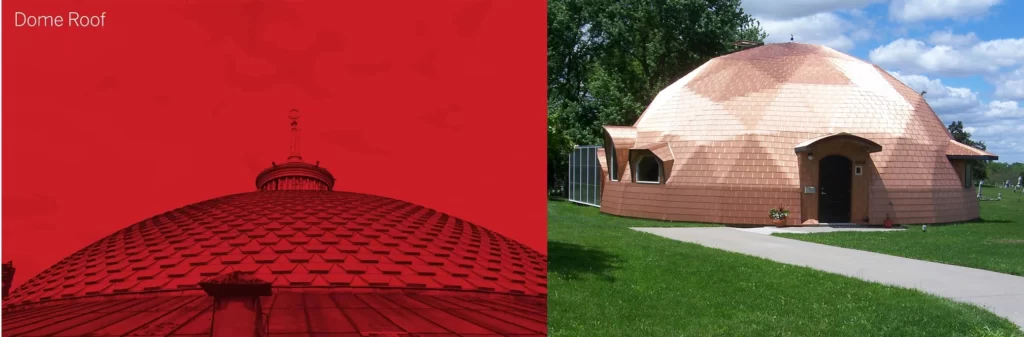

xv) Dome Roof

A dome roof is a curved, hemispherical, or semi-spherical roof structure that resembles the shape of a dome. It is typically constructed using a framework of curved beams or trusses that support the roof’s curved surface.

Dome roofs have been used for centuries in various architectural styles, ranging from ancient civilizations to modern construction.

Advantages of Dome Roof:

Structural Stability: Dome roofs are known for their excellent structural stability. The curved shape evenly distributes external forces, such as wind or snow loads, allowing for better resistance to these forces compared to traditional flat or sloped roofs. The self-supporting nature of domes reduces the need for extensive internal structural supports.
Durability: Dome roofs are highly durable and can withstand harsh weather conditions, including high winds and heavy snow loads. The absence of flat surfaces reduces the accumulation of debris, preventing water pooling and potential damage caused by standing water. The sturdy construction and resistance to external forces contribute to the long lifespan of dome roofs.
Efficient Use of Space: Dome roofs provide efficient use of interior space. The absence of traditional sloping walls allows for maximum usable floor area, making them ideal for structures that require large open spaces, such as sports arenas, exhibition halls, or entertainment venues. The curved design also provides excellent acoustics and enhances the overall aesthetic appeal of the interior.
Energy Efficiency: The shape of a dome roof contributes to energy efficiency. The curved surface reduces heat loss or gain, improving insulation and reducing energy consumption for heating or cooling. Additionally, dome roofs allow for the installation of skylights or windows, which can maximize natural lighting and reduce the need for artificial lighting during the day.

Disadvantages of Dome Roof:

Construction Complexity: The construction of dome roofs can be complex and requires skilled craftsmanship. The precise calculations and intricate framework design necessitate specialized knowledge and expertise. This complexity often translates to higher construction costs compared to traditional roof designs.
Limited Design Flexibility: Dome roofs have inherent design limitations. The curved shape restricts the placement of windows, doors, and partitions within the interior space. This can pose challenges when designing functional layouts or accommodating specific architectural requirements.
Maintenance Challenges: Dome roofs may present challenges when it comes to maintenance and repairs. The curved surface and height of the roof can make accessing certain areas difficult. Regular inspections, cleaning, and addressing any issues may require specialized equipment and professional assistance.

Applications in Construction:

Dome roofs have various applications in construction, including:

Religious and Cultural Buildings: Dome roofs have been historically associated with religious and cultural structures such as churches, mosques, temples, and mausoleums. The grandeur and symbolism of the dome shape often reflect spiritual and architectural significance.
Public and Civic Buildings: Dome roofs are commonly used in public and civic buildings like government centers, museums, libraries, or convention centers. The unique and visually striking appearance of dome roofs can add a sense of grandeur and importance to these structures.
Sports and Entertainment Venues: Dome roofs are suitable for sports stadiums, arenas, and concert halls due to their ability to provide unobstructed views and accommodate large crowds. The efficient use of space and excellent acoustics make dome roofs well-suited for such applications.
Residential Structures: While less common in residential construction, dome roofs can be utilized in unique or custom-designed homes. The architectural appeal, energy efficiency, and durability of dome roofs can be attractive to homeowners looking for a distinctive and environmentally friendly design.

In summary, dome roofs are curved, structurally stable, and durable roof structures that provide efficient use of space and energy efficiency.

They find applications in religious buildings, public structures, sports venues, and even residential constructions. However, the construction complexity, limited design flexibility, and maintenance challenges are factors to consider when choosing a dome roof for a construction project.

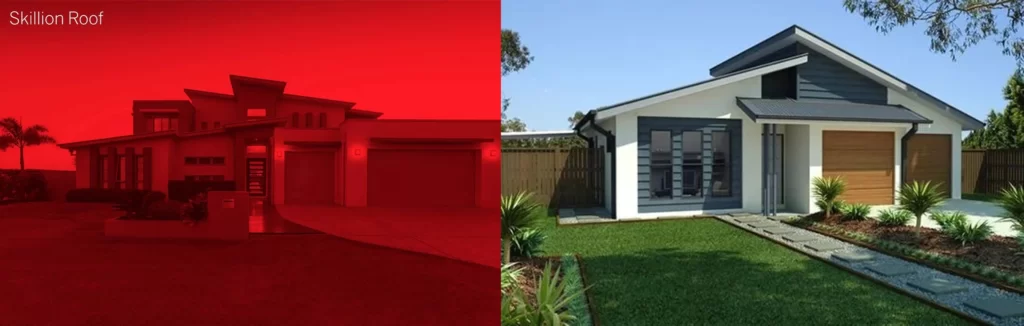

xvi) Skillion Roof

A skillion roof, also known as a shed roof or mono-pitch roof, is a single sloping roof surface with a steeper pitch on one side and a shallower or flat pitch on the other side.

It is a simple and modern roof design that consists of a single plane angled in one direction. Skillion roofs are commonly used in contemporary and minimalist architectural styles.

Advantages of Skillion Roof:

Modern Aesthetic: Skillion roofs offer a sleek and modern appearance that is popular in contemporary architectural designs. The clean lines and simplicity of the roof design contribute to a minimalist aesthetic and can complement various building styles, including residential homes, commercial structures, and even outdoor structures like sheds or carports.
Water Drainage: The steep slope of the skillion roof facilitates effective water drainage. Compared to flat roofs, skillion roofs have a higher capacity to shed water quickly, minimizing the risk of water pooling or leakage. Proper installation and the inclusion of appropriate roof drainage systems are essential to ensure efficient water management.
Versatile Design: Skillion roofs provide design versatility. They can be easily incorporated into different building forms and layouts, allowing for creative and unique architectural expressions. Skillion roofs can be combined with other roof types, such as gable roofs or hip roofs, to create visually interesting and dynamic rooflines.
Cost-Effective: Skillion roofs tend to be more cost-effective compared to more complex roof designs, such as hip or gable roofs. The simplified construction and fewer materials required make skillion roofs a more economical choice for both residential and commercial projects. The straightforward design can also contribute to faster construction timelines.

Disadvantages of Skillion Roof:

Limited Attic Space: The single-sloping nature of skillion roofs results in limited attic or overhead storage space. The steeper side of the roof may reduce the usable height and restrict the placement of utilities, such as HVAC systems or water tanks. Consideration should be given to alternative storage solutions or appropriate building design to accommodate storage needs.
Wind Resistance: Skillion roofs may be more susceptible to wind uplift compared to roofs with multiple slopes, such as gable roofs. The steep slope can create uplift forces that need to be addressed during the design and construction process. Proper reinforcement and anchoring techniques should be implemented to ensure adequate wind resistance.

Applications in Construction:

Skillion roofs have various applications in construction, including:

Residential Homes: Skillion roofs are commonly used in residential construction, especially in modern and contemporary home designs. They provide a fresh and stylish aesthetic and can be utilized in both single-story and multi-story homes. Skillion roofs are versatile and can adapt to different architectural styles and materials.
Commercial Buildings: Skillion roofs are suitable for commercial structures such as offices, retail stores, and industrial buildings. The sleek and modern appearance of skillion roofs can help create a distinctive and eye-catching presence for commercial establishments.
Outdoor Structures: Skillion roofs are often used in outdoor structures like sheds, carports, or patio covers. The simplicity of the design makes them an ideal choice for these functional and practical applications. Skillion roofs provide protection from the elements while maintaining a contemporary look.

In summary, skillion roofs offer a modern aesthetic, efficient water drainage, design versatility, and cost-effectiveness. They are commonly used in residential homes, commercial buildings, and outdoor structures.

However, the limited attic space and potential wind resistance should be taken into account when considering a skillion roof for a construction project.

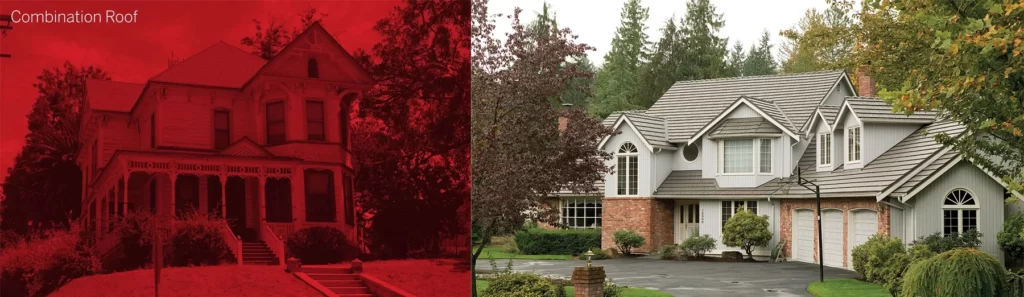

xvii) Combination Roof

A combination roof, also known as a mixed roof or hybrid roof, is a roof design that incorporates multiple roof types or styles on a single structure.

It combines different elements, such as gable roofs, hip roofs, or shed roofs, to create a unique and visually appealing roofline. Combination roofs are popular in architectural styles that seek to add complexity and character to a building’s design.

The specific combination of roof styles in a combination roof can vary depending on the desired aesthetic and functional requirements of the structure. For example, a combination roof may feature a gable roof on the main portion of the building and a shed roof on an attached garage or extension.

Advantages of Combination Roof:

Architectural Versatility: Combination roofs offer a high degree of architectural versatility. By combining different roof styles, it allows for creative expressions and unique roofline configurations. The interplay between different roof slopes and shapes can add visual interest and complexity to a building’s design.
Aesthetic Appeal: Combination roofs can enhance the overall aesthetic appeal of a structure. The combination of different roof styles creates a visually dynamic and interesting roofline, adding character and uniqueness to the building. This design feature can make a structure stand out and contribute to its architectural charm.
Functional Adaptability: Combination roofs can be designed to accommodate specific functional requirements. Different roof styles may be chosen to optimize specific areas of the building. For example, a steeply pitched gable roof may be used to provide more interior space in a living area, while a shed roof may be employed to cover an attached carport or patio.
Ventilation and Natural Lighting: Depending on the combination of roof styles, combination roofs can provide opportunities for improved ventilation and natural lighting. The inclusion of gable roofs with their triangular end walls can allow for the installation of windows or vents, promoting better air circulation. Additionally, roof sections with higher slopes may facilitate the incorporation of skylights or larger windows, increasing the influx of natural light.

Disadvantages of Combination Roof:

Increased Complexity and Cost: Combination roofs are typically more complex and require additional planning and construction expertise compared to single roof type designs. The integration of different roof styles may involve more intricate framing, roofing materials, and flashing details, which can increase construction costs.
Maintenance Challenges: The various roof slopes and intersections in a combination roof can present challenges in terms of maintenance and repairs. Each roof style may have different maintenance requirements, and accessing certain areas may be more difficult. Regular inspections and proactive maintenance are necessary to ensure the integrity and longevity of the roof.

Applications in Construction:

Combination roofs can be applied in various construction scenarios, including:

Residential Homes: Combination roofs are commonly used in residential construction to create visually appealing and unique designs. They can be employed in custom-built homes or as part of architectural styles that emphasize complexity and individuality.
Commercial Buildings: Combination roofs can also be seen in commercial structures such as offices, retail establishments, or hospitality venues. They can add architectural interest and help distinguish the building from others in the area.
Historical Restorations: Combination roofs may be utilized in the restoration or preservation of historical buildings where the original roof style may have been a combination of different roof types. This approach helps maintain the authenticity and character of the structure.

In summary, combination roofs offer architectural versatility, aesthetic appeal, functional adaptability, and the potential for improved ventilation and natural lighting.

They find applications in residential and commercial construction, as well as in historical restorations. However, the increased complexity and cost, as well as the maintenance challenges, should be considered when opting for a combination roof design.

3) Types of Roofing Materials

There are various types of roofing materials available, each with its own characteristics, advantages, and disadvantages. Here are some common types of roofing materials:

Asphalt Shingles: Asphalt shingles are the most popular roofing material due to their affordability, ease of installation, and durability. They come in a variety of colors and styles and can suit many architectural designs.
Metal Roofing: Metal roofs, typically made of steel, aluminum, or copper, offer excellent durability and longevity. They are resistant to fire, insects, and rot, and can be energy-efficient. Metal roofs are available in different styles, such as standing seam, corrugated, or metal tiles.
Clay or Concrete Tiles: Clay or concrete tiles are popular in Mediterranean or Spanish-style architecture. They are durable, fire-resistant, and can provide an elegant and distinctive appearance. However, they are heavier and may require additional structural support.
Wood Shingles or Shakes: Wood shingles or shakes offer a natural and rustic look. They are usually made from cedar, redwood, or other types of treated wood. Wood roofs require regular maintenance, such as staining or sealing, to prolong their lifespan and prevent decay.
Slate Roofing: Slate roofs are highly durable and known for their beauty and longevity. Slate tiles are natural stone and come in various colors. Slate roofing requires professional installation due to its weight and may be more expensive than other options.
Synthetic Roofing Materials: Synthetic roofing materials, such as synthetic slate or rubber roofing, mimic the appearance of traditional materials but offer increased durability, lighter weight, and lower costs. They can be a good alternative for those looking for a specific aesthetic without the drawbacks of natural materials.
Solar Tiles: Solar tiles integrate photovoltaic technology into roofing materials, allowing for the generation of electricity from sunlight. They can be an eco-friendly and energy-efficient choice, but they tend to be more expensive and require professional installation.
Built-up Roofing (BUR): Built-up roofing is a traditional type of roofing commonly used on low-slope or flat roofs. It consists of multiple layers of roofing felt and asphalt or bitumen, creating a durable and waterproof surface.
Green Roofing: Green roofs involve the installation of living plants and vegetation on the roof surface. They provide insulation, reduce stormwater runoff, and offer environmental benefits. Green roofs require special design considerations and maintenance.
Composite Roofing: Composite roofing materials combine different elements, such as asphalt, fiberglass, and recycled materials, to create a versatile and durable roofing option. They can simulate the appearance of other roofing materials while offering improved performance and longevity.

It’s important to consider factors such as climate, budget, architectural style, and local building codes when choosing the right roofing material for your project. Consulting with a roofing professional can provide further guidance based on your specific needs and requirements.

5) Requirements of Good Roof

Before selecting a roof for our house, we have to know the weather condition and the material availability for the maintenance of the roof.

Here are the lists of requirements for a well-planned roof:

The first thing we have to consider is the durability of the roof.
Roof should has power to sustain the various effects of enviroments like wind, rain, sun, snow, etc.
Roof should be well-drained.
Water-proofing arrangement must included while selecting the roof.
It should be fire resistant.
The roof structure have power to sustain the load that are likely to come on it.

Structural Integrity: A good roof should have strong structural integrity to withstand various weather conditions, including wind, snow, and rain. It should be able to support its own weight and any additional loads such as maintenance personnel, equipment, or snow accumulation.
Water Resistance: One of the primary functions of a roof is to provide protection against water infiltration. A good roof should be designed and constructed to effectively shed water and prevent leaks. It should have proper flashing, sealants, and a reliable drainage system to ensure efficient water runoff.
Durability: A durable roof is essential to minimize the need for frequent repairs or replacement. It should be able to withstand long-term exposure to environmental factors such as UV radiation, temperature fluctuations, and moisture without significant degradation. Choosing high-quality materials and proper installation techniques contribute to the longevity of a roof.
Energy Efficiency: With growing emphasis on energy conservation, a good roof should contribute to the overall energy efficiency of a building. It should have proper insulation to prevent heat transfer and maintain comfortable indoor temperatures. Additionally, reflective roof coatings or materials can reduce heat absorption, leading to lower cooling costs in warm climates.
Ventilation: Adequate roof ventilation is crucial to prevent moisture buildup and maintain proper airflow within the attic or roof space. Good ventilation helps to prevent issues such as mold growth, rot, and excessive heat buildup, which can compromise the roof’s performance and the overall integrity of the building.
Fire Resistance: A good roof should have fire-resistant properties to minimize the risk of fire spread. Fire-resistant roofing materials, such as Class A-rated shingles or metal roofs, can provide added protection and reduce the potential damage caused by fire.
Aesthetics: While functionality is essential, the visual appeal of a roof should not be overlooked. A good roof should complement the architectural style of the building and contribute to its overall aesthetic appeal. It should enhance the curb appeal and value of the property.
Compliance with Building Codes and Regulations: A good roof should meet all applicable building codes and regulations to ensure safety and structural integrity. It should be designed and constructed in accordance with local building standards, including requirements for load-bearing capacity, wind resistance, and fire safety.
Regular Maintenance: A good roof requires regular inspection and maintenance to identify and address any potential issues promptly. Routine maintenance, such as cleaning gutters, replacing damaged shingles, or addressing flashing problems, can extend the lifespan of the roof and prevent more significant problems from developing.

In summary, a good roof should have structural integrity, water resistance, durability, energy efficiency, proper ventilation, fire resistance, aesthetic appeal, compliance with building codes, and regular maintenance.

Considering these requirements when designing, constructing, and maintaining a roof will ensure its long-term performance and protection for the building and its occupants.

6) Conclusion

In conclusion, roofs in architecture serve both functional and aesthetic purposes. They provide shelter, protect buildings from weather elements, and contribute to the overall architectural style and character. There are various types of roofs used in architecture, including gable roofs, hip roofs, mansard roofs, flat roofs, shed roofs, gambrel roofs, butterfly roofs, sawtooth roofs, and dome roofs.

Each roof type has its unique features and is chosen based on the specific requirements of the building and the desired architectural style. For example, gable roofs are versatile and commonly used, while mansard roofs provide additional living space in the attic. Flat roofs are often used in modern architecture, and shed roofs create a simple and clean aesthetic. Other roof types, such as butterfly roofs, sawtooth roofs, and dome roofs, offer distinctive and visually striking designs.

The choice of roof type in architecture depends on factors such as climate, building function, architectural style, budget, and personal preference. The design and construction of roofs can be complex, requiring skilled craftsmanship and attention to detail. Ultimately, roofs contribute to the overall beauty, functionality, and structural integrity of buildings, making them an essential element in architectural design.

The primary functions of a roof include:

1) Terminology of roofs

2) Types of roofs

i) Shed Roof

Advantages of Shed Roofs:

Disadvantages of Shed Roofs:

Applications in Construction:

ii) Gabled Roof

Advantages of Gabled Roofs:

Disadvantages of Gabled Roofs:

Applications in Construction:

Types of Gable Roofs

iii) Pitched Roof

Single Roofs

Lean-To Roof:

Couple Roof:

Couple-Close Roof:

Collar Beam Roof:

Collar and Scissors Roof:

iv) Hip Roof

Advantages of Hip Roofs:

Disadvantages of Hip Roofs:

Applications in Construction:

Types of Hip Roofs

v) Gambrel Roof

Advantages of Gambrel Roofs:

Disadvantages of Gambrel Roofs:

Applications in Construction:

vi) Pyramid Roof

Advantages of Pyramid Roofs:

Disadvantages of Pyramid Roofs:

Applications in Construction:

vii) Curved Roofs

Advantages of Curved Roofs:

Disadvantages of Curved Roofs:

Applications in Construction:

viii) Flat or Terraced Roofs

Advantages of Flat or Terraced Roofs:

Disadvantages of Flat or Terraced Roofs:

Applications in Construction:

ix) Jerkinhead Roof

Advantages of Jerkinhead Roof:

Disadvantages of Jerkinhead Roof:

Applications in Construction:

x) Mansard Roof

Advantages of Mansard Roof:

Disadvantages of Mansard Roof:

Applications in Construction:

xi) Saltbox Roof

Advantages of Saltbox Roof:

Disadvantages of Saltbox Roof:

Applications in Construction:

xii) Butterfly Roof

Advantages of Butterfly Roof:

Disadvantages of Butterfly Roof:

Applications in Construction:

xiii) Bonnet Roof

Advantages of Bonnet Roof:

Disadvantages of Bonnet Roof:

Applications in Construction:

xiv) Sawtooth Roof

Advantages of Sawtooth Roof:

Disadvantages of Sawtooth Roof:

Applications in Construction:

xv) Dome Roof

Advantages of Dome Roof:

Disadvantages of Dome Roof:

Applications in Construction:

xvi) Skillion Roof

Advantages of Skillion Roof:

Disadvantages of Skillion Roof:

Applications in Construction:

xvii) Combination Roof

Advantages of Combination Roof:

Disadvantages of Combination Roof:

Applications in Construction:

3) Types of Roofing Materials

5) Requirements of Good Roof

6) Conclusion

Related video
