COST EFFECTIVE CONSTRUCTION TECHNOLOGIES

If you want know about Toilet or Site analysis or Principle of daylighting design or Kitchen or Principles of design please click the link above.


1) Construction Technologies ( Introduction )

  • Foundations
  • Walls
  • Roofs
  • Opening supports
  • Doors and Windows

2) Foundations

  • Rammed Earth
  • Random Rubble
  • Brick Masonry
  • Split Bamboo Piles
  • Under Reamed Pile Foundation
  • Arch Foundation

i) Rammed Earth Foundation

  • Rammed earth, also known as pisé (French), is a technique used in the building of walls using the raw materials of earth, chalk, lime and gravel.
  • It is an ancient building method that has seen a revival in recent years as people seek more sustainable building materials and natural building methods.
  • Rammed earth walls are simple to construct, incombustible, thermally massive, very strong and hardwearing.
  • Conversely they can be labour-intensive to construct without machinery (powered rammers), and if improperly protected or maintained they are susceptible to water damage.
  • Traditionally, rammed earth buildings are found on every continent except Antarctica.
  • From temperate and wet regions of north Europe to semi dry deserts, mountain areas and the tropics.
  • The availability of useful soil and building design for the local climatic conditions are the factors which favour its use.
  • Rammed earth foundations are made of well graded soil; preferably with a stabiliser for water resistance and higher strength.
  • The site must be well drained and great care is needed to protect the foundation from ground moisture, especially with a plastic foil or bitumen felt.
  • Bitumen paint, or a facing of rubble stone or burnt bricks are alternatives.
  • When in doubt about suitability of rammed earth foundations, they should not be used.
  • Stabilised soil blocks can be used instead, but similar protective measures are necessary.
  • Wherever possible, the earth foundation should be placed on a concrete footing.
  • The foundation is made in formwork, in the same way as the walls: layers of 10 cm soil are tamped down to 6 – 7 cm, before the next layer is filled up.
RAMMED EARTH FOUNDATION
RAMMED EARTH FOUNDATION ONE
RAMMED EARTH FOUNDATION TWO

ii) Random Rubble Foundation

  • These foundations are made of rubble (undressed stone).
  • The quality of mortar is of importance to achieve good strength. An example of a good mix is:
    – 4 parts cement,
    – 1 part lime,
    – 12 parts clean sand, and
    – sufficient water to make a workable mix.
  • Construction should start on firm, uniform strong subsoil. It should not be started on grass, black fertile soil, filled up materials or mud.
  • Under the foundation there should be a layer of lean concrete (min. 5 cm) or tamped sand; minimum depth 40 cm.
  • In earthquake areas, reinforcement with wire mesh or steel rods is required, but professional advice should be sought.
RANDOM RUBBLE FOUNDATION

iii) Brick Foundation

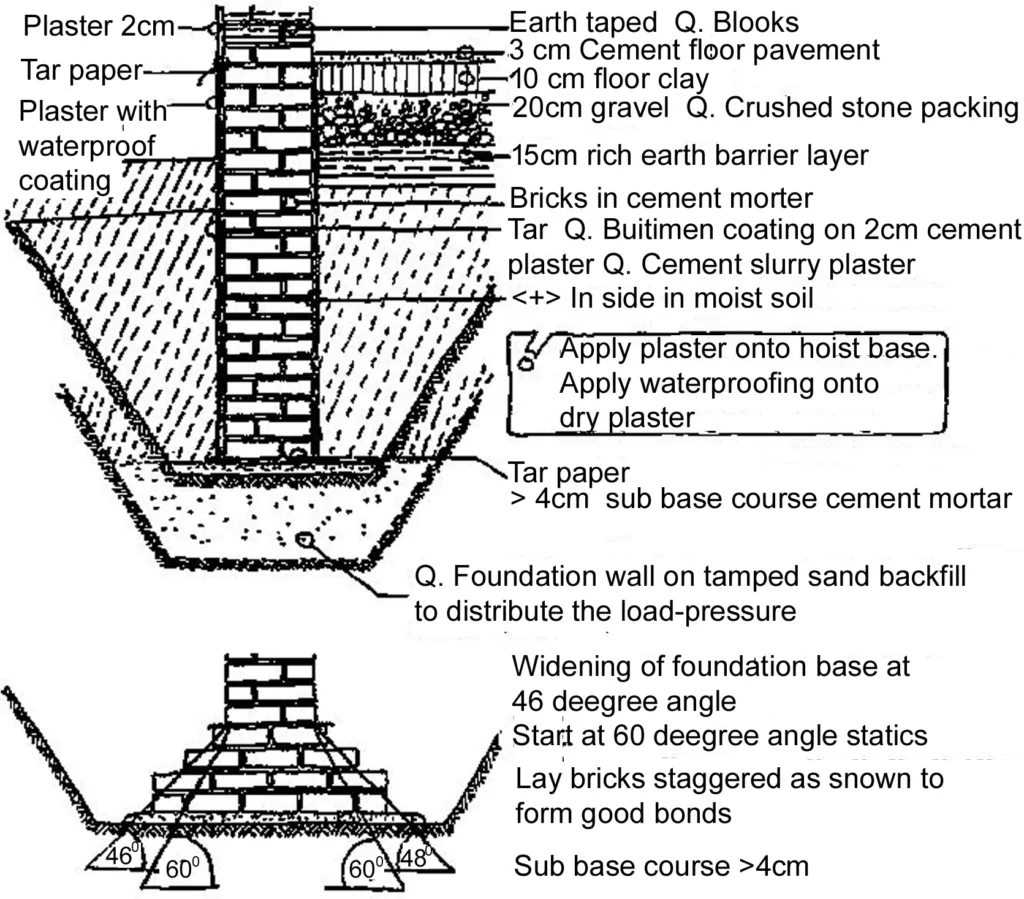

BRICK FOUNDATION

iv) Split Bamboo Piles

  • Split-bamboo piles filled up with loosely wound coconut coir strands of about 6 mm diameter each tied up with spirally wound jute thread along its length and wrapped with a layer of thickly knit jute burlap have been successfully used.
  • Treated split-bamboo steps were holed at random points and tied up together at regular intervals with galvanized iron wire after putting the coconut coir wicks inside along its entire length.
  • These specially made split-bamboo piles are used in stabilizing the soft compressible subsoil of an actual construction site which consists of a top layer of about 2 m thick soft to medium stiff sandy clayey silt underlain by a layer of about 6 m thick very soft silty clay which is again underlain by a layer of medium dense silty clayey sand.
  • The split-bamboo piles, each about 8 m long, 80 to 90 mm diameter, are driven by a drop hammer at 2 m spacing in a square grid. After installation of the piles the entire area is covered with about 2 m surcharge of sandy materials.

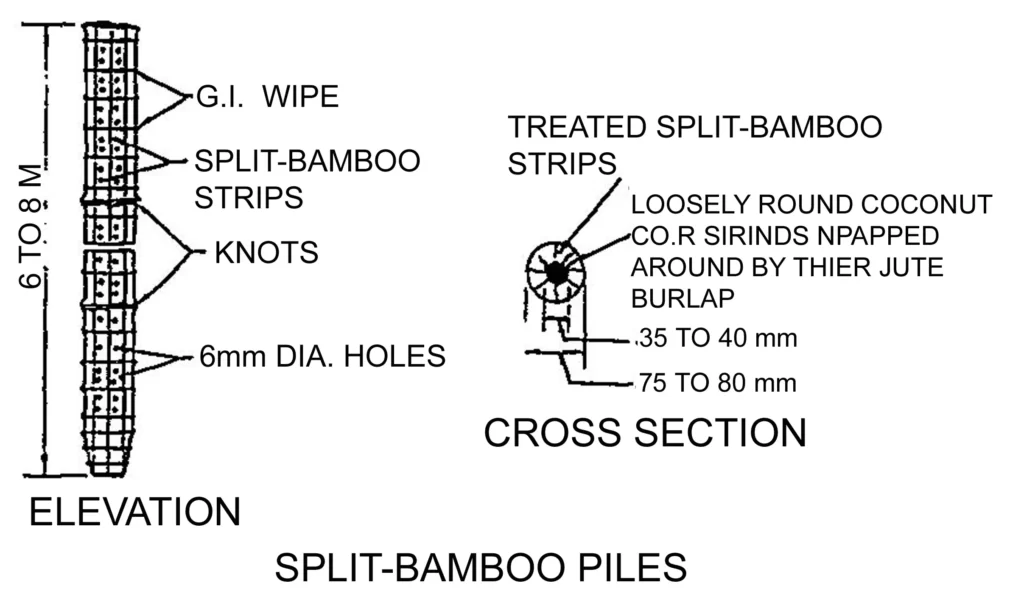

SPLIT BAMBOO PILES
SPLIT BAMBOO PILES ONE

v) Under Reamed Pile Foundation

  • Such type of foundations is ideally suitable in the areas where the black cotton soil or expansive soil is beyond 2.50 metres.
  • The basic principle of under reamed pile is to anchor the structure at a depth where ground movement is negligible due to moisture variation or other reasons.
  • Simple tools are required for construction of under-reamed piles like spiral auger, under reaming tool, and boring guide.
  • This is a well proven and established technology for construction of foundation in expansive soils.
  • For speeding up the construction, bore and under ream for large diameter and deeper pile, a mechanical rig can be used.
  • The construction and design of such foundation can be done in accordance with Indian Standard Code of Practice IS 2911-Part III.

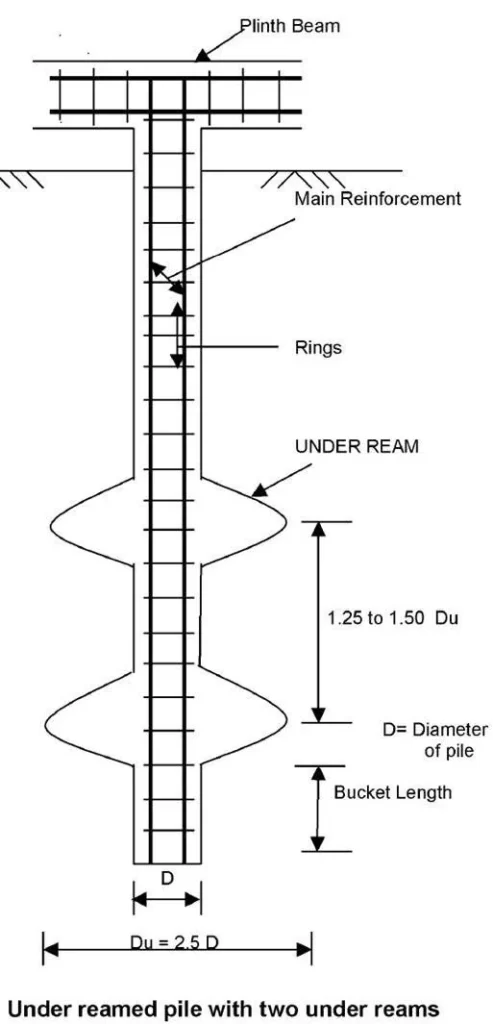

UNDER REAMED PILE FOUNDATION

vi) Arch Foundation

  • In an arch foundation, the walls are supported on brick or stone masonry arches springing from a series of square cement concrete bases as in the sketch.
  • When to use arch foundation?
    – If condition of the soil is good.
    – Generally for low rise buildings.
  • Advantages
    – Saves materials like cement, coarse rubble stone, sand, etc.
    – Labour intensive system.
  • Disadvantages
    – Requires high degree of technical supervision.
  • Method
    – Square bases of designed dimensions and positions to be
    excavated and then 150 mm thick plain cement concrete (1:3:6) should be laid.
    – Soil between these pockets should be cut as per designed profile and 75 mm thick lean concrete (1:5:10) to be laid on it.
    – Coarse rubble stone masonry arch and wall should be constructed as a monolith.
ARCH FOUNDATION

3) Walls

  • Cob Wall Construction System
  • Wattle & Daub Construction System
  • Straw Bale Construction System
  • Rammed Earth Wall
  • Adobe Block Construct Technology
  • Compressed Stabilised Earth Blocks Technology
  • Rat-Trap Bond Brick Masonry
  • Ferrocement Wall Construction System
  • Interlocking Cement Stabilised Mud Block (ICSMB) Masonry
  • Stone Concrete Block Masonry
  • Combined Wire-cut and Country Brick Masonry

4) Roofs

  • Precast Reinforced Cement Concrete Channel Roofing
  • Precast Reinforced Cement Concrete Plank & Joist Roofing
  • Prefabricated Brick Panel Roofing
  • Precast Hollow Slabs Roofing
  • Precast Ferrocement Channel Roofing
  • Filler Slab Roofing
  • Jack Arch with Bricks and Precast RCC Joist Roofing
  • Stone on Precast RCC Joist Roofing
  • Micro Concrete Tiled Roofing
  • Corbelled Brick Pyramid Roofing

5) Opening Supports and Doors & Windows

  • Opening Supports
    Precast Reinforced Cement Concrete Lintel
  • Brick and Reinforced Cement Concrete Lintel
  • Brick Arch
  • Brick Corbel Arch

Doors & Windows

  • Frameless Doors and
    Windows
  • Brick Jalis
