CHINESE LANDSCAPE ARCHITECTURE

If you want know about Auditorium design or Landscape garden or Introduction of landscaping and its role or About landscape or Terminology used in landscape please click the link above.


1) Chinese landscape features

  • A Chinese garden is formed by three-fold spaces so as to provide human-scale living spaces :
  • Big garden
  • small garden
  • garden-villas
  • Combination of such natural elements as rock, water, trees and flowers and artificial elements as architecture, painting and poetry.
  • The design concept was to provide a “spiritual utopia” for people to come back to Great Nature, to come back to one’s inner heart, to come back to ancient idealism
  • Detailing : Most exquisite elements can be found in details. For eg : footpaths, imaginatively patterned with colored pebbles into a variety of designs along the ground. A common motif is that of the square within a circle, signifying the ancient belief that the “heaven is round and the earth square“
  • Good luck omens also found. Whilst the bat and crane symbolize good fortune and longevity, the fishing net portends affluence. There are, in addition, often depictions of scenes from well-known traditional paintings and legends.

2) Four elements of chinese gardens

i) Rocks

Rocks were believed to have

  • T’ang dynasty – ORIGIN
  • Served as natural statues
  • a concentrated amount of natural energy
  • symbolized the dwelling places of the Daoist immortals

Types of rocks

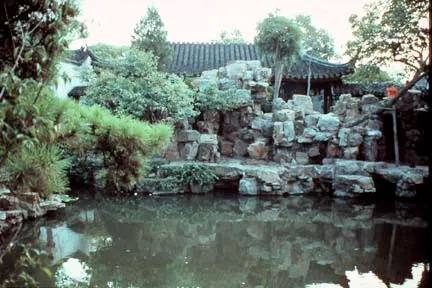

Recumbent

TYPES OF ROCKS (RECUMBENT)

Artificial mountain in garden of the master of nets

Standing

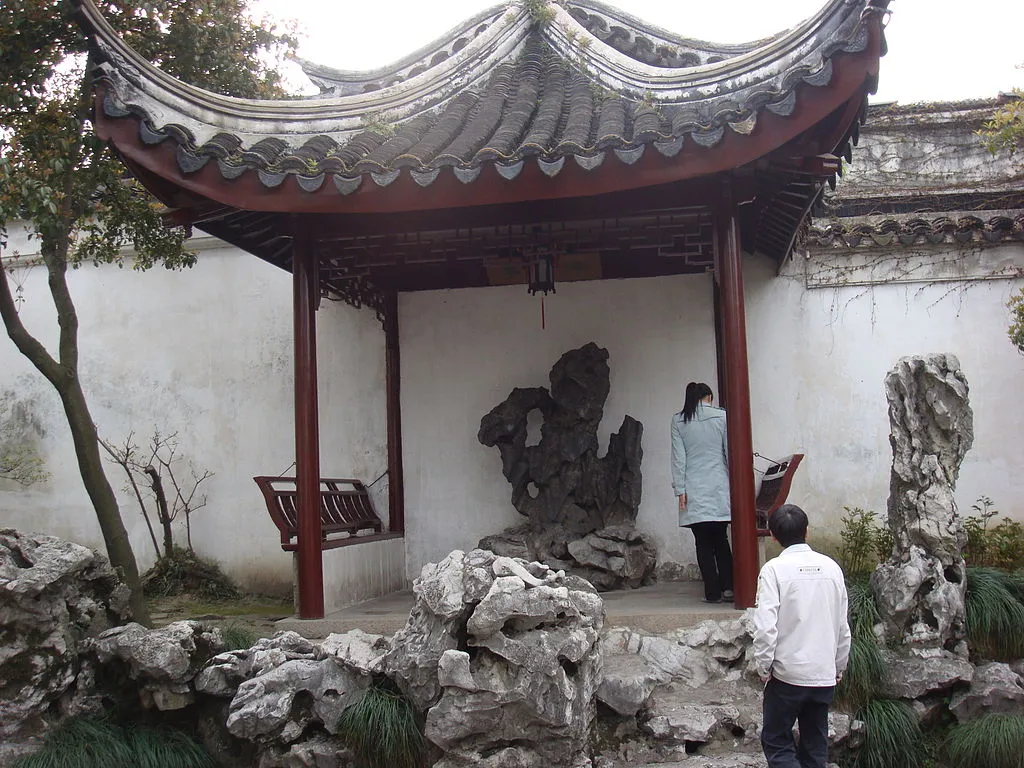

TYPES OF ROCKS ONE (STANDING)

Lake Tai rock at the Garden of the Master of Nets, Suzhou

ii) Water

  • Serves as a balance for other elements in nature and in the garden
  • Semi-circular bridges chosen because they “complete themselves” as they are reflected in the water; symbolic reference to the moon. One expression equates watching the moon (as reflected in water) with “washing the soul
WATER ELEMENTS OF CHINESE GARDENS

iii) Buildings

  • CONNECTIONS by covered walkways (PAVILLIONS)
  • VISUAL LINKAGE by views glimpsed through open doorways, lattice windows, and decorative openings in walls
  • Picturesque views framed by parts of the buildings
BUILDINGS ELEMENTS OF CHINESE GARDENS

iv) Plants

  • symbolic of meaning in poetry and literature
  • pine, cypress, plum and bamboo
  • flowering plants like the peony, orchid, and chrysanthemum

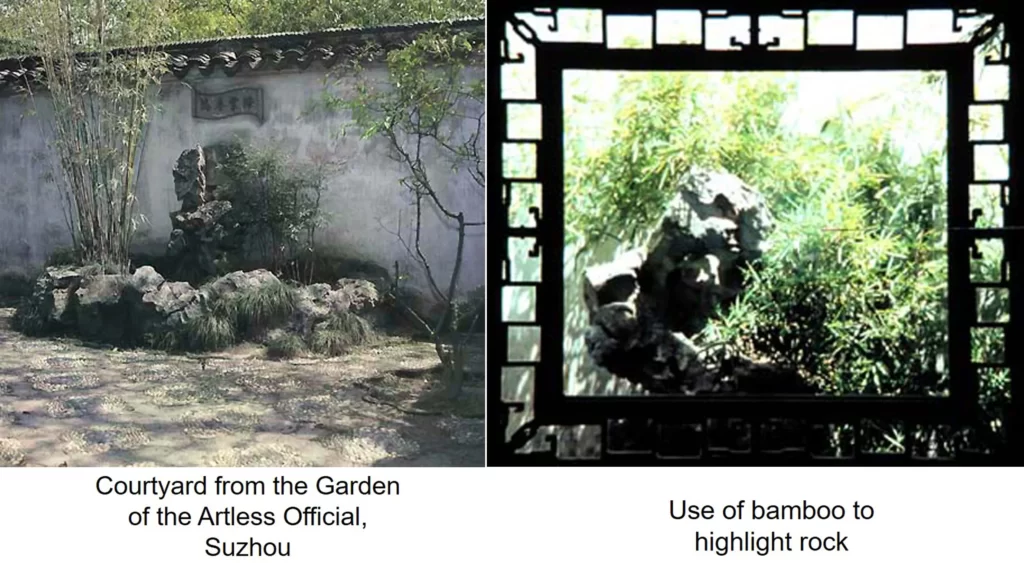

PLANTS ELEMENTS OF CHINESE GARDENS
  • Seasonal arrangements of brightly colored flowering plants often highlight an area that might otherwise go unnoticed.

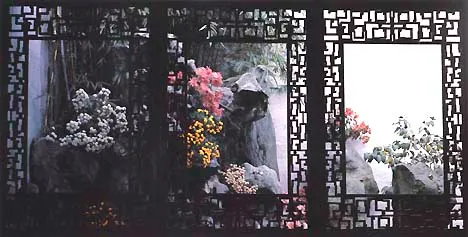

PLANTS ELEMENTS OF CHINESE GARDENS ONE

3) History

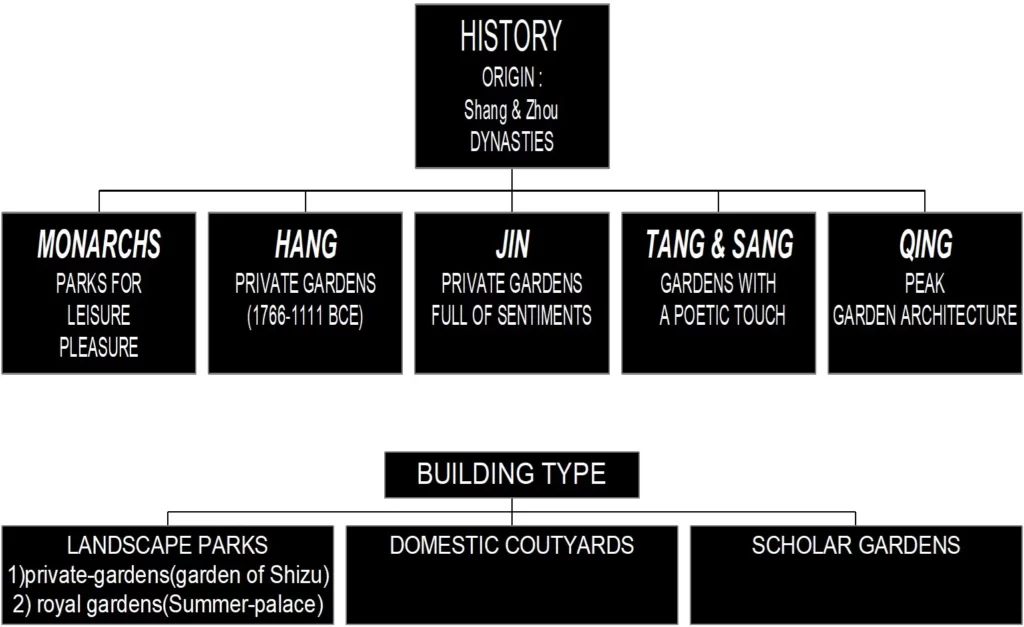

HISTORY OF CHINESE GARDENS

4) Difference between japaneese & chineese gardens

  • Japanese garden has: ‘exquisite arrangements of stone and moss, its manicured pines and dry streams, and above all its sense of being so perfect in itself that the visitor feels even the intrusion of his own senses onto the garden constitutes a violation‘
  • A chinese garden is ‘confusing and dense, dominated by huge rock-piles and a great number of buildings all squeezed into innumerable, often very small spaces’.
  • Chinese gardens are cosmic diagrams, revealing a profound and ancient view of the world and of man’s place in it’. Yet they have also been:

–The background for a civilizations

–Places where great poets and painters have met and worked

–Settings for peaceful contemplation

–Settings for family festivals and elaborate dramatics

5) Humble administrator’s garden

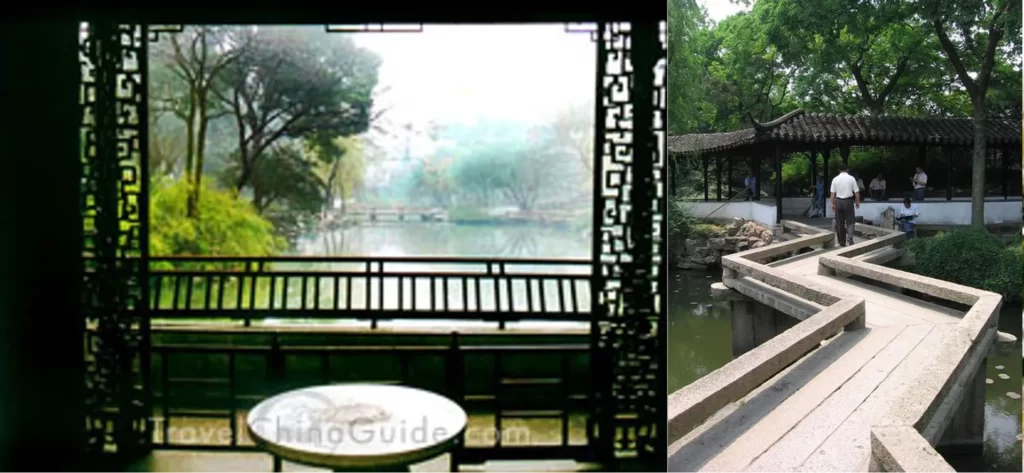

HUMBLE ADMINISTRATOR'S GARDEN
  • The Humble Administrator’s Garden (Zhuo Zheng Yuan) is one of four great chinese gardens located in Suzhou.
  • Located in the northeastern part of Suzhou city, Humble Administrator’s Garden, with a total area of 51,950 square miles.
  • The garden is representative of Chinese classical gardens in the Ming Dynasty.
  • Focused on a central pond with pavilions, terraces, chambers, and towers located nearby.
  • Humble Administrator’s Garden is divided into three parts: the eastern(residential), middle(main-garden) and western(inner-garden) parts.
HUMBLE ADMINISTRATOR'S GARDEN ONE
  • The middle part is the cream of the garden with marvelous mountains, clear water, exquisite buildings and exuberant trees and flower and of the scenery in the south of the lower Yangtze River.
  • Elaborately conceived, the designer of the garden used the architecture technique know as “borrowed view from afar” in the layout of this part, aiming to enlarge eyeshot within a limited space.
  • Seen westward, a pagoda would be seen sitting in western garden, which actually is situated 1km away from the garden.
  • Humble Administrator’s Garden is a typical example of the art and treasure house containing arts of architecture, calligraphy, carving, painting, and bonsai.

6) The summer palace in beijing

THE SUMMER PALACE IN BEIJING
  • Composed mainly of Longevity Hill and Kunming Lake.
  • The Summer Palace occupies an area of 294 hectares (726.5 acres), three quarters of which is water. Guided by nature, artists designed the gardens exquisitely so that visitors would see marvelous views and be amazed by perfect examples of refined craftwork using the finest materials.
  • The Summer Palace can be divided into four parts: the court area, front-hill area, front-lake area, and rear-hill and back-lake area.

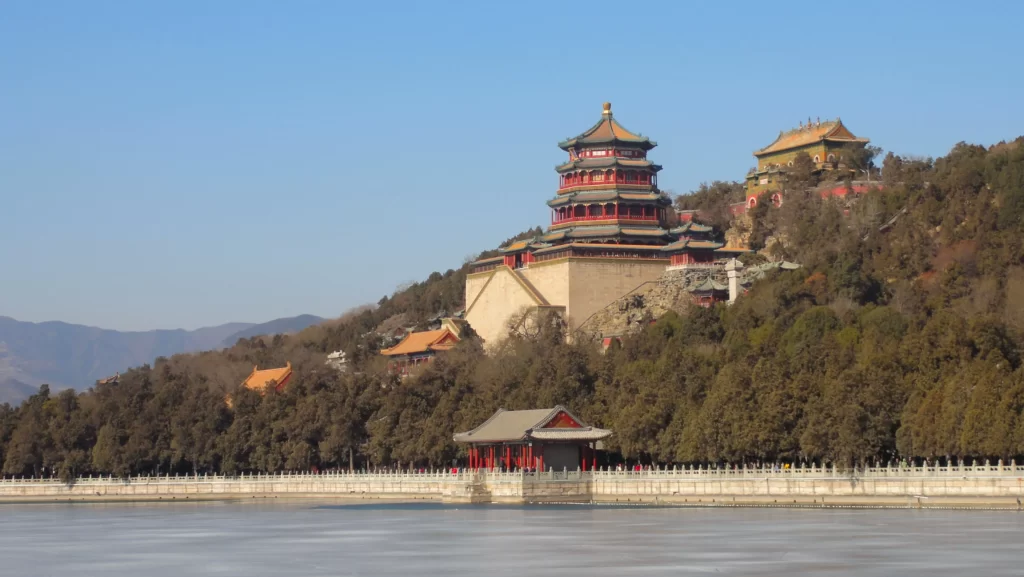

THE SUMMER PALACE IN BEIJING ONE
  • Composed mainly of Longevity Hill and Kunming Lake.
  • The Summer Palace occupies an area of 294 hectares (726.5 acres), three quarters of which is water. Guided by nature, artists designed the gardens exquisitely so that visitors would see marvelous views and be amazed by perfect examples of refined craftwork using the finest materials.
  • The Summer Palace can be divided into four parts: the court area, front-hill area, front-lake area, and rear-hill and back-lake area.

7) The mountain resort

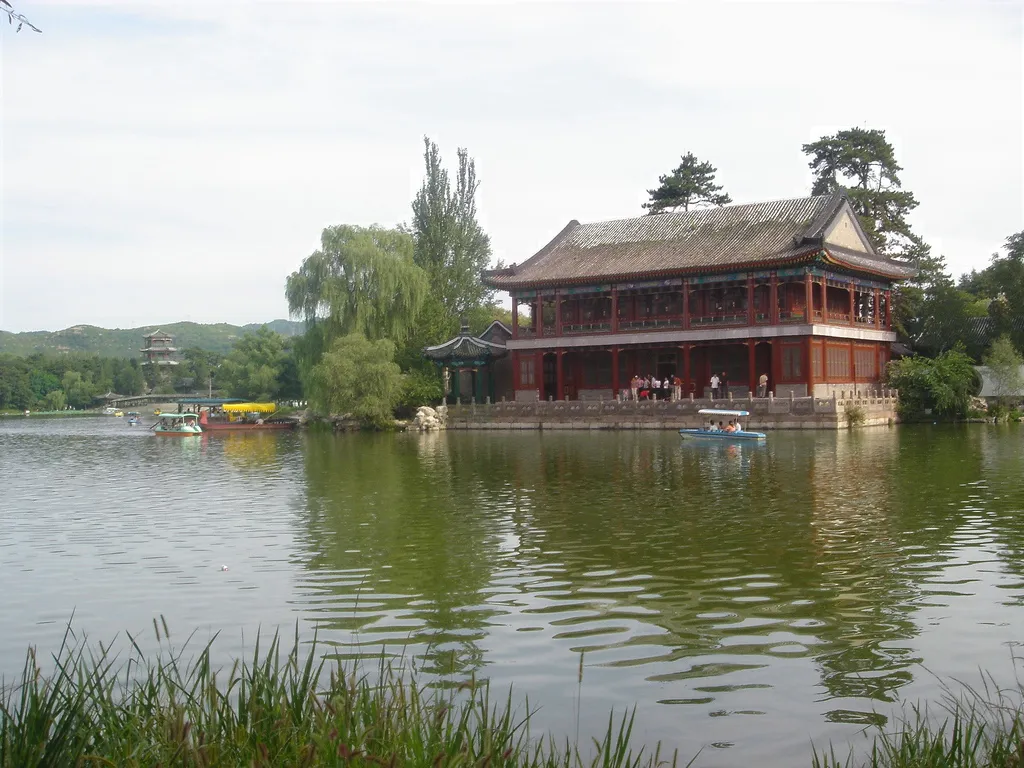

THE MOUNTAIN RESORT
  • It covers a total area of 564 square kilometers, and is twice as large as the Summer Palace in Beijing.
  • The architectural style of the palace is very unique, and similar to the resident houses in North China.
  • Black bricks and gray tiles, rock steps and the cute courtyard covered with old pine trees look very old-timey, peaceful and elegant.

Scenic Area — Lake Zone, Plain Zone and Mountain Zone

Lake Zone

  • Water gives everything infinite vitality and energy, so the scenery of the lake zone sparkles like a diamond in the Mountain Resort.
  • Lying in the southeast of the resort, the lake zone has nine lakes and ten islands .

Plain Zone

  • Going north, you come to the plain zone. Facing the palace wall on the east with the mountains rising to the west, this area is mainly covered with grassland and woods.

Mountain Zone

  • There are four great valleys from north to south: Pine-cloud Valley, Pear Valley, Pine Valley and Filbert Valley. There you can enjoy the mountain scenery completely, including undulating hills, flourishing woods, steep peaks, gurgling streams and white waterfalls .

8) Lingering – garden

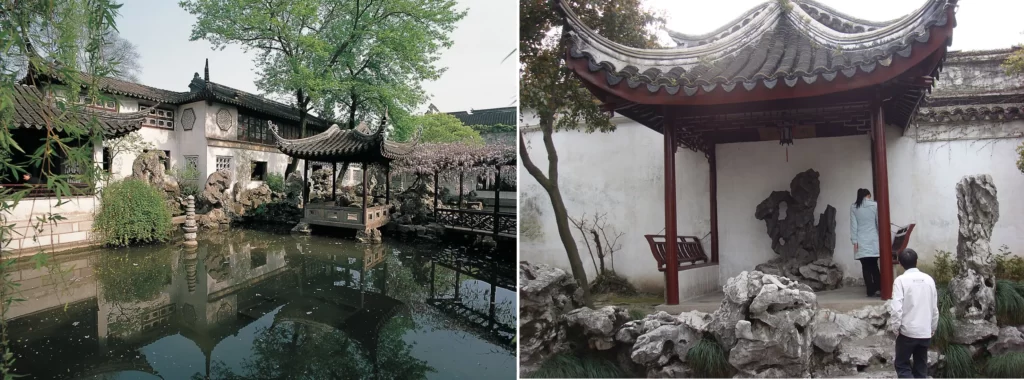

LINGERING GARDEN
  • private garden – at residence of Xu Taishi
  • has multi-story houses in the front and halls in the rear, and a range of stone mountains built by the well-known master Zhou Bingzhong, resembling a long scroll of landscape painting.
  • garden is separated into the eastern(garden courts),central(man-made mountain & lake), northern(cottages with bamboo fences)and western (woody hills)parts
  • artificial hill made from Taihu rock(6.5 m high)

9) Scholar Gardens

  • Chinese civil servants made places in which to meditate – on a highly intellectual representation of nature.
  • Rocks vital component of scholar gardens. They brought mountains into towns. Small rocks were used to rest calligraphy brushes upon. Large stones were placed in gardens, often grouped to suggest the mountain peaks which featured in landscape paintings or placed by water to suggest the Isles of the Immortals. The Chinese word for ‘landscape’ is shanshui, meaning ‘mountains and water’.
  • Scholars led the way in developing this type of garden and that their design ideas were followed by emperors.
  • For eg : Humble administrator’s garden

10) Feng-shui garden

  • Garden considered Yin and home Yang, so the effect that house & garden together create should be balanced
  • flowerbeds and paths in the garden should be curved in order to counter the straight lines and angles of the house.
  • use of birdbath or fountain as element water(symbolic of wealth)
  • Use of plants with thick fleshy leaves
  • colorful flowers as they attract positive energy.
