CONCRETE AND RCC CHARACTERISTICS

If you want know about Dpc and water proofing or Introduction of pile foundation or Types of concrete and its uses or Specifications in architecture work or Types of footing please click the link above.


1) Advantages of reinforced concrete

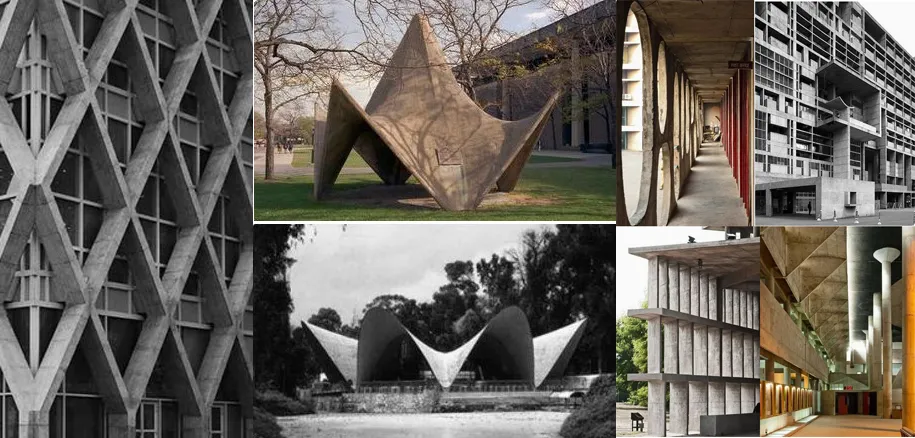

ADVANTAGES OF REINFORCED CONCRETE
  • It has relatively high compressive strength.
  • It has better resistance to fire than steel
  • It has long service life with low maintenance cost.
  • In some types of structures such required making it widely used in pre-cast components
  • It yields rigid members with minimum apparent deflection
  • By using steel, cross sectional dimension of structural members can be reduced.

2) Disadvantages of reinforced concrete

  • It needs mixing, casting and curing, all of which affect the final strength of concrete
  • The cost of forms used to cast concrete is relatively high
DISADVANTAGES OF REINFORCED CONCRETE
DISADVANTAGES OF REINFORCED CONCRETE ONE

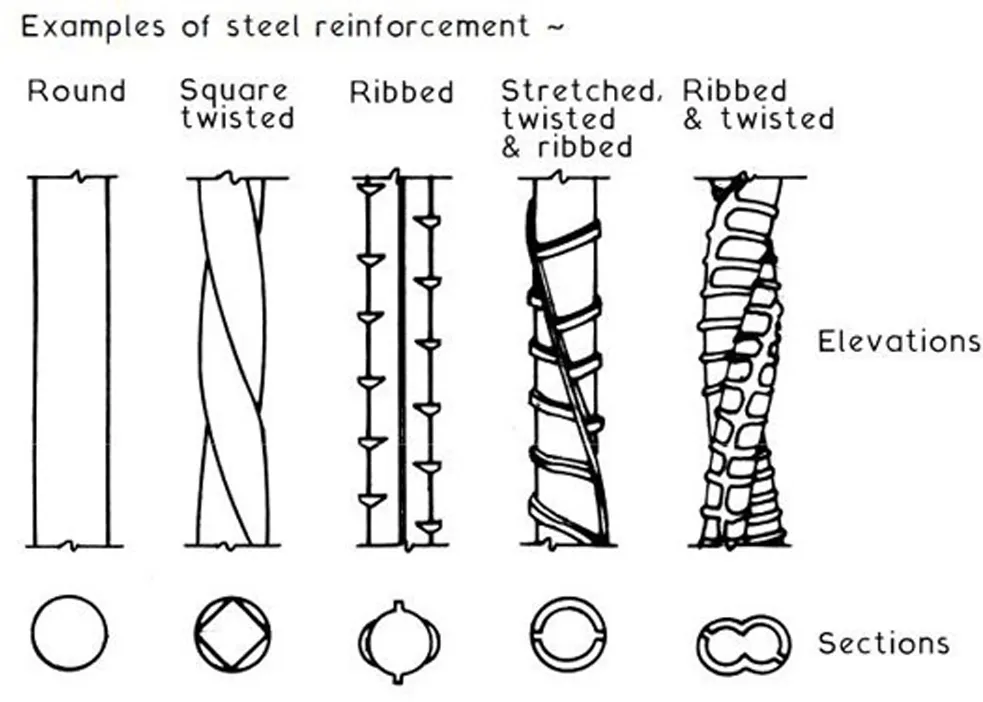

DISADVANTAGES OF REINFORCED CONCRETE TWO

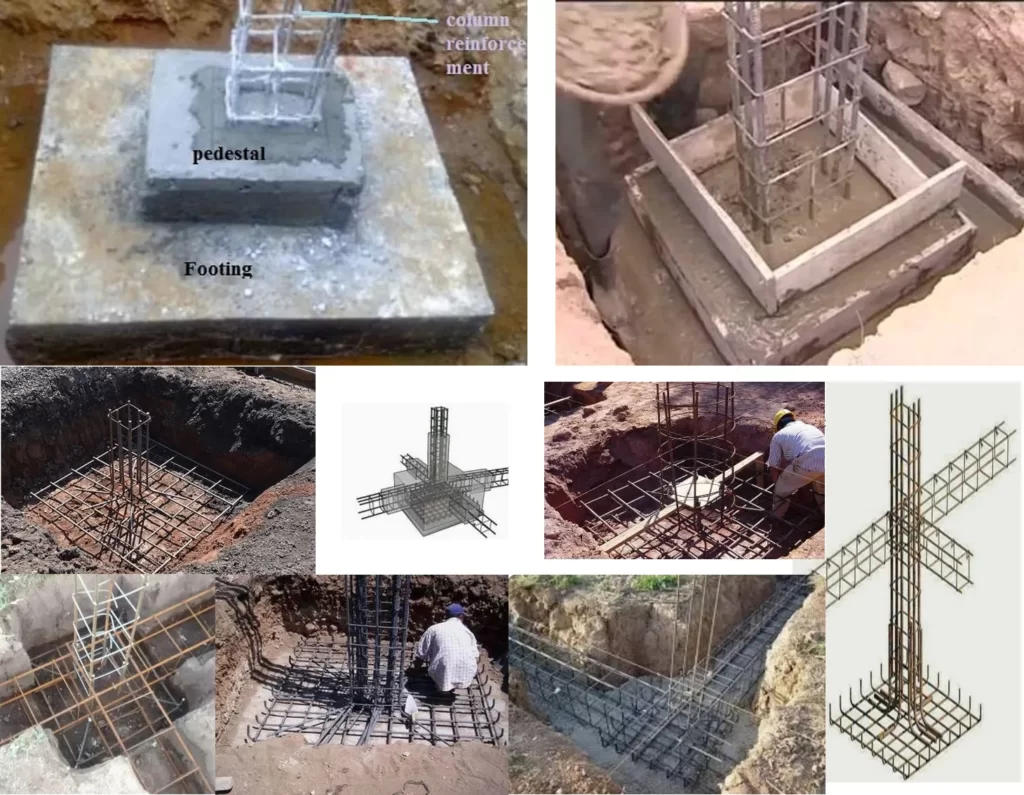

3) RCC Pedestal

RCC PEDESTAL

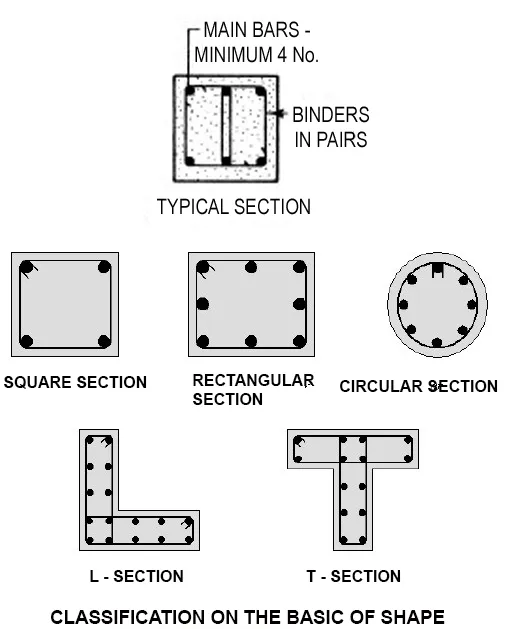

5) RCC Column

RCC COLUMN

6) Characteristics

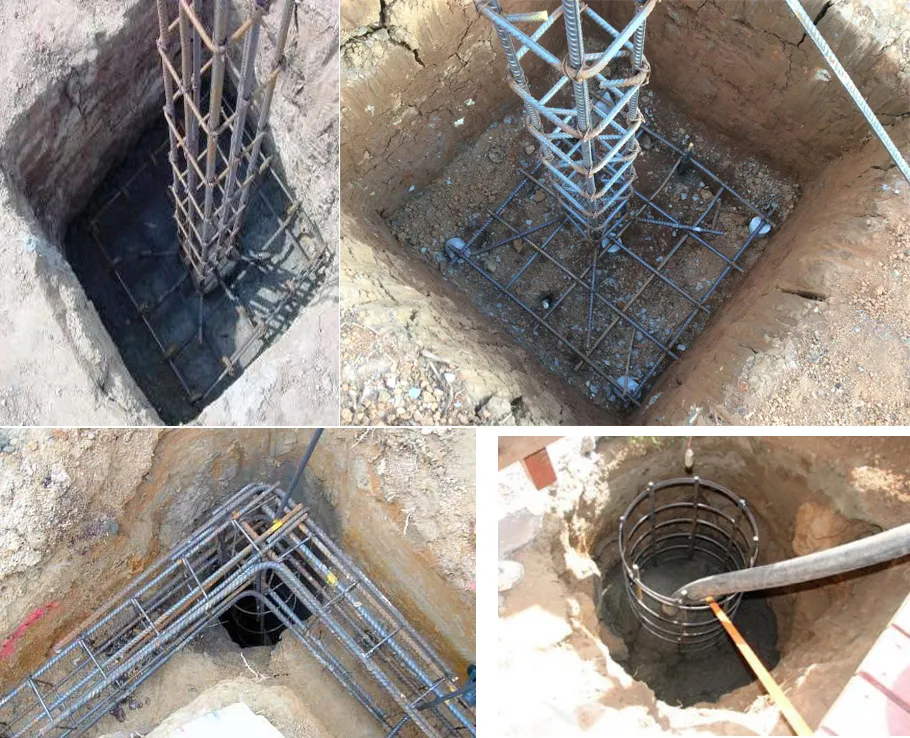

  • A) Setting up of reinforcement bars. The thickness of bars and the number of bars used depends on the load it has to bear.

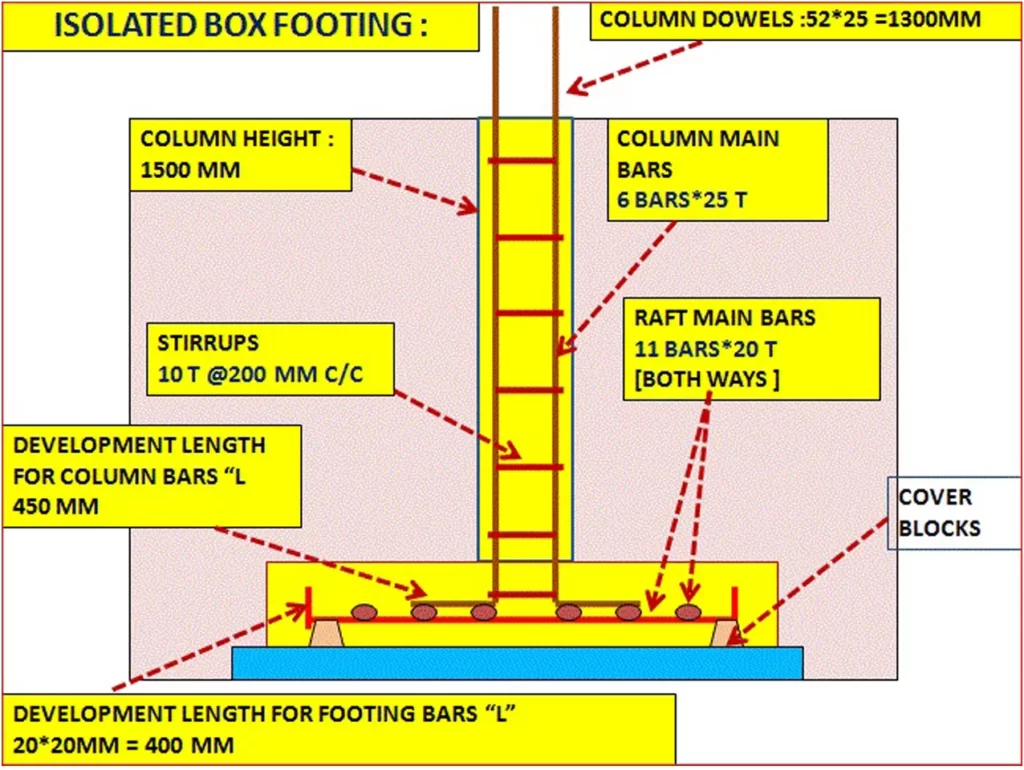

CHARACTERISTICS OF CONCRETE AND RCC
CHARACTERISTICS CONCRETE AND RCC ONE
Basic principles
  • Formwork – Sides can be designed to offer all the necessary resistances as a single member or alternatively they can be designed to use a thinner material which is adequately.
  • Strutted – For economic reasons the latter method is usually employed
BASIC PRINCIPLES OF CONCRETE AND RCC
  • formwork soffits can be designed to offer all the necessary resistance to the imposed loads as a single member or alternatively they can be designed to a thinner material which is adequately propped – For economic reasons the latter method is usually employed

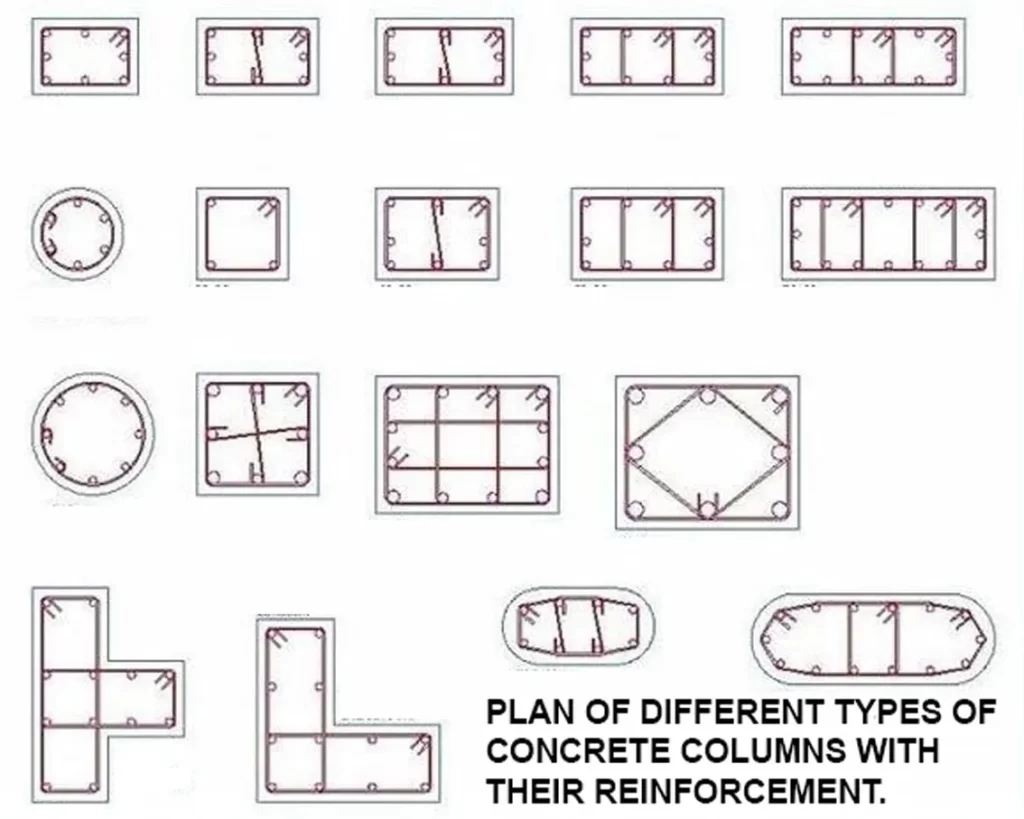

Reinforcement
REINFORCEMENT
  • Number of reinforcement bar used in columns may be varied instead of varying the size of columns.
  • Formations of lateral reinforcement bars depends on the number of vertical reinforcement bars used in a column.
  • Lateral ties should have a minimum diameter of 10 mm
  • Type of reinforcement used is usually T12, reinforcement steel with diameter of 12mm.

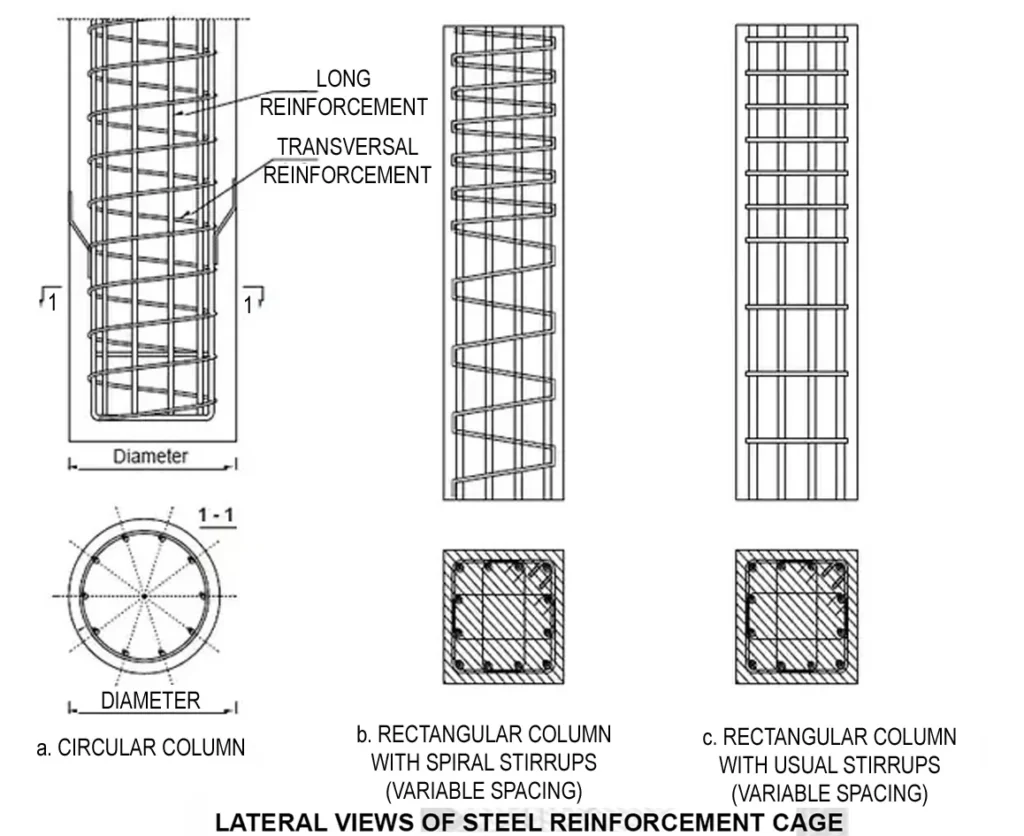

Lateral views of steel reinforcement cage
STEEL REINFORCEMENT CAGE

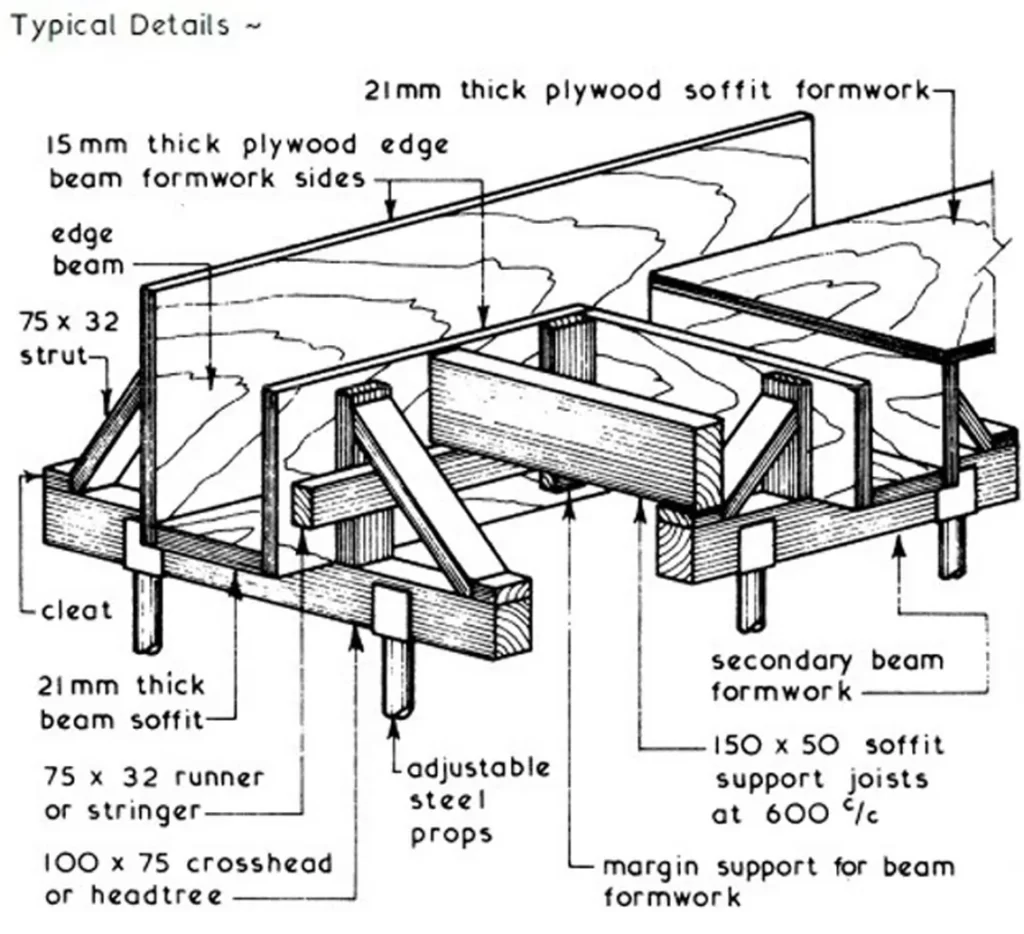

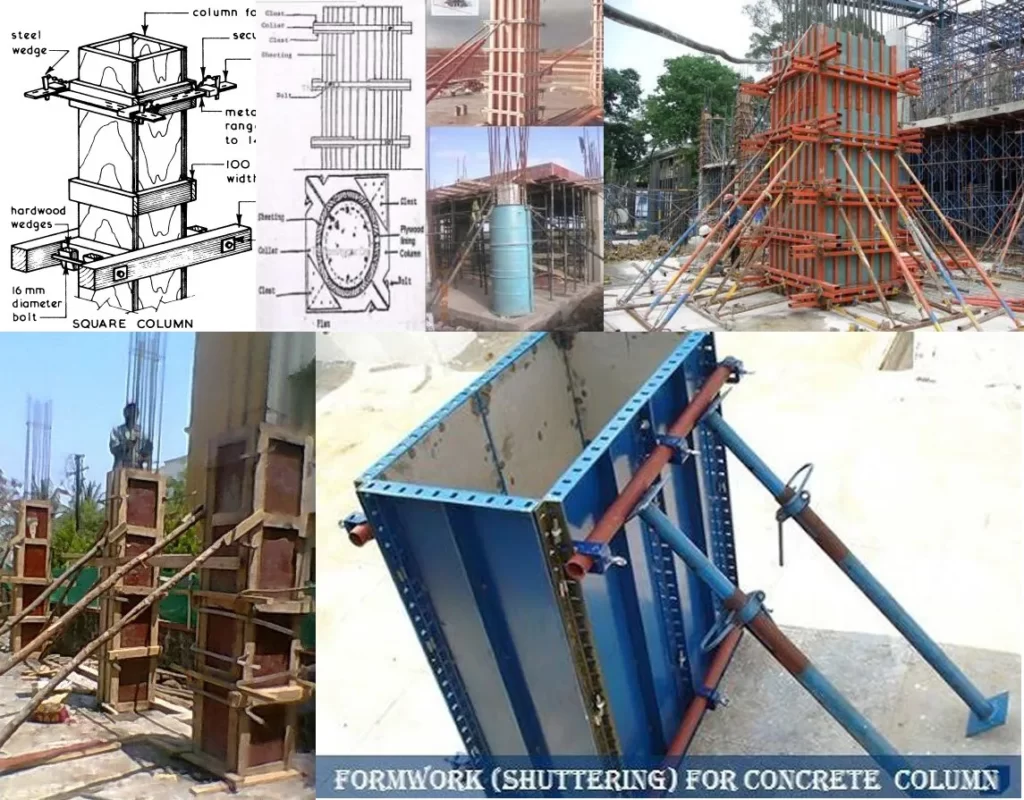

  • B) Cladding of formwork using plywood.
STEEL REINFORCEMENT CAGE ONE

  • C) Cement is being poured into the formwork. A concrete vibrator is then to release trapped air and excess water.

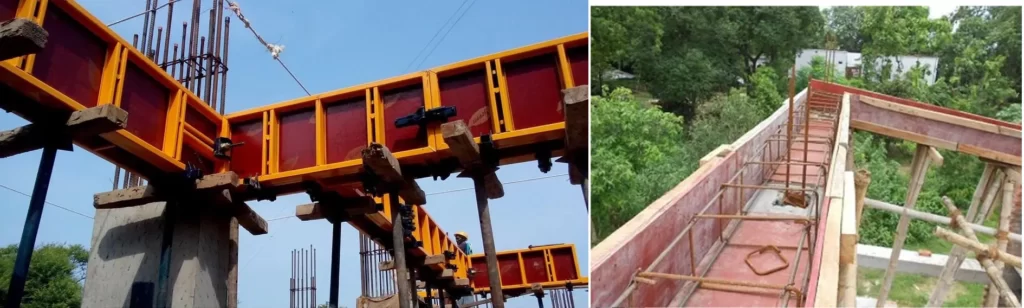

  • D) When the concrete id column have dried up after 28 days, cladding of formwork for beams can be done.
STEEL REINFORCEMENT CAGE TWO
STEEL REINFORCEMENT CAGE THREE

  • E) Reinforcement bars for beams are set up.
STEEL REINFORCEMENT CAGE FOUR
  • F) Cement is poured into the formwork. A concrete vibrate is the use to ensure that the concrete settle firmly in place.
STEEL REINFORCEMENT CAGE FIVE

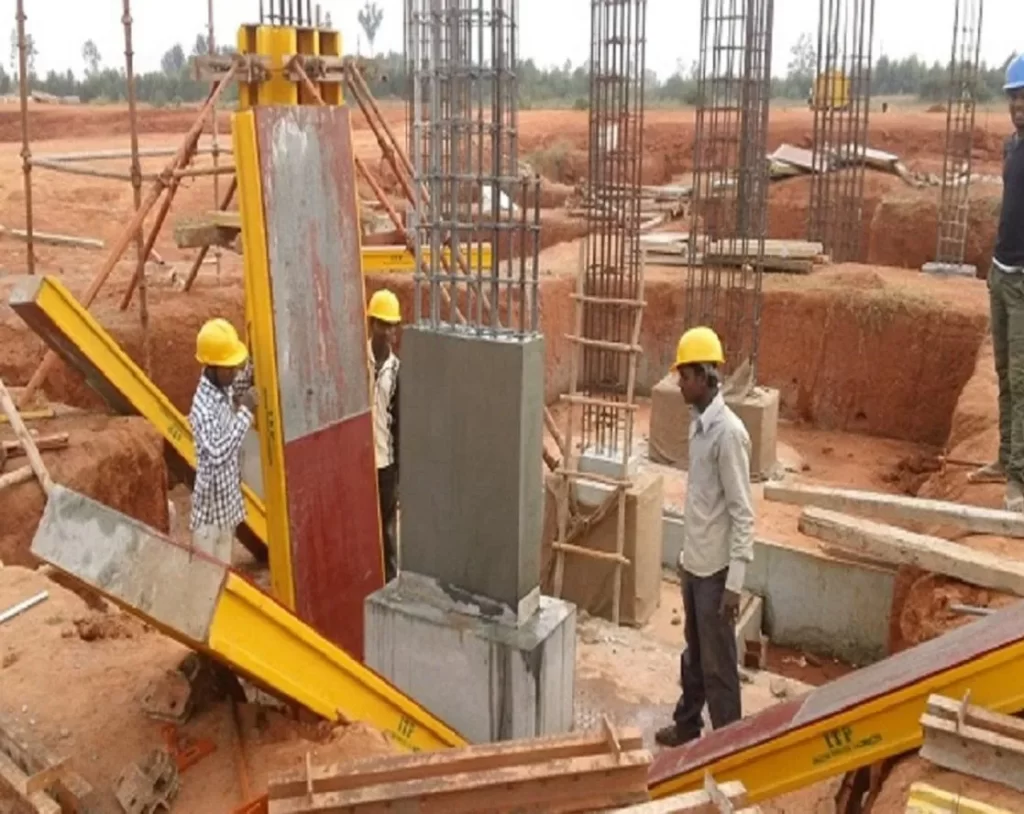

  • G) The framework is removed after the concrete dried. Column and beams are formed. Excess rebar on top of column is for continuation of rebar for next floor.
STEEL REINFORCEMENT CAGE SIX

6) Curing

Why curing of concept is required?

Curing of concrete is required for the following reasons:

  • To prevent the concrete to dry out prematurely due to  solar radiation and wind. This prevents plastic shrinkage of concrete.
  • It helps to maintain the concrete temperature by allowing the hydration process. Hydartion   process requires water to carry on and release heat.
  • Curing helps the concrete to harden and bond with internal material and reinforcement. This helps to prevent damage to bond between concrete and reinforcement due to vibration and impact.
  • This helps development of impermeable, crack free and durable concrete.

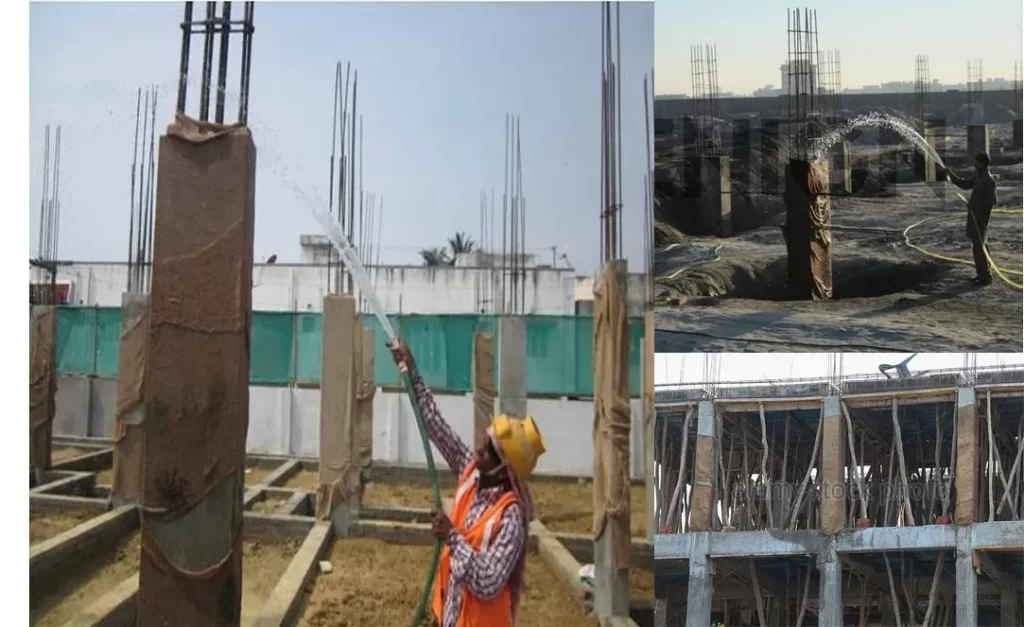

Curing Methods

  1. Water Curing
  2. Membrane Curing
CURING METHODS

What is the duration of concrete curing?

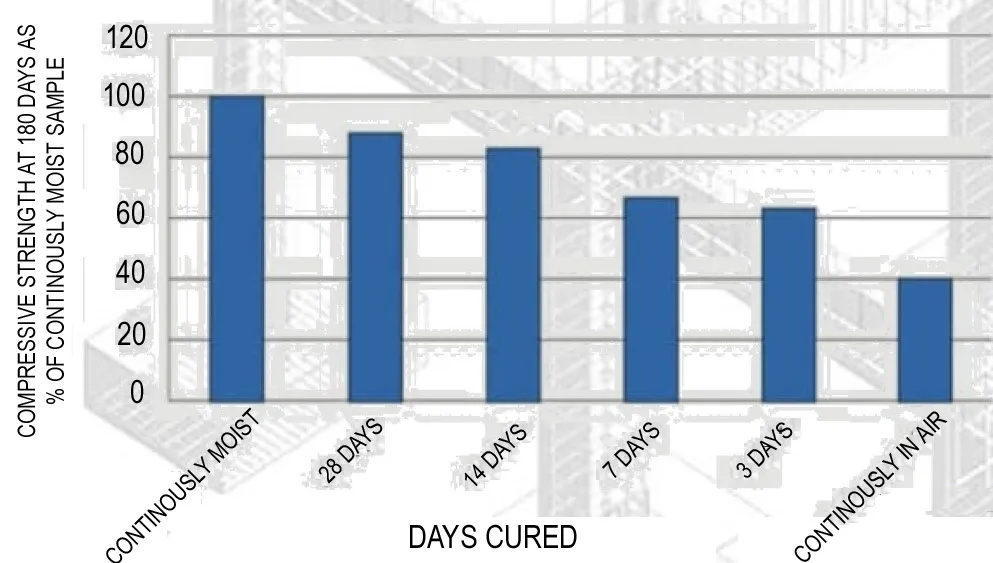

  • Curing of concrete for longer during increase the strength and durability of concrete structural member. The following figure explains how the compressive strength of concrete increases with time when it is cured for longer duration.
WHAT IS THE DURATION OF CONCCRETE CURING
WHAT IS THE DURATION OF CONCCRETE CURING ONE

The curing duration of concrete depends on

  • The reason for curing i.e. to prevent plastic shrinkage, temperature control, strength and durability of concrete.
  • The size of concrete structural member
  • The type of concrete grade and rate of hardening of concrete.
  • The temperature and moisture condition of surroundings
  • The exposure conditions of concrete surface during and after curing
  • The requirement of curing duration as per specification of concrete
