APPENDIX 1C

If you want know about Energy Conservation Building Code or About GRIHA and its function or GRIHA rating process or About green building or GRIHA rating & registration please click the link above.


Passive design strategies

  • The suggestive list of passive design strategies as per the climate typologies along with their analysis methodologies is given below:

Note: The project team is free to adopt other passive design strategies with appropriate justification supported by quantification and analysis. This list is indicative and it is not exhaustive. Strategy is only applicable to climate types marked in GREEN.

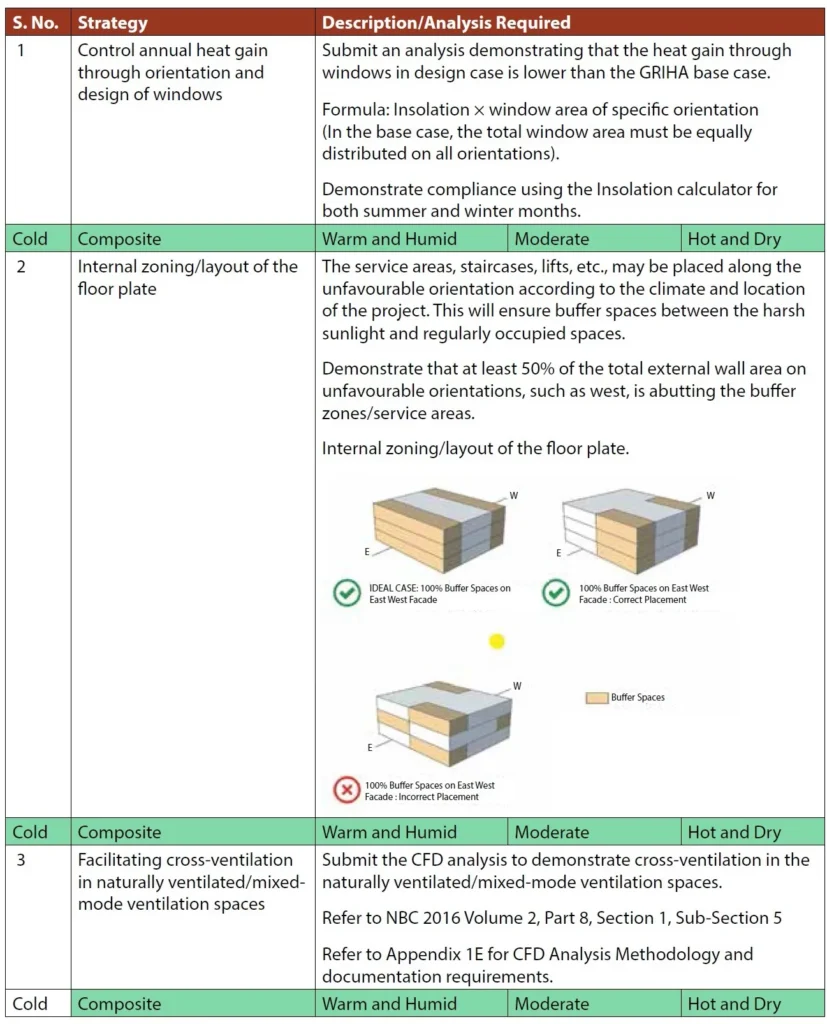

APPENDIX 1C

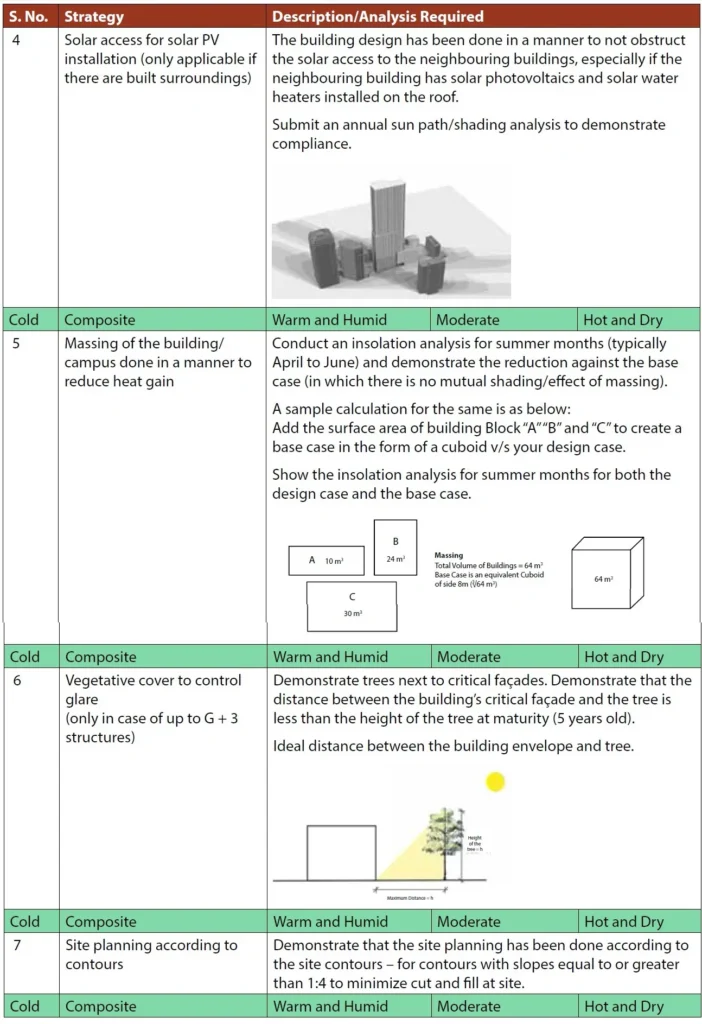

APPENDIX 1C ONE
APPENDIX 1C TWO

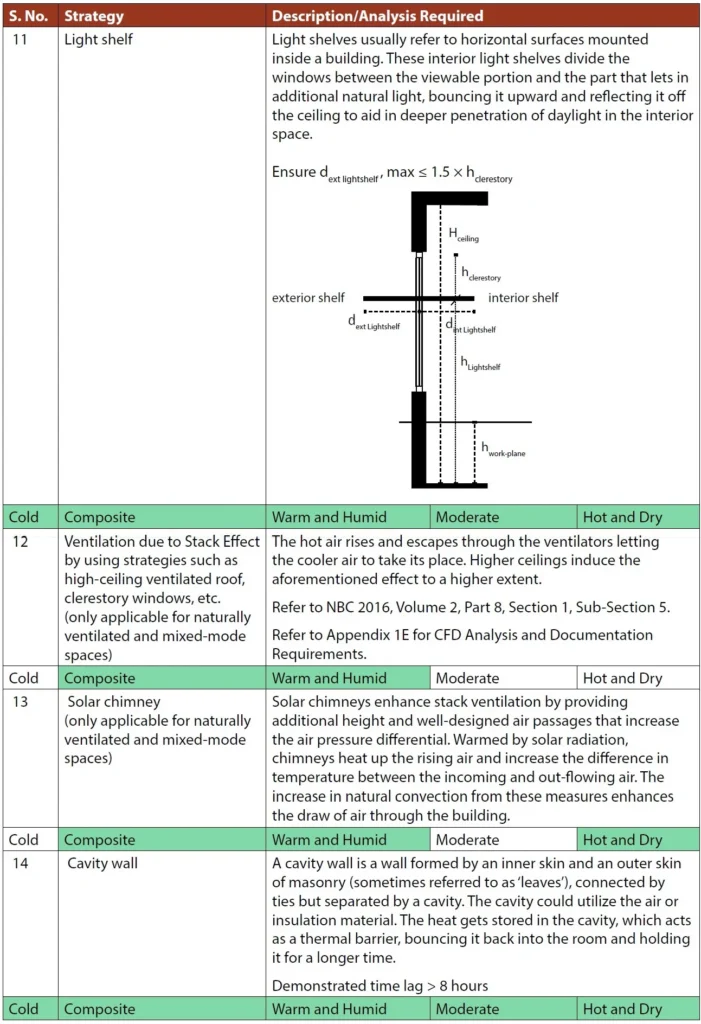

APPENDIX 1C THREE

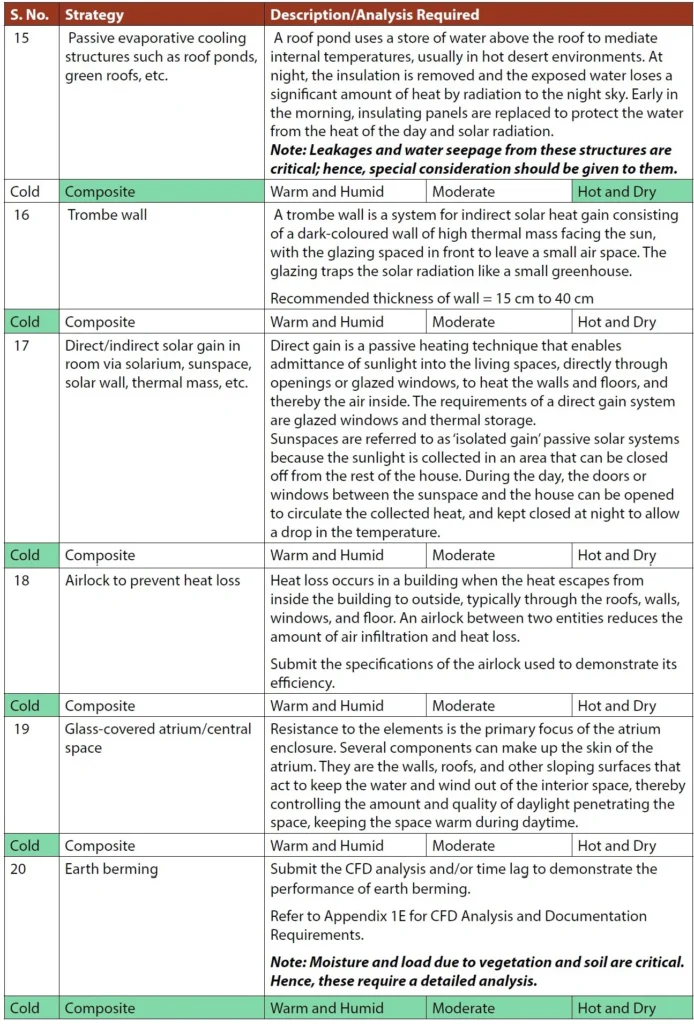

APPENDIX 1C FOUR
