Classification, Uses and Materials
1. Introduction
Sanitary appliances are essential components of a building’s water supply, drainage, and sanitation systems. They provide facilities for personal hygiene, washing, bathing, urination, and the safe collection and discharge of wastewater and human waste.
In architectural design, selecting sanitary appliances involves more than choosing attractive bathroom fixtures. Architects must consider the purpose of the building, available space, user comfort, accessibility, water consumption, plumbing connections, maintenance requirements, and the coordination of architectural drawings with plumbing and other building services.
A washbasin in a residential bathroom, for example, has different planning requirements from a row of basins in a school or a clinical handwashing station in a healthcare facility. Similarly, a water closet in an accessible toilet requires careful coordination of the fixture, grab bars, approach space, door swing, and associated plumbing.
This guide explains the principal types of sanitary appliances, their functions, common materials, applications, and important considerations for architectural planning.
2. What Are Sanitary Appliances?
Sanitary appliances are fixtures installed in buildings to support personal hygiene, washing, bathing, and the collection or discharge of human waste and wastewater. Common examples include water closets, washbasins, urinals, bidets, sinks, bathtubs, and specialist cleaning appliances used in healthcare facilities.
They are connected, as appropriate, to a building’s water supply and sanitary drainage systems. Some appliances receive clean water and discharge wastewater; others are primarily designed to receive and flush away soil or human waste.
Classification of sanitary appliances
For introductory building-services study, sanitary appliances can be grouped into two broad functional categories:
- Soil appliances: Fixtures intended to receive human excreta or similar foul waste, such as water closets and urinals. Specialist bedpan and slop sinks may also be included in this functional group.
- Waste appliances: Fixtures mainly intended to receive wastewater from washing, bathing, and other activities, such as washbasins, sinks, wash-troughs, and bathtubs.
This is a useful educational classification, but the exact classification and drainage arrangements should follow the applicable plumbing code and project specifications. The categories describe fixture functions, not necessarily separate pipe systems in every building.
3. Types of Sanitary Appliances: Quick Reference
| Appliance | Main function | Typical application |
|---|---|---|
| Water closet (WC) | Disposal of human waste | Homes, offices, public and institutional toilets |
| Squatting pan | Squatting-position toilet use | Residential and public sanitation facilities |
| Urinal | Urination | Public, commercial and institutional toilets |
| Bidet | Personal cleansing with water | Residential and selected hospitality bathrooms |
| Washbasin | Handwashing and personal washing | Bathrooms, toilets and wash areas |
| Wash-trough | Simultaneous washing by multiple users | Schools, workplaces and public facilities |
| Kitchen sink | Washing food, utensils and equipment | Kitchens and food-preparation areas |
| Laboratory sink | Washing laboratory equipment | Laboratories and technical work areas |
| Bathtub | Bathing | Residential and hospitality bathrooms |
| Shower receptor or tray | Collection of shower wastewater | Bathrooms and shower rooms |
| Drinking fountain | Drinking water delivery | Schools, offices and public buildings |
| Slop sink | Disposal of certain dirty liquids and cleaning equipment | Janitor rooms and selected service areas |
| Bedpan washer or hopper | Handling and cleaning of patient-care vessels | Healthcare facilities |
Note: A shower tray, sink, and drinking fountain may be grouped with plumbing fixtures or specialist sanitary fixtures depending on the terminology used in a particular standard. The table classifies them primarily by their function.
4. Soil Appliances
Soil appliances are designed to receive human excreta or comparable foul waste and discharge it through an appropriate sanitary drainage arrangement.
4.1 Water closet (WC)
A water closet is a toilet fixture consisting primarily of a bowl, a trap arrangement, and a flushing system. It is one of the most frequently specified sanitary appliances in residential, commercial, and institutional buildings.
Types of water closets
1. Squatting-type water closet
The user adopts a squatting position over a floor-mounted pan. This arrangement is common in many Indian buildings and can suit users who prefer a squatting toilet.
Architectural considerations include the location of the pan, floor drainage and waterproofing, cleaning access, water supply for cleansing, and safe movement within the toilet.
2. Washdown water closet
A washdown WC uses flushing water to move waste from the bowl into the trap and drainage connection. Bowl geometry and the flushing system influence cleaning performance.
3. Siphonic water closet
A siphonic WC uses a bowl and trapway arrangement designed to produce a siphonic action during flushing. Product performance depends on the particular design and flushing mechanism; siphonic models should not automatically be assumed to be more efficient than washdown models.
4. Universal or accessible water closet
A universal WC is designed to improve usability for a broader range of users, including some people with reduced mobility. Accessibility depends on the complete toilet layout, including seat height, approach space, transfer space, grab bars, door operation, and controls—not just the toilet bowl.
5. Wall-hung water closet
A wall-hung WC is supported by a concealed or appropriately designed carrier system rather than resting directly on the floor. It can make floor cleaning easier and create a visually uncluttered appearance.
Before specifying it, coordinate the carrier frame, supporting wall or structure, cistern, drainage outlet, access panel, and maintenance requirements.
6. Floor-mounted water closet
A floor-mounted WC transfers its load to the floor and is available in multiple configurations, including close-coupled and one-piece products. It can be appropriate for new construction and renovation, subject to outlet and service compatibility.
Important architectural considerations for water closets
- Check the pan or bowl outlet configuration against the soil pipe location.
- Coordinate the water supply, cistern or flush valve, and isolation valve.
- Provide suitable privacy, ventilation, lighting, and cleaning access.
- Consider accessible layouts wherever required.
- Verify flushing performance, water consumption, dimensions, and applicable product standards before final selection.

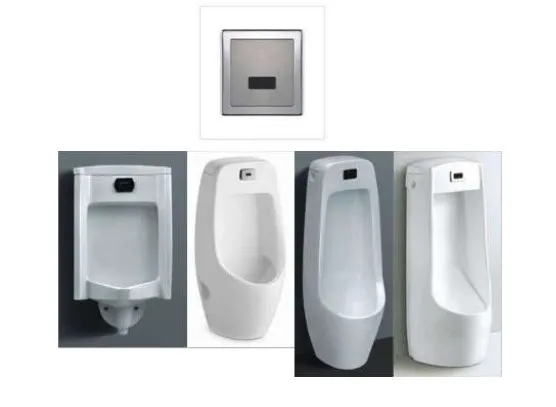

4.2 Urinal
A urinal is a sanitary appliance intended primarily for urination. It is commonly installed in public, commercial, educational, transport, and institutional toilets.
Types of urinals
- Bowl-type urinal: A single wall-mounted bowl, commonly available with flat-back or angled-back profiles.
- Slab or trough urinal: An elongated fixture that can serve multiple users.
- Stall-type urinal: A more individually defined urinal installation.
- Squatting urinal: A floor-level fixture designed for a squatting position in suitable contexts.
- Waterless urinal: A design that avoids routine flushing water by using a suitable outlet and odour-control arrangement.
- Sensor-operated urinal: A urinal using automatic flushing controls, where the model requires flushing.
A waterless urinal does not eliminate the need for drainage, cleaning, maintenance, or appropriate odour control. Its performance depends on the product design, installation, consumables where applicable, and maintenance regime.
Architectural application: In high-occupancy toilets, the number and arrangement of urinals should be coordinated with the required sanitary facility provision, privacy screens, circulation, cleaning access, drainage connections, and user needs.

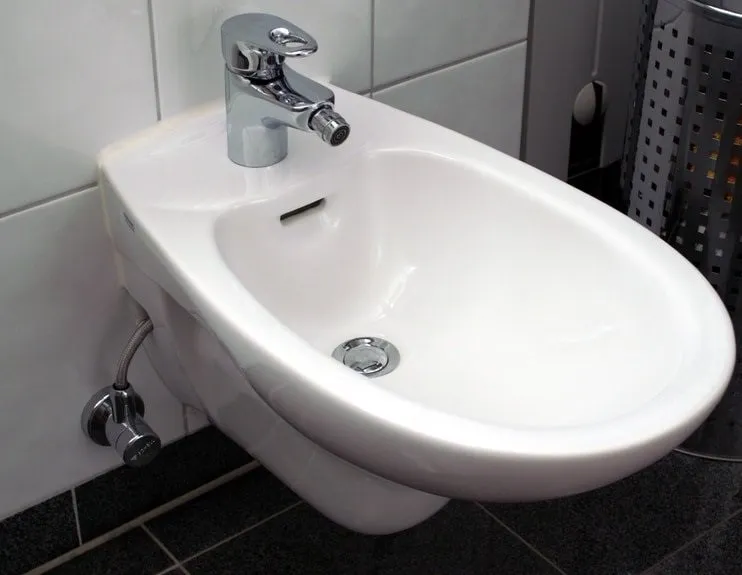

4.3 Bidet
A bidet is a sanitary appliance designed for personal cleansing with water. It may be floor-mounted, wall-hung, or integrated into another toilet system.
Bidets are commonly associated with residential and hospitality bathrooms. Depending on the product, they may require hot and cold water supplies, a mixer, and a suitable drainage connection.
Design considerations:
- Provide sufficient space between adjacent fixtures for comfortable use and cleaning.
- Coordinate the water supply and drainage before fixing the fixture location.
- Check compatibility with the selected toilet and bathroom layout.
- Consider alternative cleansing systems where space is limited, while following the manufacturer’s installation requirements.

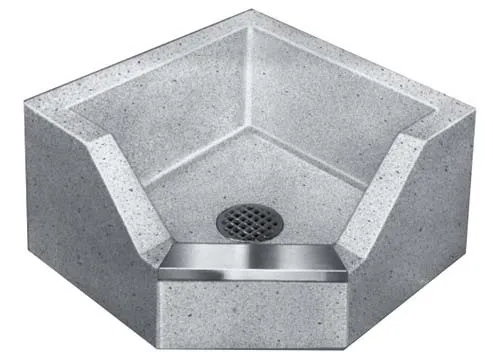

4.4 Slop sink
A slop sink is a deep service sink used for disposing of certain dirty liquids and cleaning equipment. In suitable installations, it may be used for housekeeping activities such as rinsing mop heads.
Slop sinks are commonly considered in janitor rooms, housekeeping areas, and selected service spaces. Healthcare facilities may require specialist fixtures and procedures for handling contaminated waste; a general-purpose slop sink should not be assumed suitable for every clinical function.
Architectural considerations: Allow adequate working space, splash protection, a suitable water supply, a compatible trap and drainage arrangement, and access for cleaning and maintenance.

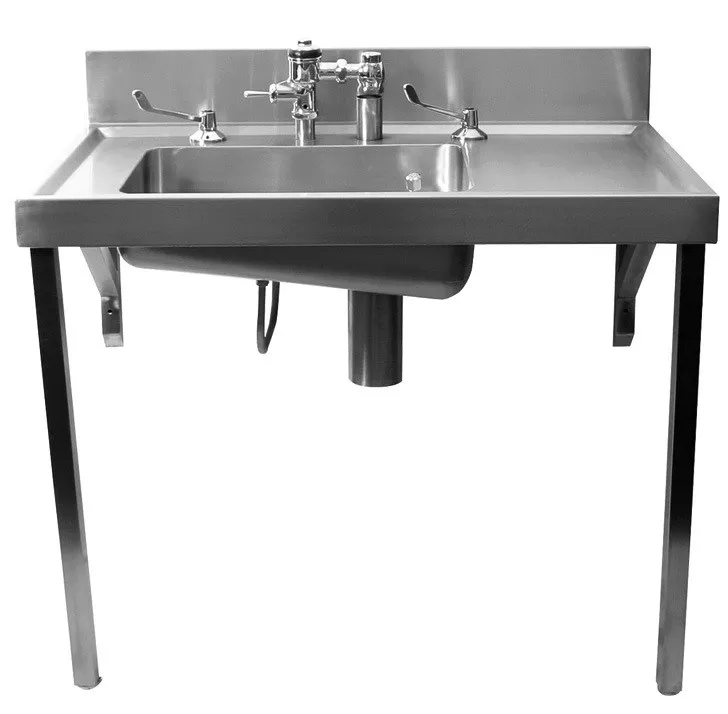

4.5 Bedpan washer, bedpan sink, and clinical hopper
Healthcare facilities may use specialist equipment for handling bedpans, urine bottles, and other patient-care vessels.
The terms bedpan washer, bedpan washer-disinfector, bedpan sink, and clinical hopper do not necessarily describe identical equipment. Their functions and required performance depend on the particular product and clinical workflow.
Planning considerations:
- Coordinate the fixture with the dirty utility or sluice-room layout.
- Follow the healthcare design brief and infection-prevention requirements.
- Confirm the manufacturer’s water, drainage, electrical, ventilation, and servicing requirements.
- Separate clean and contaminated workflows as required by the facility’s operating procedures.
5. Waste Appliances
Waste appliances primarily receive wastewater from handwashing, bathing, food preparation, and similar activities. Their drainage arrangements must be compatible with the intended use and applicable plumbing requirements.

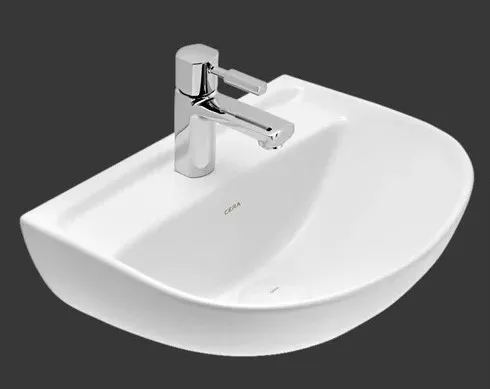

5.1 Washbasin
A washbasin is a fixture used for handwashing, face washing, and other personal hygiene activities. It is installed in residential bathrooms, public toilets, hotels, healthcare spaces, and many workplaces.
Types of washbasins
Pedestal washbasin: A basin supported by a pedestal that can conceal some plumbing connections. It is suitable for many conventional bathrooms but may restrict the usable space below the bowl.
Wall-mounted washbasin: Fixed to a suitable wall or support system. It can free up floor space, but the wall structure and fixing details must accommodate the fixture and expected loads.
Countertop or vessel basin: Installed on top of a counter or vanity. It offers flexibility in appearance and counter arrangement, but its height, splash behaviour, tap position, and cleaning requirements need attention.
Under-counter basin: Mounted below a countertop, creating a continuous counter surface around the bowl. The countertop material must be compatible with moisture exposure and the mounting arrangement.
Semi-recessed basin: Partly projects beyond the front edge of the counter, which can help where counter depth is restricted.
Accessible washbasin: Planned to provide appropriate approach, reach, knee clearance, and control access for users with disabilities. Final dimensions and clearances must follow the applicable accessibility provisions.
Design considerations for washbasins
- Coordinate basin height, tap position, mirror, lighting, and accessories.
- Check that the waste outlet, trap, and water supply fit within the vanity or wall arrangement.
- Use a suitable waterproof and moisture-resistant counter or surrounding finish.
- Allow sufficient spacing where several basins are installed together.
- Select taps and controls that suit the intended users and expected frequency of use.

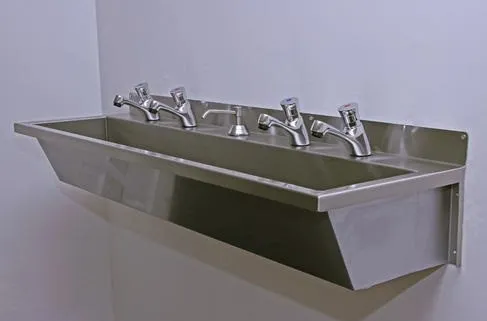

5.2 Wash-trough
A wash-trough is an elongated basin intended to allow several users to wash simultaneously.
Wash-troughs can be useful in schools, factories, sports facilities, staff changing rooms, and other buildings with concentrated washing demand.
Advantages
- Supports multiple users along a shared fixture.
- Can simplify the overall fixture arrangement.
- May reduce the number of individual basin units.
Limitations
- Simultaneous use may cause splashing and congestion.
- Cleaning and drainage must be planned along the trough’s length.
- The spacing and number of taps need to reflect expected use.
- Accessibility and privacy considerations still apply.

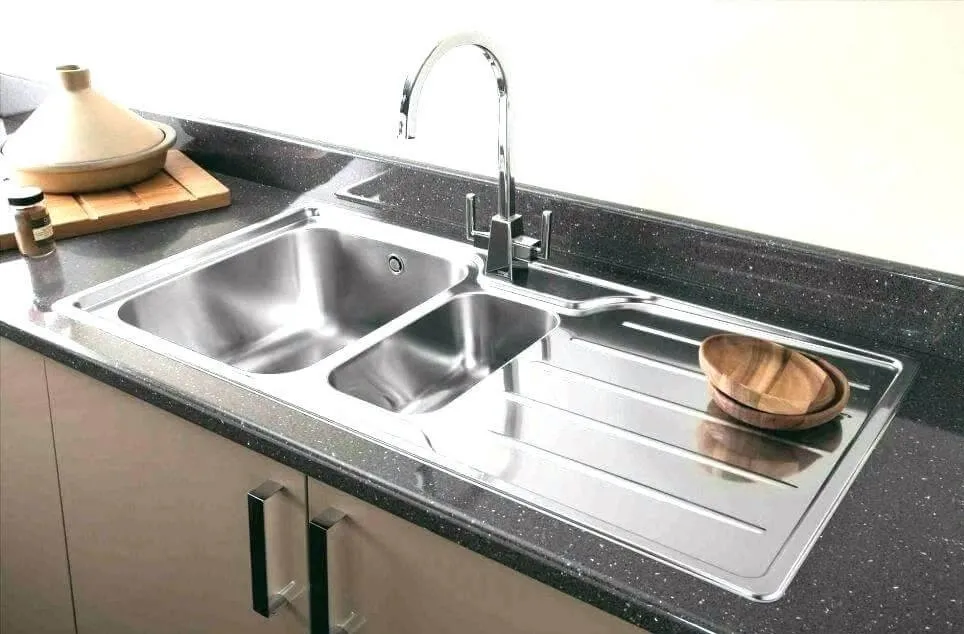

5.3 Kitchen sink
A kitchen sink is used for washing utensils, food preparation, and related cleaning activities.
Common types of kitchen sinks
- Single-bowl sink
- Double-bowl sink
- Top-mounted or drop-in sink
- Undermount sink
- Farmhouse or apron-front sink
- Integrated sink formed as part of a suitable countertop
The choice depends on counter dimensions, worktop material, food-preparation habits, cleaning requirements, and available plumbing space.
In commercial kitchens, sink provision must also be coordinated with food-safety workflows, equipment schedules, and applicable health requirements.
5.4 Laboratory sink
Laboratory sinks are used for washing equipment, glassware, and materials in laboratories or technical
Laboratory sinks should be selected according to the substances they may encounter, the cleaning procedures, and the laboratory’s intended function. Materials and waste-disposal arrangements must be appropriate to the anticipated chemicals and contaminants.
Do not assume that every laboratory sink can discharge directly into a normal sanitary drainage system. Special treatment, segregation, or disposal controls may be required by the facility’s design and applicable regulations.

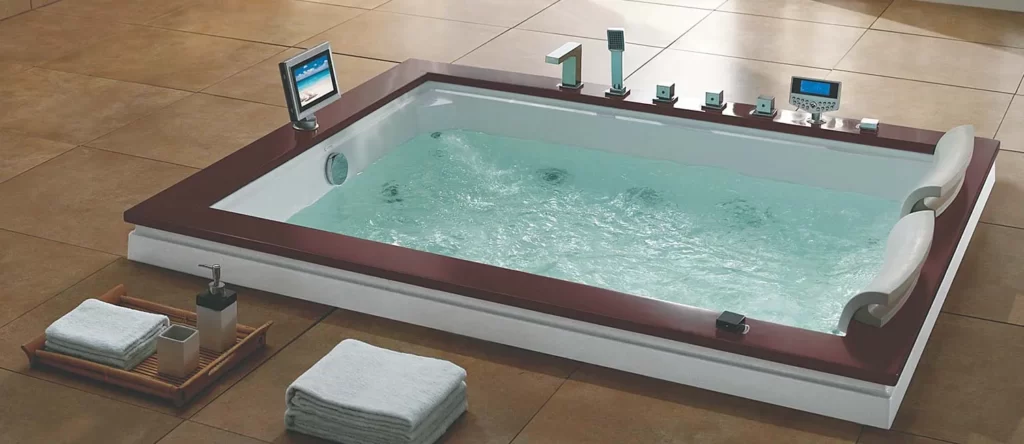

5.5 Bathtub
A bathtub is a sanitary appliance designed for bathing while seated or immersed in water.
Types of bathtubs
- Freestanding bathtub
- Built-in or recessed bathtub
- Alcove bathtub
- Corner bathtub
- Whirlpool bathtub, where suitable services and maintenance provisions are provided
Materials used for bathtubs
| Material | Advantages | Limitations |
|---|---|---|
| Acrylic | Relatively lightweight and available in varied shapes | Can scratch; product quality varies |
| Enameled steel | Hard, smooth finished surface | Can feel cold and may chip if damaged |
| Cast iron with enamel | Durable and substantial | Heavy; structural loading and installation need consideration |
| Fibreglass-reinforced plastic | Lightweight and adaptable to different forms | Finish and durability depend on product quality |
| Cast-in-situ construction | Can be tailored to the design | Requires careful waterproofing, finishing, and drainage detailing |
A bathtub should have an appropriate waste and overflow arrangement where required by the product design. Confirm the exact outlet sizes and installation requirements from the selected manufacturer’s documentation rather than relying on a universal dimension.
5.6 Shower receptor or shower tray
A shower receptor or tray collects shower wastewater and directs it towards a suitable drain. Some bathrooms use a prefabricated tray, while others use a site-constructed shower floor with a compatible waterproofing and drainage system.
Important design points:
- Coordinate the floor level, finished floor build-up, and drainage outlet.
- Provide a suitable fall towards the drain according to the selected system.
- Ensure waterproofing continuity at corners, walls, and penetrations.
- Avoid creating abrupt level changes where accessibility is important.
- Coordinate the drain position with floor tiles and the shower enclosure.

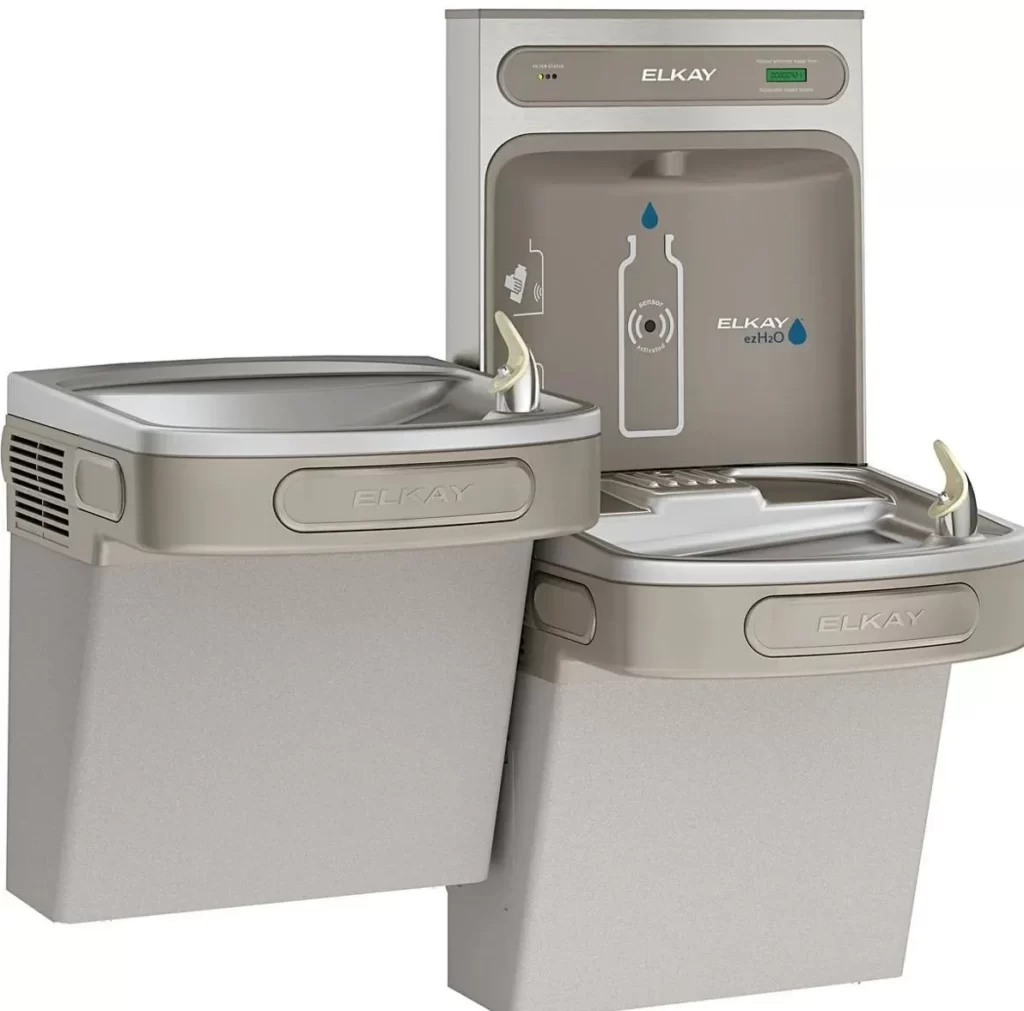

5.7 Drinking fountain
A drinking fountain supplies drinking water through an outlet designed for drinking directly or filling a vessel, depending on the model.
Drinking fountains are found in schools, offices, transport facilities, public buildings, and recreational spaces.
The design should consider hygienic operation, cleaning, water quality, drainage of incidental spillage, and accessible reach and approach. A drinking-water outlet must be connected to an appropriate potable-water supply and kept separate from non-potable systems.
6. Sanitary Appliances, Sanitary Fittings, and Accessories: The Difference
These terms are related but should not be used interchangeably in every context.
| Term | Meaning | Examples |
|---|---|---|
| Sanitary appliance | The main fixture used for washing, bathing, or receiving waste | WC, washbasin, urinal, sink |
| Sanitary fitting | A fitting associated with supplying, controlling, or discharging water from an appliance | Tap, mixer, flush valve, waste fitting |
| Sanitary accessory | An additional item supporting use, hygiene, storage, or convenience | Soap dispenser, towel rail, grab bar, toilet-paper holder |
| Plumbing component | A component of the water supply or drainage system | Pipe, trap, valve, connector, cleanout |
Terminology varies between product catalogues, technical specifications, and standards. For procurement and construction documentation, use clear item descriptions and identify the required performance and connections.
7. Materials Used for Sanitary Appliances
The material affects durability, cleaning, appearance, weight, corrosion resistance, cost, and maintenance. Material selection should reflect the fixture’s intended use and the manufacturer’s documented properties.
| Material | Main characteristics | Common applications |
|---|---|---|
| Vitreous china | Smooth, glazed, relatively non-porous surface | WCs, washbasins, urinals |
| Glazed fireclay | Ceramic body with glazed finish | Certain sinks and sanitary products |
| Stainless steel | Corrosion-resistant grades are available; robust for many service applications | Commercial sinks, service fixtures, drinking fountains |
| Enameled steel | Smooth enamelled surface | Selected bathtubs and sinks |
| Cast iron with enamel | Heavy and durable when properly manufactured and maintained | Selected bathtubs |
| Acrylic and reinforced polymers | Lightweight, formable, and available in different finishes | Bathtubs, shower trays, selected basins |
| Solid-surface materials | Can support integrated forms and seamless-looking finishes | Vanity basins and countertops |
| Natural or engineered stone | High design flexibility, but weight, sealing, and moisture compatibility matter | Selected basins and bespoke fixtures |
Practical recommendation: Do not select a fixture solely by its appearance or material name. Check its intended application, finish quality, cleaning requirements, compatibility with the water and drainage system, relevant product standard, warranty, and availability of replacement parts.
8. Architectural Planning and Design Considerations
Sanitary appliances occupy a small portion of a building’s floor area but can significantly influence circulation, privacy, accessibility, service coordination, and daily usability.
8.1 Space planning and circulation
Before fixing a fixture location, consider:
- The number and type of users.
- The building occupancy and functional requirements.
- Door swings and movement routes.
- Space required to approach, use, and clean each fixture.
- Privacy screens and separation between activities.
- The placement of mirrors, taps, dispensers, grab bars, and other accessories.
- Cleaning equipment and maintenance access.
For public and institutional buildings, the number of fixtures must be established from the applicable occupancy, building-use, and regulatory requirements. Do not use a single generic fixture ratio for every building.
8.2 Accessibility and inclusive design
Accessible toilet design requires a coordinated layout rather than simply the installation of a larger WC.
Depending on the applicable accessibility requirements, the design may need to address:
- A continuous, usable approach route.
- Adequate manoeuvring and transfer space.
- Suitable WC and washbasin positions.
- Grab bars and accessible controls.
- Door width, opening direction, and hardware.
- Visual contrast, lighting, and clear identification.
- Reachable accessories and emergency assistance provisions where required.
Verify the applicable Indian accessibility guidance, local building regulations, and project-specific requirements before fixing dimensions.
8.3 Plumbing and MEP coordination
A sanitary fixture layout should be coordinated with architectural, plumbing, structural, electrical, and other relevant drawings.
The coordination process should confirm:
- Water supply: Pipe routing, connection points, shut-off valves, and pressure requirements.
- Waste and soil drainage: Outlet positions, traps, pipe routing, gradients where applicable, and access for maintenance.
- Structure: Slab openings, wall supports, concealed carriers, and restrictions on drilling or cutting structural elements.
- Waterproofing: Junctions at floors, walls, shower trays, and service penetrations.
- Maintenance: Access to concealed cisterns, valves, traps, and serviceable components.
- Ceiling and shaft coordination: Drainage routes, ventilation pipes, service shafts, and conflicts with other MEP installations.
The architect should not independently finalise plumbing pipe sizes or structural openings without the responsible engineer’s calculations and coordinated drawings.
8.4 Water efficiency
Water efficiency should be evaluated at the fixture and system level. Options include:
- Dual-flush water closets.
- Efficient flush valves and cisterns.
- Suitable flow-controlled taps.
- Sensor-operated fittings where appropriate.
- Waterless urinals in suitable applications.
- Maintenance strategies to identify leaks and malfunctioning controls.
Automatic operation does not automatically mean lower water consumption. Performance depends on the product, settings, use patterns, maintenance, and the actual supply and drainage conditions.
For projects in India, consult the relevant Bureau of Indian Standards (BIS) product specifications and applicable local requirements. BIS lists standards covering vitreous china sanitary appliances, flushing cisterns, urinals, and water-efficient plumbing products.
BIS
+2
8.5 Hygiene and maintenance
Good sanitary planning makes cleaning and repair practical.
- Avoid inaccessible corners and unnecessary ledges that collect dirt.
- Select finishes compatible with the cleaning products expected to be used.
- Ensure that traps, valves, and serviceable components can be reached.
- Provide suitable ventilation in toilets and bathrooms.
- Follow manufacturer instructions for cleaning and preventive maintenance.
- For healthcare facilities, follow the relevant infection-prevention and specialist-equipment requirements.
9. Advantages of Selecting Appropriate Sanitary Appliances
Well-selected sanitary appliances can:
- Improve hygiene and everyday user comfort.
- Support efficient use of bathroom and service space.
- Reduce avoidable water consumption when efficient products are properly installed and maintained.
- Improve accessibility when coordinated with an inclusive layout.
- Simplify cleaning and routine maintenance.
- Complement the architectural character of the interior.
- Reduce installation conflicts when selected before plumbing and construction drawings are finalised.
These benefits depend on suitable product selection, installation, use, and maintenance rather than on the fixture alone.
10. Common Challenges and Mistakes
Mistake 1: Selecting fixtures before checking plumbing connections
A visually suitable WC or basin may not match the available outlet, pipe location, or service arrangement.
Better approach: Confirm dimensions, outlet type, water supply, trap, and installation requirements before finalising the specification.
Mistake 2: Treating all toilets as standard layouts
Residential, public, accessible, and healthcare toilets have different functional and operational requirements.
Better approach: Establish the user group, occupancy, accessibility provisions, privacy, and maintenance requirements at the planning stage.
Mistake 3: Ignoring maintenance access
Concealed cisterns and wall-hung fixtures may require access to valves, flush mechanisms, or supporting systems.
Better approach: Coordinate access panels and serviceability with the architectural finish.
Mistake 4: Choosing a fixture by appearance alone
An unsuitable material, difficult-to-clean profile, or incompatible product can create maintenance problems.
Better approach: Evaluate performance, installation, cleaning, durability, and replacement availability alongside appearance.
Mistake 5: Assuming every water-saving product performs equally
Flow rates, flush volumes, controls, and operating conditions vary between products.
Better approach: Compare documented performance and verify the relevant standards and project requirements.
Mistake 6: Overlooking waterproofing and floor levels
Poor coordination at shower drains, WC connections, and concealed pipe penetrations can cause leakage or difficult-to-correct level differences.
Better approach: Detail waterproofing and drainage junctions before construction and coordinate them with the finished floor level.
11. Practical Applications in Different Building Types
| Building type | Typical sanitary appliances | Key planning priority |
|---|---|---|
| Residential | WC, washbasin, shower, sink, optional bathtub or bidet | Comfort, privacy, space efficiency, maintenance |
| Office | WCs, urinals where appropriate, washbasins, accessible toilets | Occupancy, circulation, durability, cleaning |
| School | WCs, washbasins, selected troughs and drinking fountains | Age-appropriate use, supervision, hygiene, accessibility |
| Hospital | WCs, washbasins, clinical fixtures, specialist bedpan equipment | Infection prevention, clinical workflows, accessibility |
| Hotel | WCs, washbasins, showers, bathtubs and selected bidets | User comfort, durability, serviceability, appearance |
| Industrial building | WCs, washbasins, showers, service sinks as required | Workforce needs, cleaning, robust materials, operational safety |
| Public transport facility | WCs, urinals, washbasins, drinking fountains where appropriate | High occupancy, durability, maintenance, inclusive access |
The final fixture schedule should be prepared from the project’s functional brief, applicable building regulations, and coordinated design requirements.
12. Standards and Technical References for Indian Projects
Sanitary appliances and their installation should be specified with reference to the relevant current standards and applicable building regulations.
Useful starting points include:
- IS 2064:1993: Selection, Installation and Maintenance of Sanitary Appliances — Code of Practice (Second Revision). The BIS listing identifies this as a code of practice for selection, installation, and maintenance. Confirm its current status and any subsequent amendments or replacement before relying on it for a project.
Bureau of Indian Standards+1
- IS 2556 series: Specifications for vitreous china sanitary appliances, with different parts covering particular appliance types and requirements. Confirm the relevant part and current edition for the specified product.
BIS+1
- IS 774:2021: Ceramic (Vitreous China) Flushing Cisterns for Water Closets and Urinals — Specification, Sixth Revision.
- IS 17650 (Part 1):2021: Water Efficient Plumbing Products — Requirements: Part 1, Sanitaryware, as listed in the BIS standards information retrieved for this article. Verify current status before specification.
Always check the current edition, applicability, amendments, product certification requirements, local building bye-laws, and the project’s governing codes. A product standard is not a substitute for a complete plumbing design.
13. Conclusion
Sanitary appliances are fundamental to the functional performance of buildings. Water closets, urinals, bidets, washbasins, sinks, bathtubs, shower receptors, drinking fountains, and specialist service fixtures each fulfil different needs.
For architects, successful selection requires the coordination of function, dimensions, material, accessibility, hygiene, water efficiency, drainage, and maintenance. The best appliance is not necessarily the most expensive or visually striking one; it is the one that suits the building, its users, its services, and its long-term operation.
A coordinated fixture schedule, clear architectural details, and early communication with plumbing and structural consultants can prevent avoidable site conflicts and support a more usable, maintainable building.
